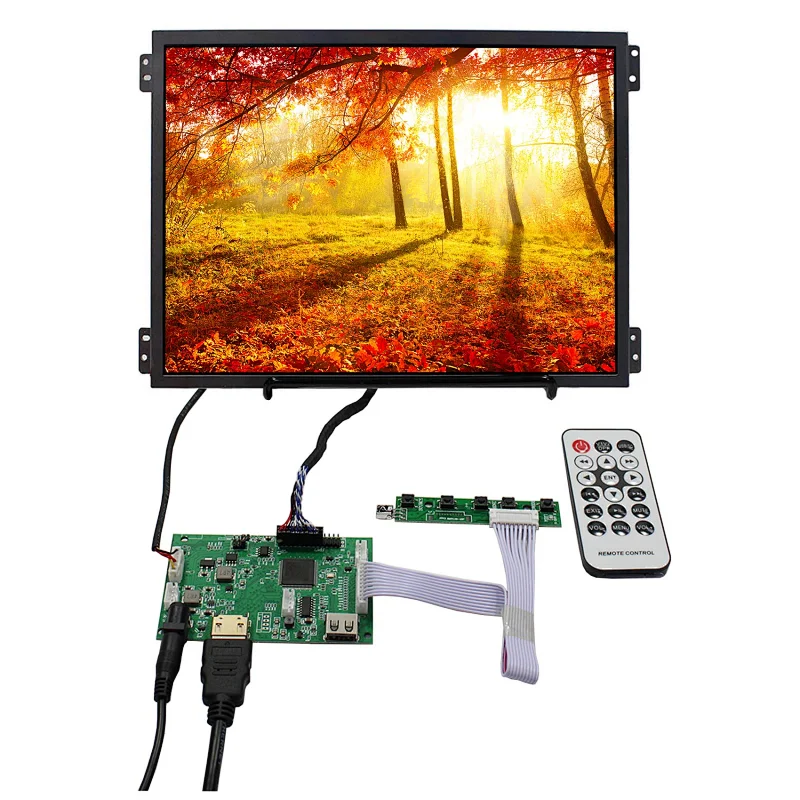

HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit
HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit

HDMI USB LCD Controller Board With 10.4 inch VS104T 004A 1024x768 IPS LCD Screen 600nit

Model NO.
K002873 VS-TY2660HU-823+VS104T-004A
Quantity:

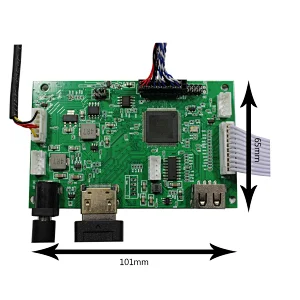

LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HDMI: Support HDMI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm
10.4"VS104T-004A  1024X768 LCD Screen:
Replacement screen for G104XVN01.0,G104X1-L03
Display Mode  IPS Pro, Normally Black, Transmissive
Resolution 1024×768
Outline Size 227.00×175.80×7 (H×V×D)
Display Area 210.43 × 157.824 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

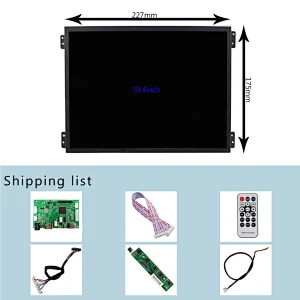

Packing list :
1× HDMI LCD Board for 30Pin VS-TY2660HU-823
10.4inch VS104T-004 1024X768 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
