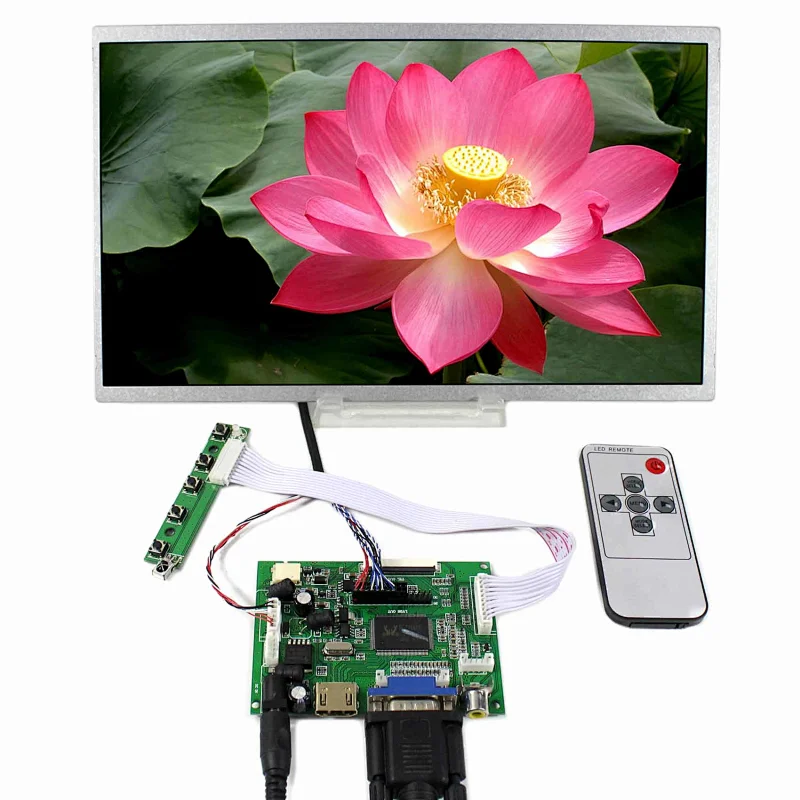

11.6" 1366x768 N116B6 LP116WH1 B116XW02 LCD Screen with HDMI VGA 2AV LCD Controller Board

Model NO.
K000315 VS-TY2662-V1 + N116B6 LP116WH1 B116XW02 LTN116AT01
Quantity:
LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
11.6"B116XW02/N116B6/LP116WH1 1366X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1366RGB)×768
Outline Size 268 × 161.5×5.2(H×V×D)
Display Area 256.125× 144 (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 40 pins , Connector

Backlight  WLED
Input Voltage  3.3V (Typ.)

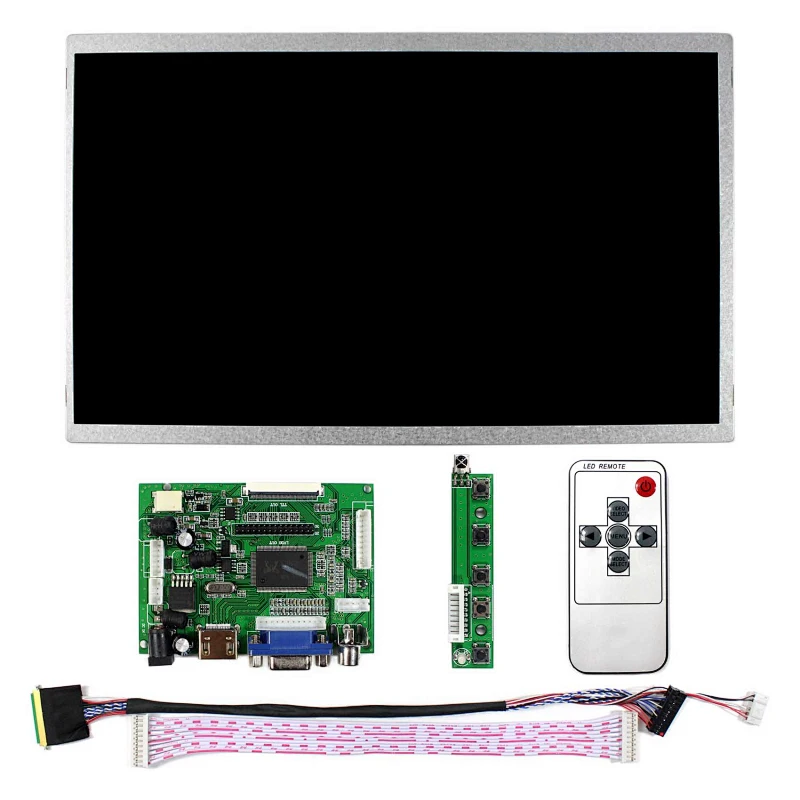

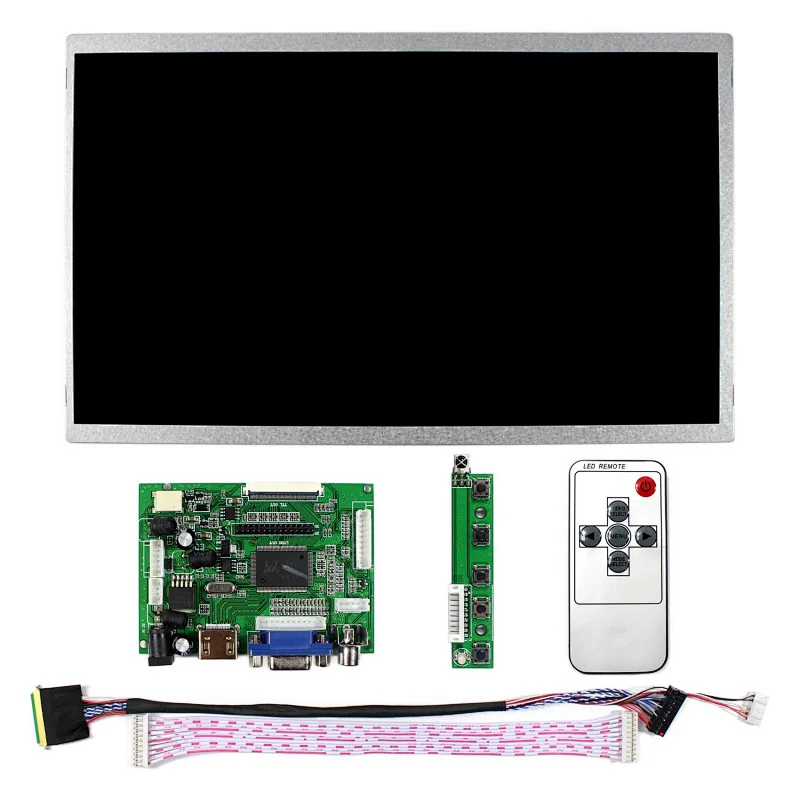

Packing list :
 HDMIVGA+2AV LCD Controller Board VS-TY2662-V1

11.6inch 1366X768 LCD Screen

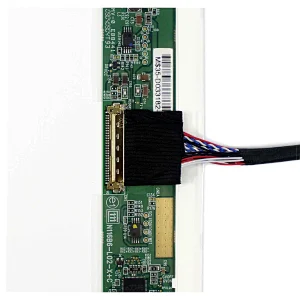

 LVDS Cable
 Keyboard With Cable
1× Remote Control(Battery Not included)
