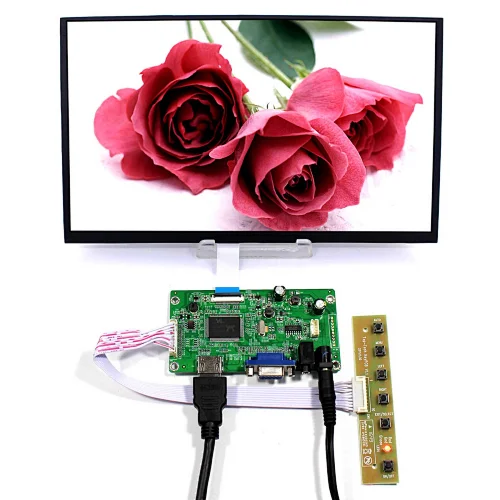

11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board

11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K000903-M.NT68676+11.6inch N116HSE-EJ1
Quantity:

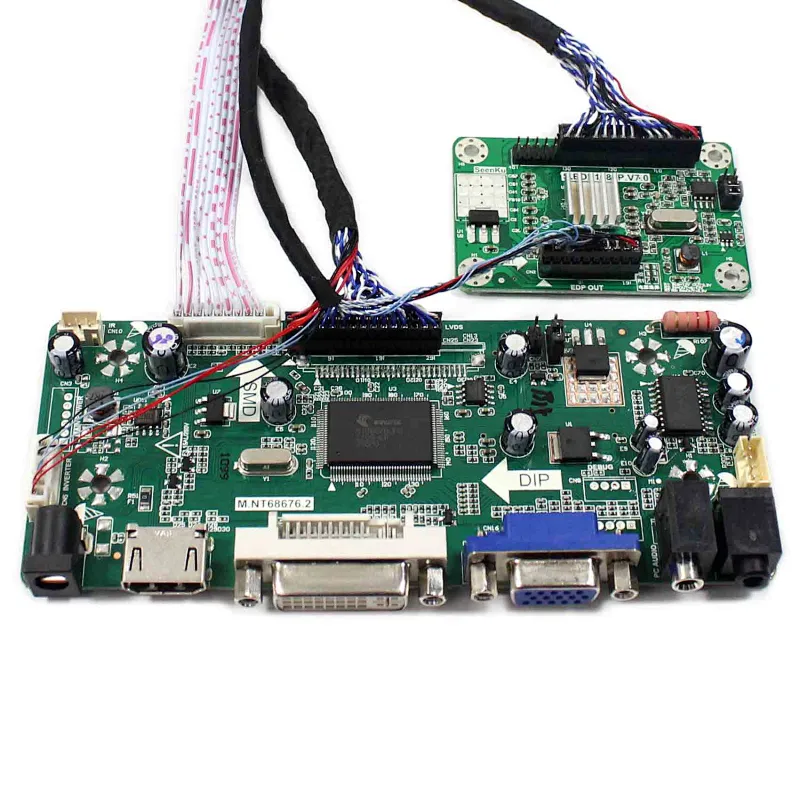

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
11.6"LCD Screen N116HSE-EJ1 EA1:
Display Mode  AAS, Normally Black, Transmissive

Resolution 1920RGB)×1080
Outline Size 268 × 156.9 × 2.5 (H×V×D)
Display Area 258.32 × 146.18 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)
Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676

1×11.6inch N116HSE-EJ1/EA1 1920X1080 IPS LCD Screen
1× eDP to LVDS Converter Board
1× Signal Cable
1× Keyboard With Cable
