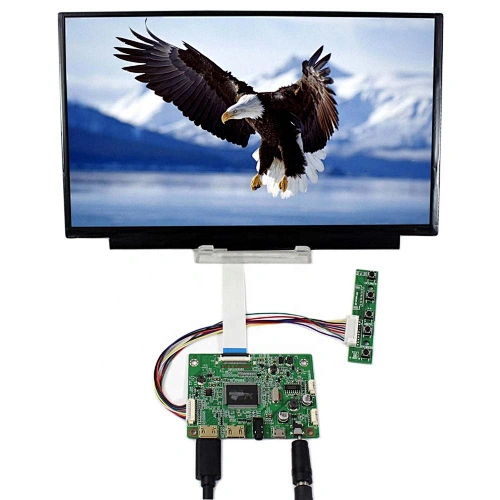

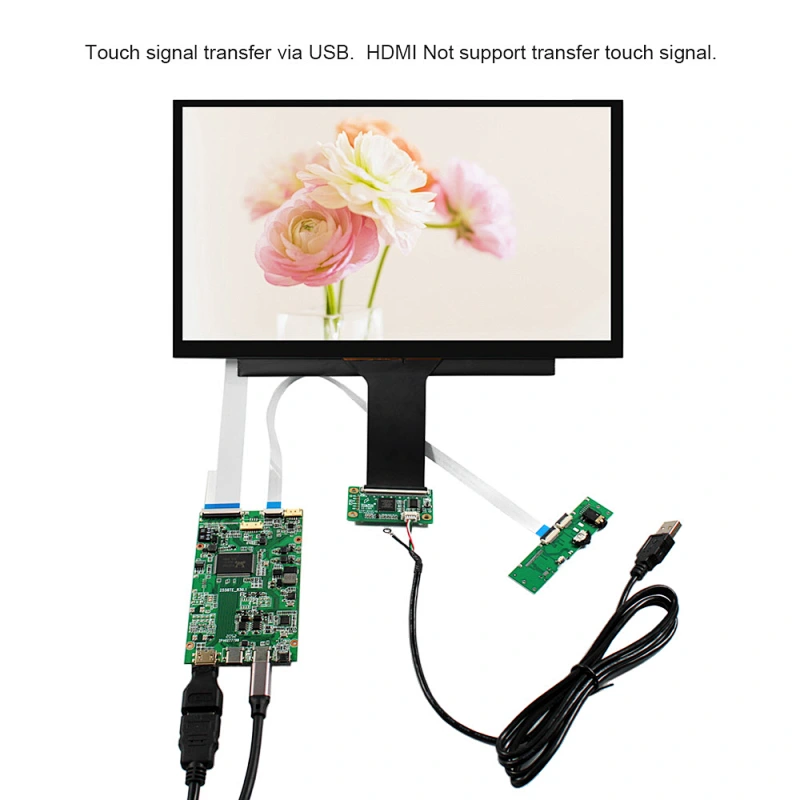

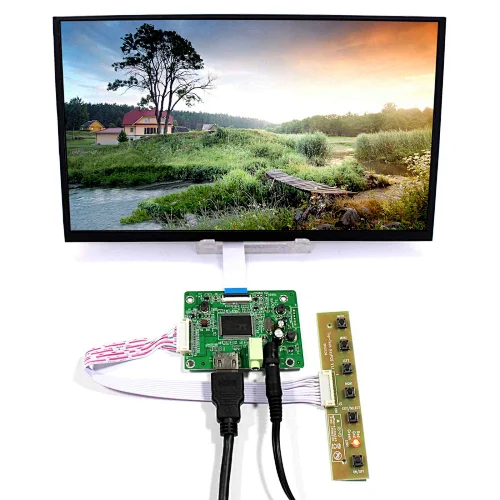

11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board
11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board

11.6inch eDP 1920X1080 IPS LCD Screen Capacitive Touch Panel with HD-MI TYPE-C LCD Controller Board

Model NO.
K003029 VS-RT2556T2K-40pin +11.6 N116HSE 1920x1080
Quantity:

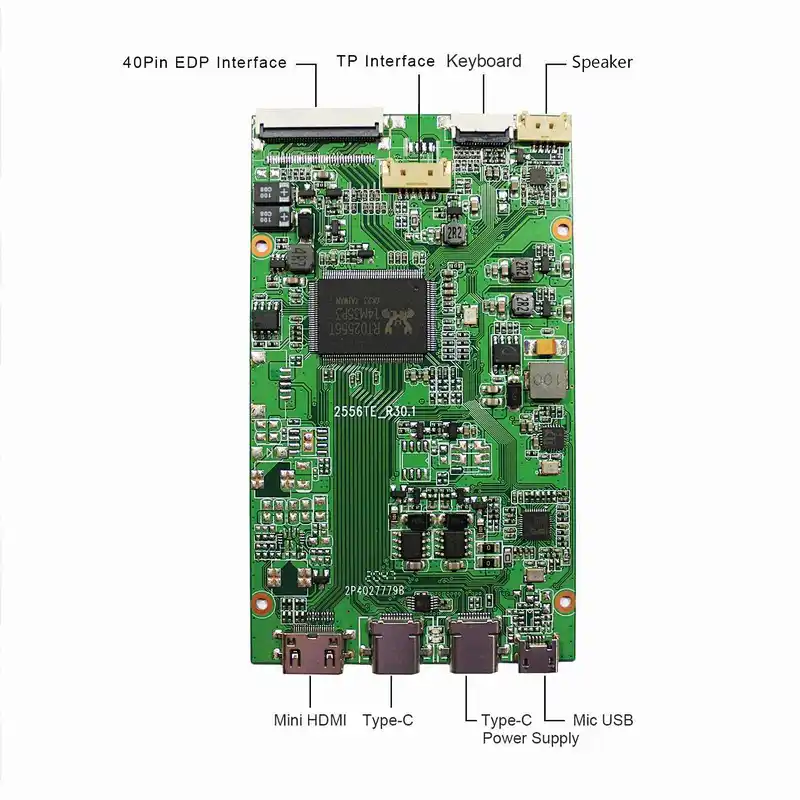

LCD Controller Board:
HD-MI Type C Control Board Work for eDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W

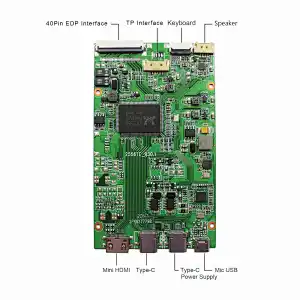

Input: Type-C Mini HD-MI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese

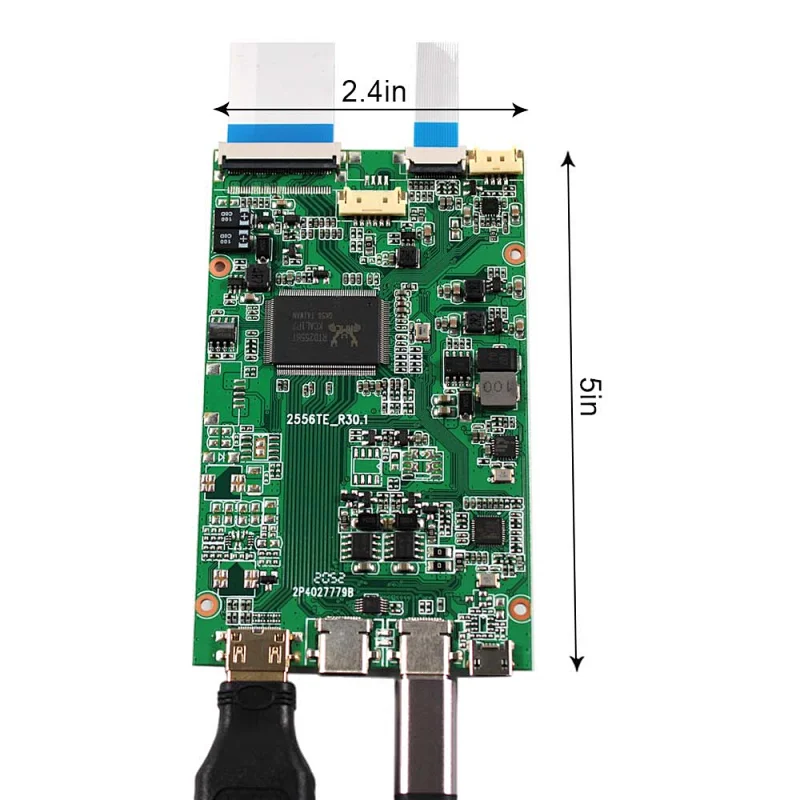

Board Size: 126mm x 60mm x 4mm
11.6"LCD Screen N116HSE-EJ1 EA1:
Display Mode AAS, Normally Black, Transmissive
Resolution 1920(RGB)×1080
Outline Size 268 × 156.9 × 2.5 (H×V×D)
Display Area 258.32 × 146.18 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

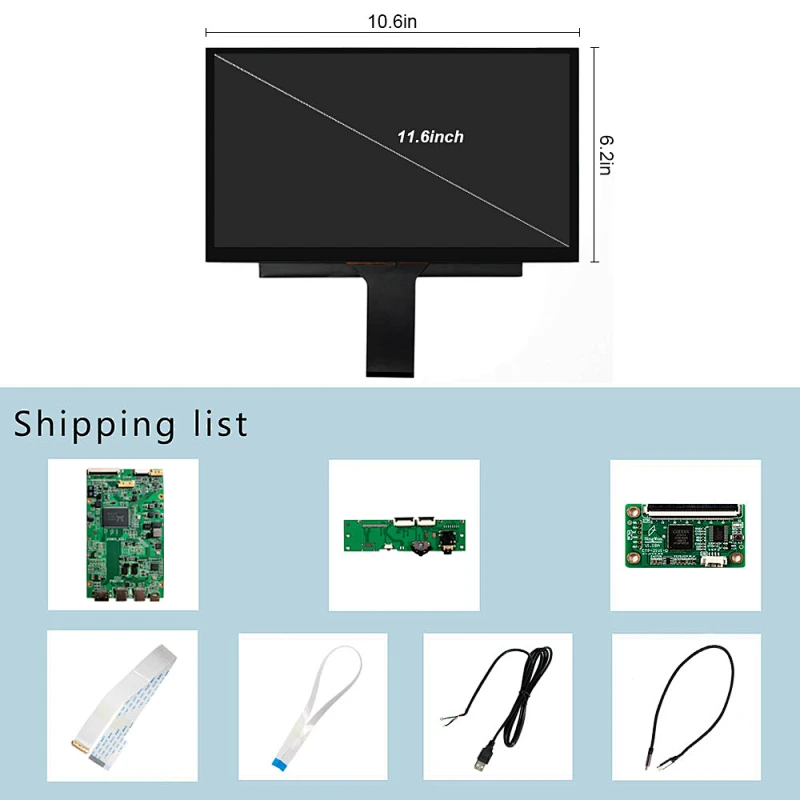

Packing list:
1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1×11.6inch eDP 1920X1080 IPS LCD With Capacitive Touch Panel
1x USB Cable
1× Signal Cable
1× Keyboard With Cable
