12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board
12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board

12.1inch LQ121K1LG52 1280x800 LCD Screen With HDM I VGA AV Audio USB LCD Controller Board

Model NO.
K002919-VS-V59AV-V2 AV+LQ121K1LG52
Quantity:
LCD Controller Board:
HD-MI VGA AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HD-MI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And BNC
Video Input: HD-MI VGA  AV USB
Audio Input: HD-MI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm
12.1"LQ121K1LG52 1280X800 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 278× 184×9.6 (H×V×D)
Display Area 216.12 × 163.2 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/65/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

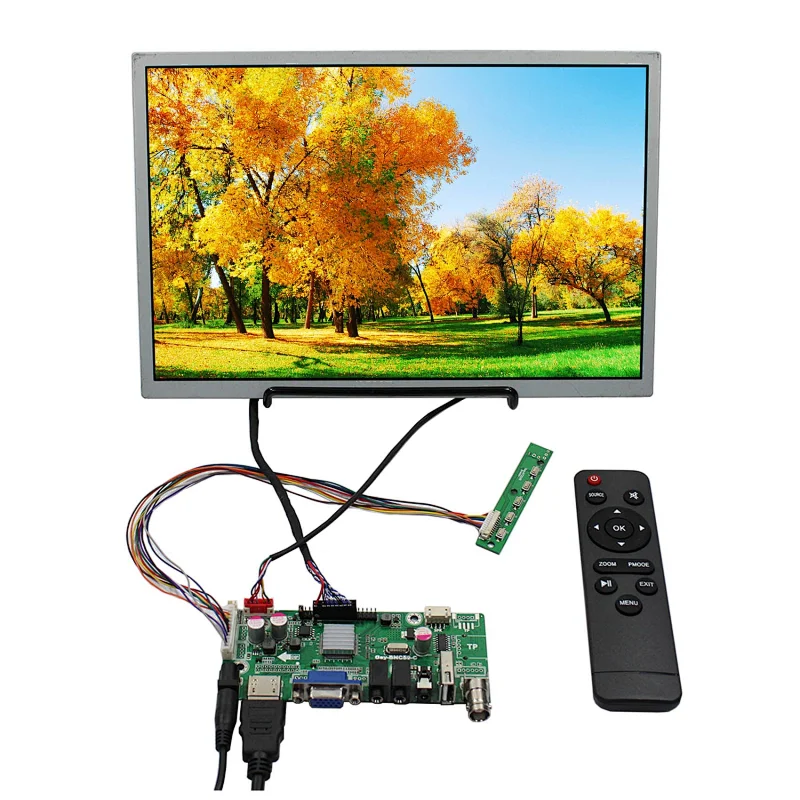

Packing list :
 HD-MI+VGA+AV+USB LCD Controller Board VS-V59AV-V2
1× 12.1inch LQ121K1LG52 1280X800 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control
