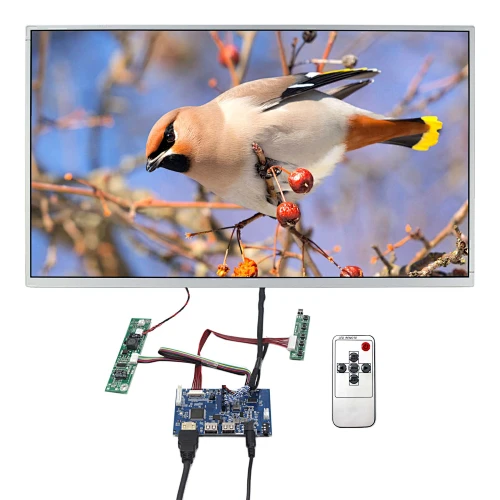

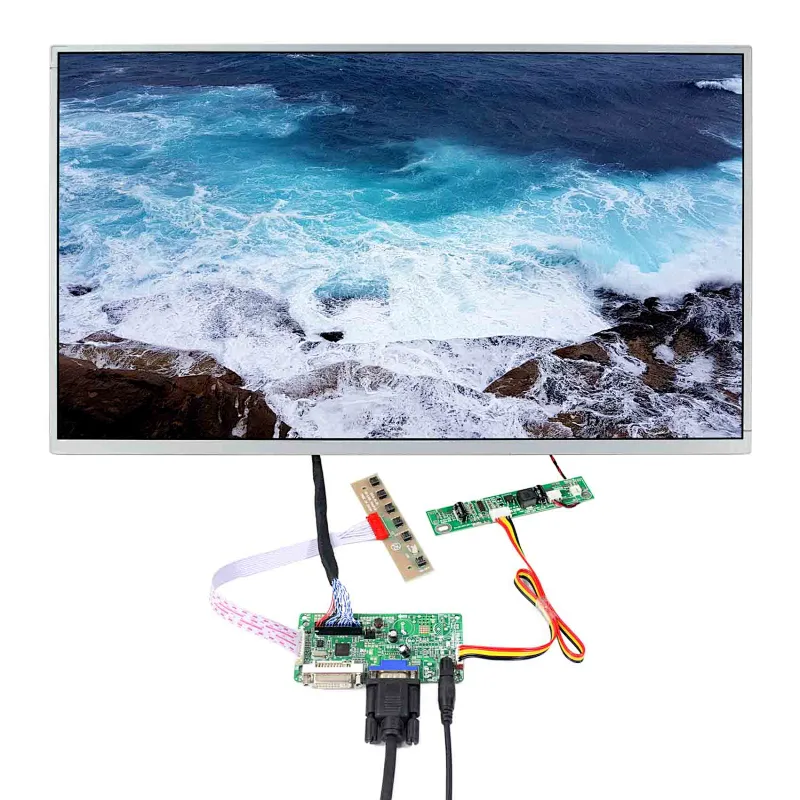

23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use
23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use

23.8inch 1920X1080 MV238FHM LCD Display with DVI VGA LCD Controller Board for DIY Monitor Use

Model NO.
K002134 RT2281+MV238FHM-N10
Quantity:

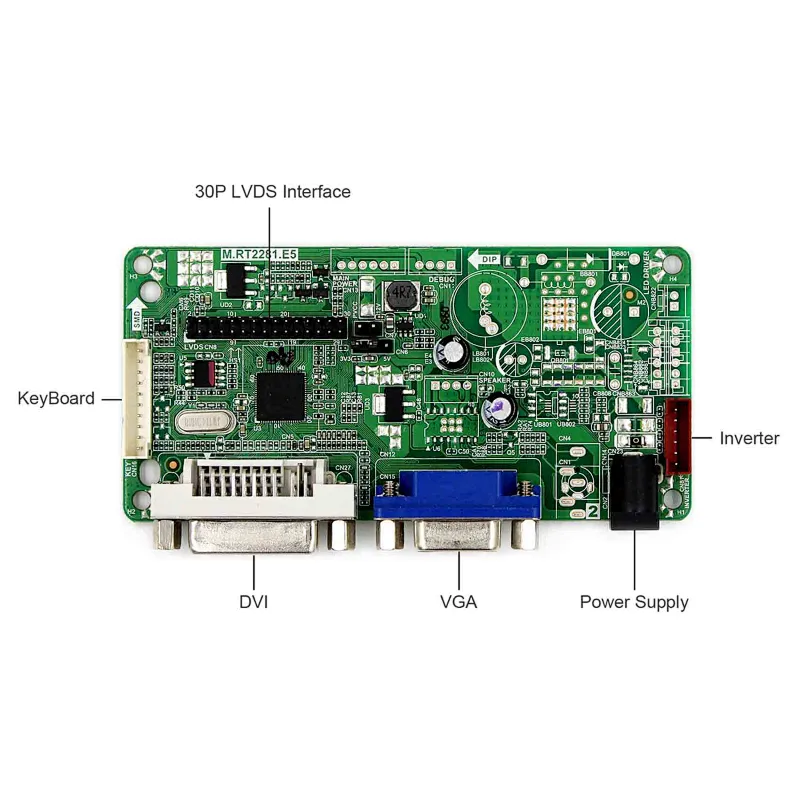

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
23.8" MV238FHM 1920X1080 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 543 ×317.4×11.4 (H×V×D)
Display Area 527.04 ×296.46(H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

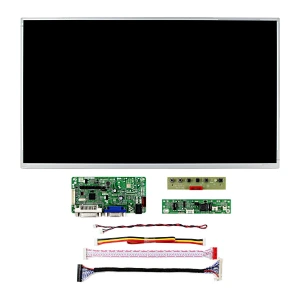

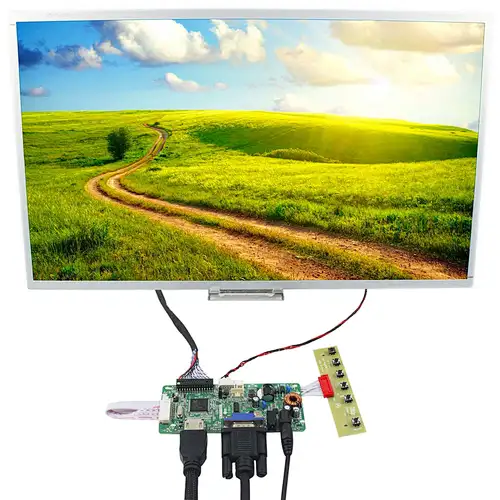

Packing list :

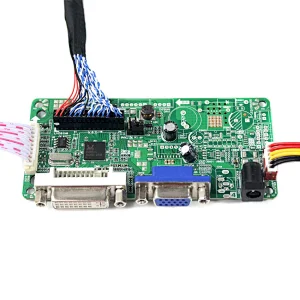

 VGA+DVI LCD Controller Board RT2281
 23.8inchMV238FHM-N10 1920X1080IPSLCD Screen

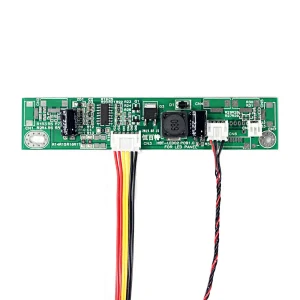

 Inverter Board
 LVDS Cable

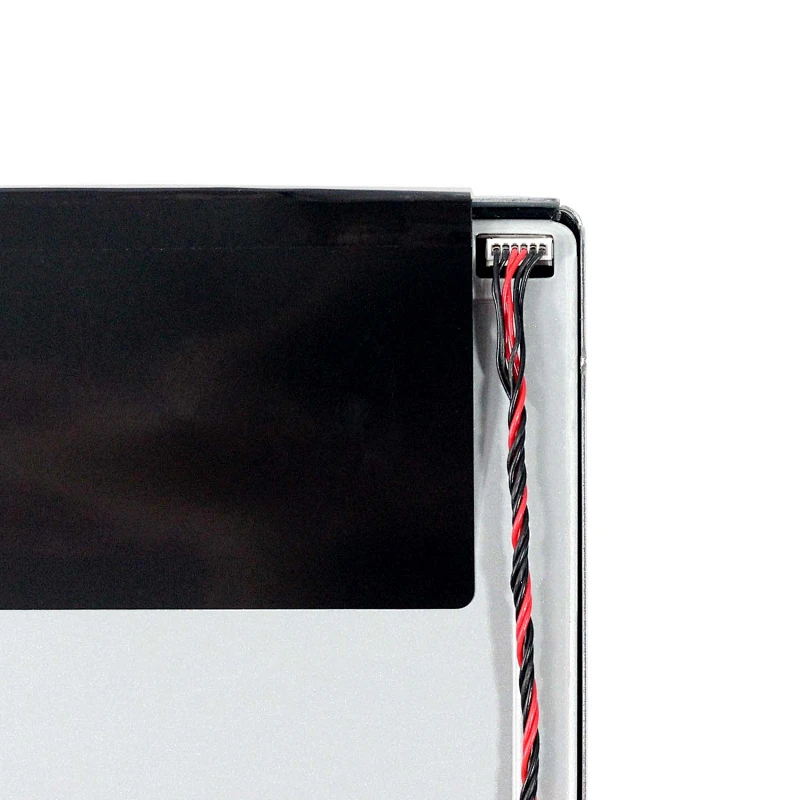

 Backlight Cable
 Keyboard With Cable
