21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board
21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board

21.5inch HR215WU1-120 1920X1080 FHD IPS LCD Screen Type-C HDM I USB LCD Controller Board

Model NO.
K002694-VS-JRY-W3AFHD-DV1 ype-c +HR215WU1-120
Quantity:

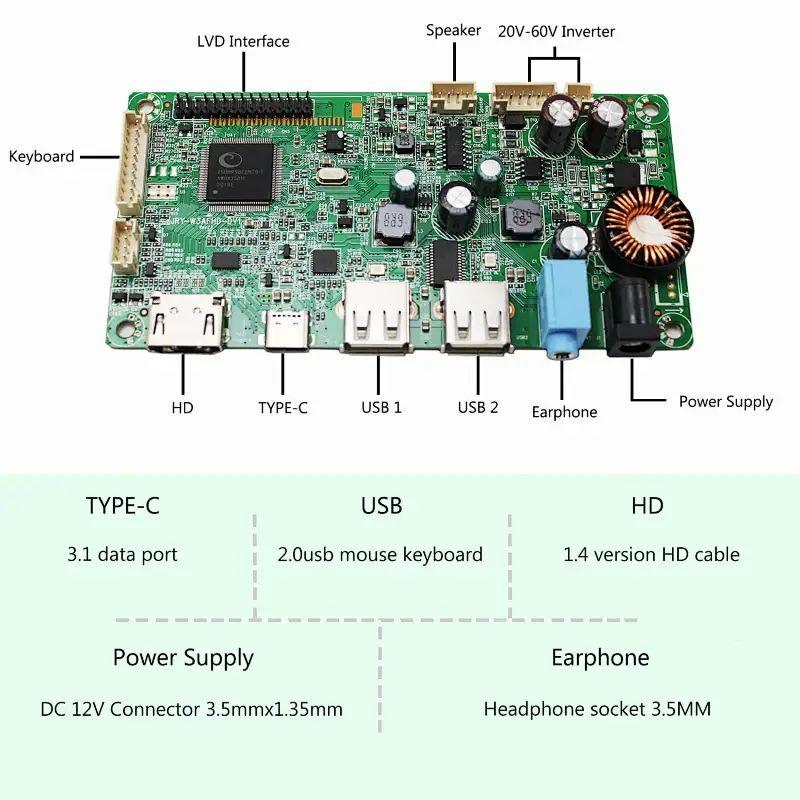

LCD Controller Board:
HD-MI Type-C  USBx2  AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc+/-0.5v More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI Type-C  USBx2
Audio Input: HD-MI Type-C
Audio Output: Speaker Connector  headset
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

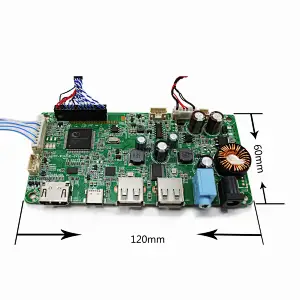

Board Size: 120mm x 60mm x 17mm

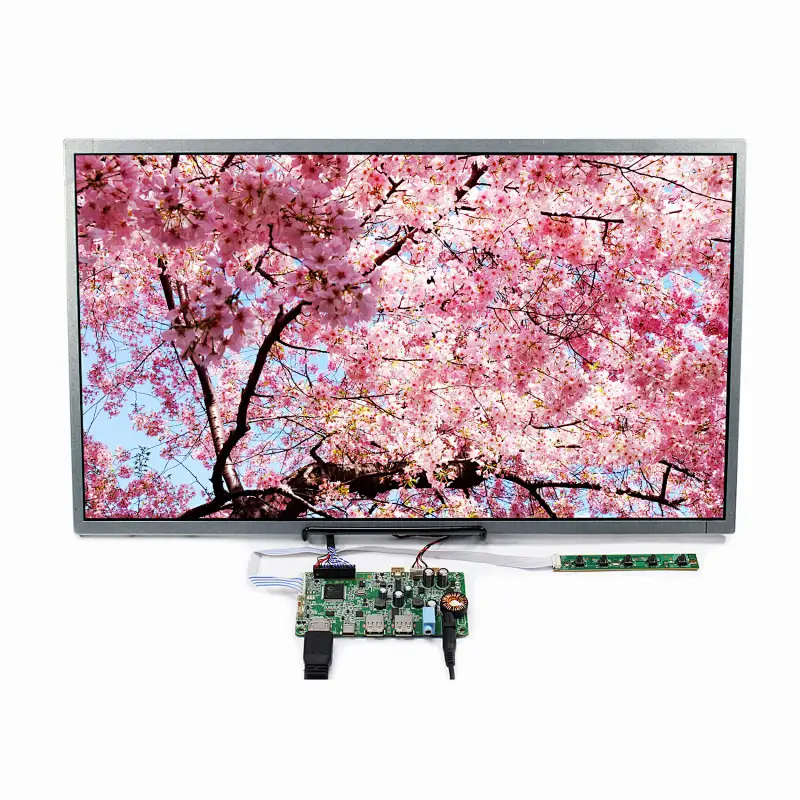

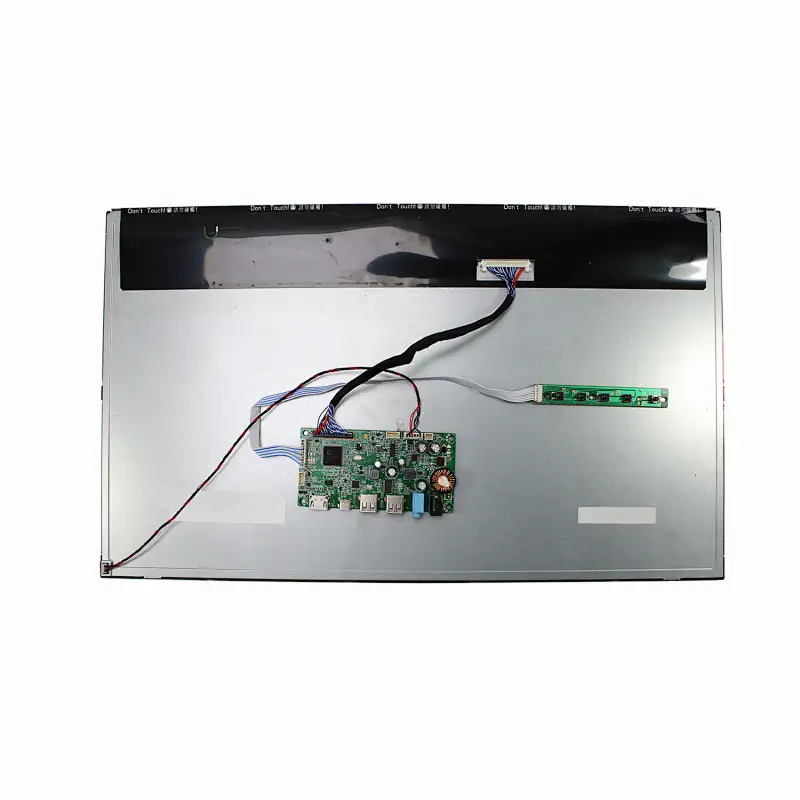

21.5" HR215WU1 1920X1080 LCD Screen:
Display Mode  FFS, Normally Black, Transmissive
Resolution 1920RGB)×1080

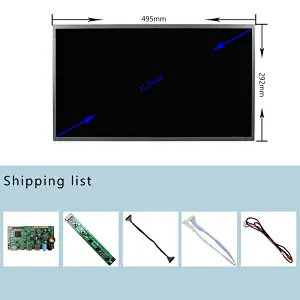

Outline Size 495.6 ×292.2×11.3 (H×V×D)
Display Area 467.64 ×268.11 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)
Packing list :
1× HD-MI Type-C  USBx2  AUDIO LCD Board Work for LVDS Interface LCD Screen
 21.5inchHR215WU1-120 1920X1080IPSLCD Screen
 LVDS Cable
 Backlight Cable
 Keyboard With Cable
