HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel
HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel

HD-MI VGA AV USB LCD Controller Board with 19inch M190CGE-L23 1440X900 LCD Screen for PC Display Panel

Model NO.
K002129-T.SK105A.03+M190CGE-L23 1440X900
Quantity:
LCD Controller Board:
HD-MI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HD-MI Port Support Transform Audio Compatible With HD-MI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HD-MI VGA AV USB RF
Audio Input: HD-MI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

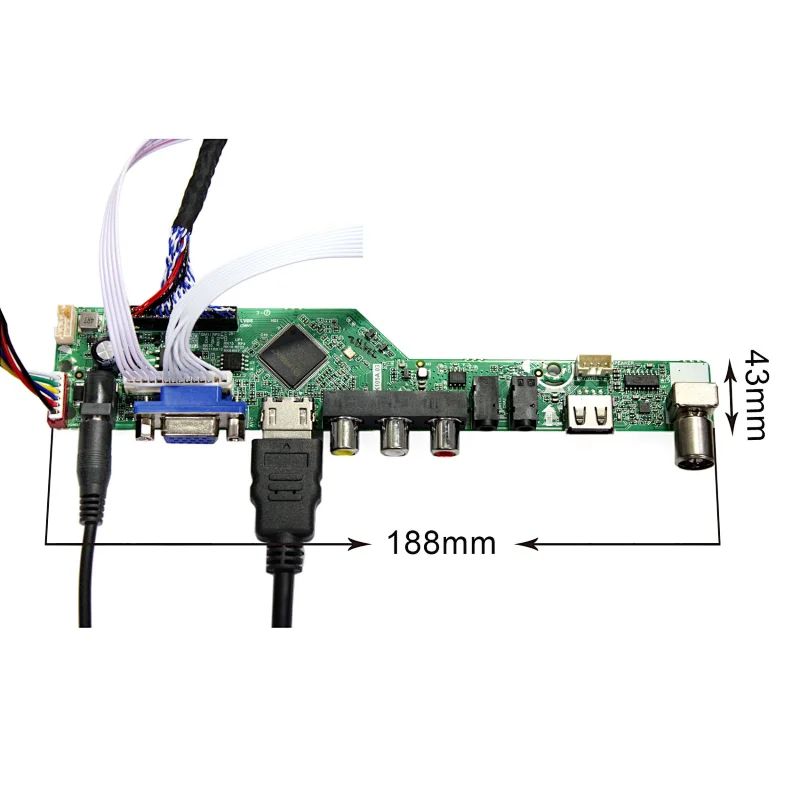

Board Size: 188mm x 43mm x 17mm
19" 1440X900 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1440RGB)×900
Outline Size 428 × 278×11 (H×V×D)
Display Area 408.2 × 255.1 (H×V)
Brightness300 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) ,30 pins ,Connector
Backlight WLED
Input Voltage 5.0V (Typ.)

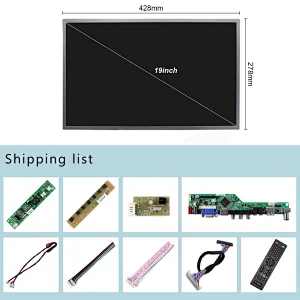

Packing list:
1× HDMI VGA AV USB RF LCD Controller Board T.SK105A.03-P
19inch 1440X900 LCD Screen
 Converter Board
 30PinLVDS Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
