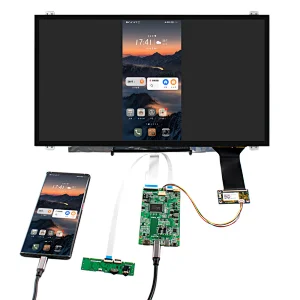

17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board
17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board

17.3inch 1920X1080 IPS LCD Laptop Screen Capacitive Touch Panel with Type C HDMI LCD Controller Board

Model NO.
K003033-VS-RT2556T2K-40pin +17.3 N173HCE-E31 1920x1080
Quantity:

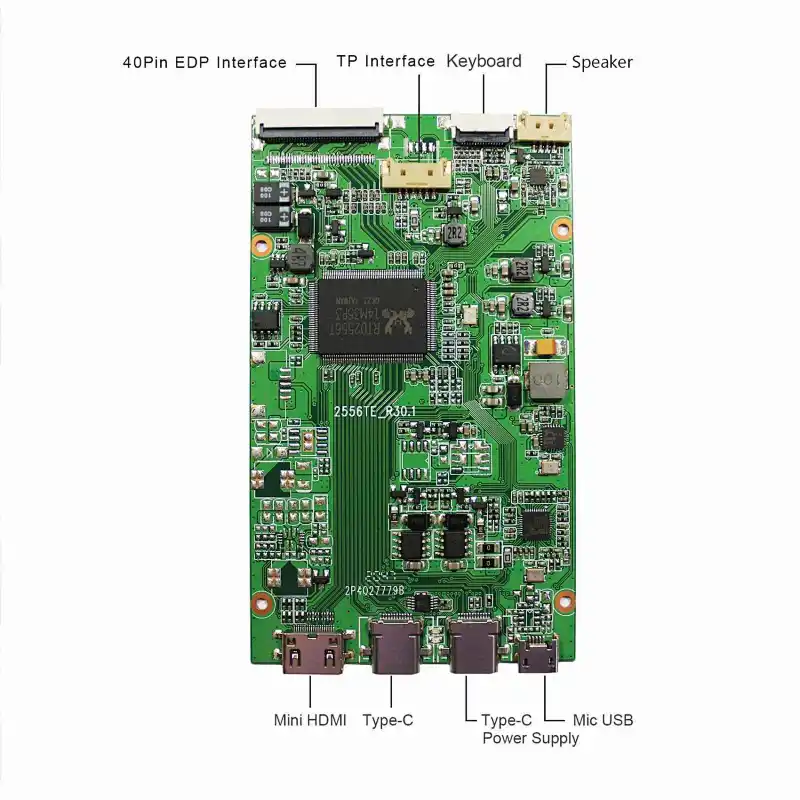

LCD Controller Board:
HD-MI Type C Control Board Work for eDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HD-MI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 126mm x 60mm x 4mm
17.3"LCD Screen N173HCE-E31:
Display Mode AHVA, Normally Black, Transmissive
Resolution 1920(RGB)×1080
Outline Size 399.5(W)×230.45(H) ×4(D) mm
Display Area 381.88 (W)×214.81 (H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

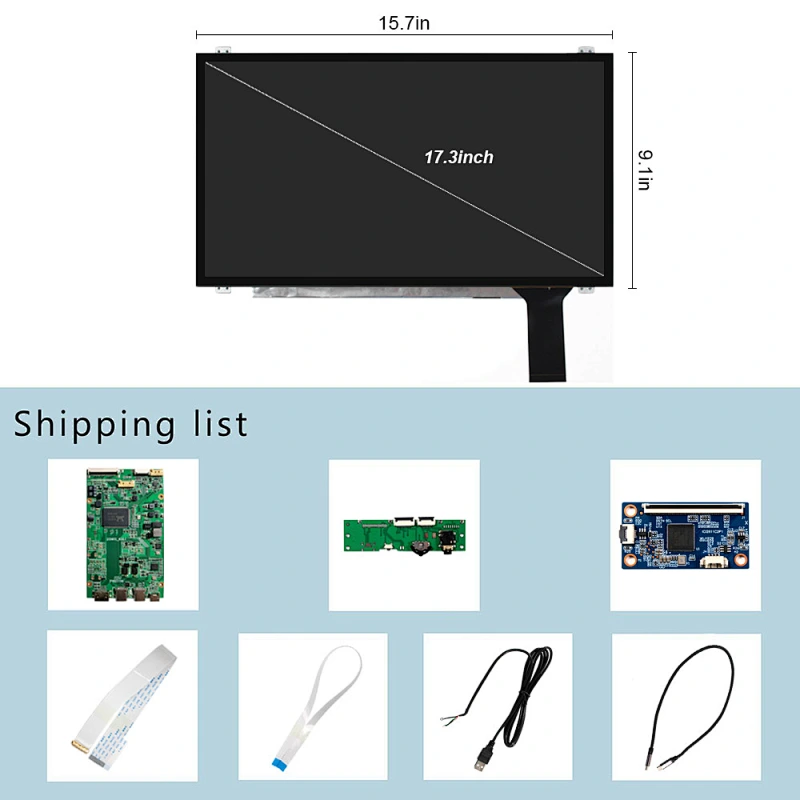

Packing list:
1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1×17.3inch eDP 1920X1080 IPS LCD With Capacitive Touch Panel
1x USB Cable
1× Signal Cable
1× Keyboard With Cable
