HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel
HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel

HDMI VGA 2AV LCD Controller Board 15inch 1024x768 30pin CCFL LCD Screen with Touch Panel

Model NO.
K000357-VS-TY2662-V1+FIX-30P 1ch 6bit+15inch 1024x768+VS151TP-A1+USB controller card
Quantity:

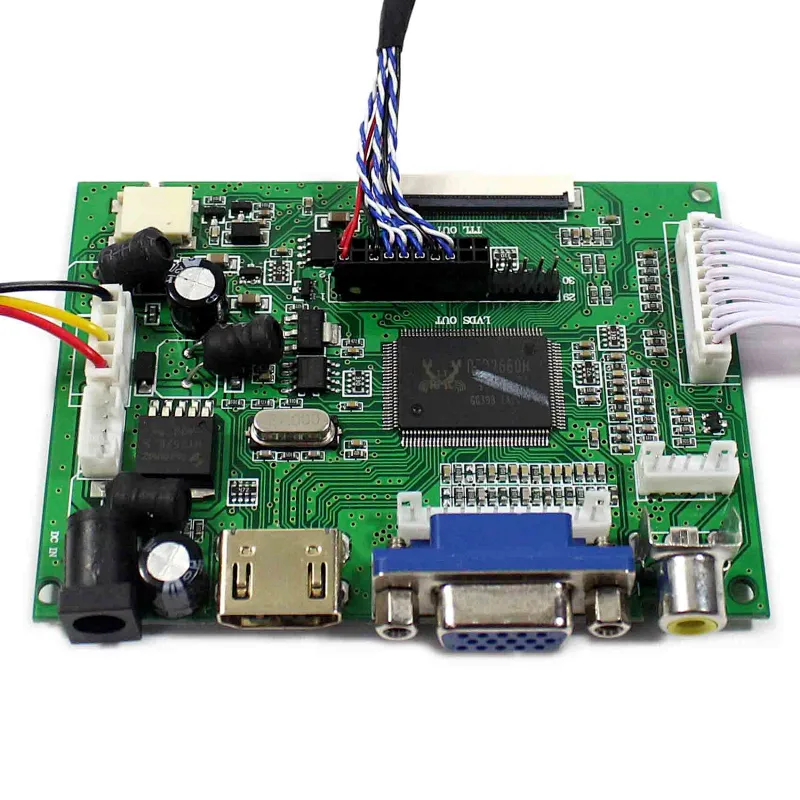

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm

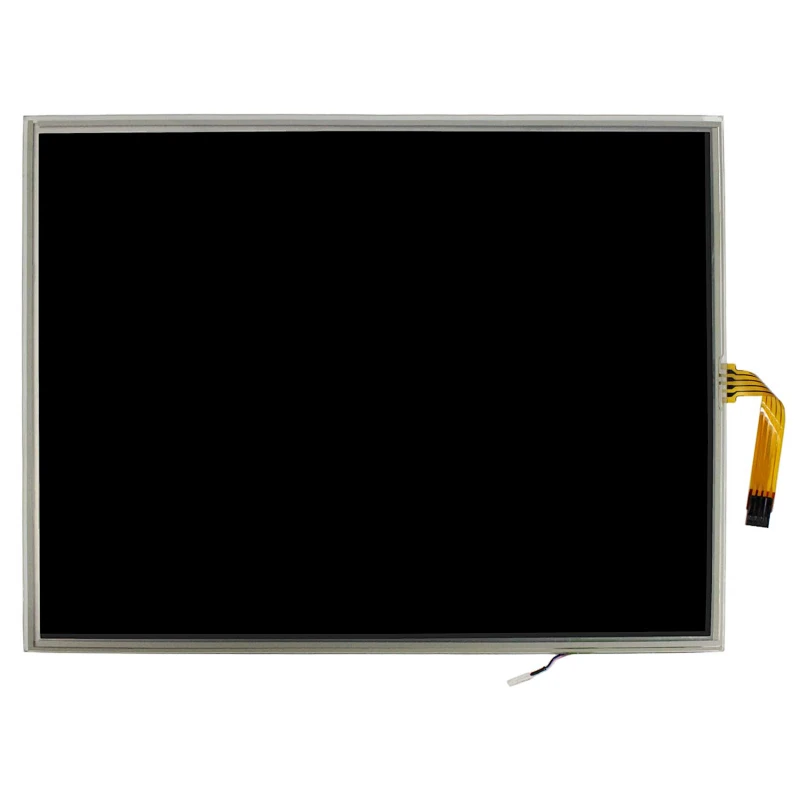

15" 1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 317.3 × 241.5× 6(H×V×D)
Display Area 304.128×228.096 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 350:1 (Typ.) (TM)
Viewing Angle 45/45/60/50 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 30 pins
Backlight  CCFL
Input Voltage  3.3V (Typ.)

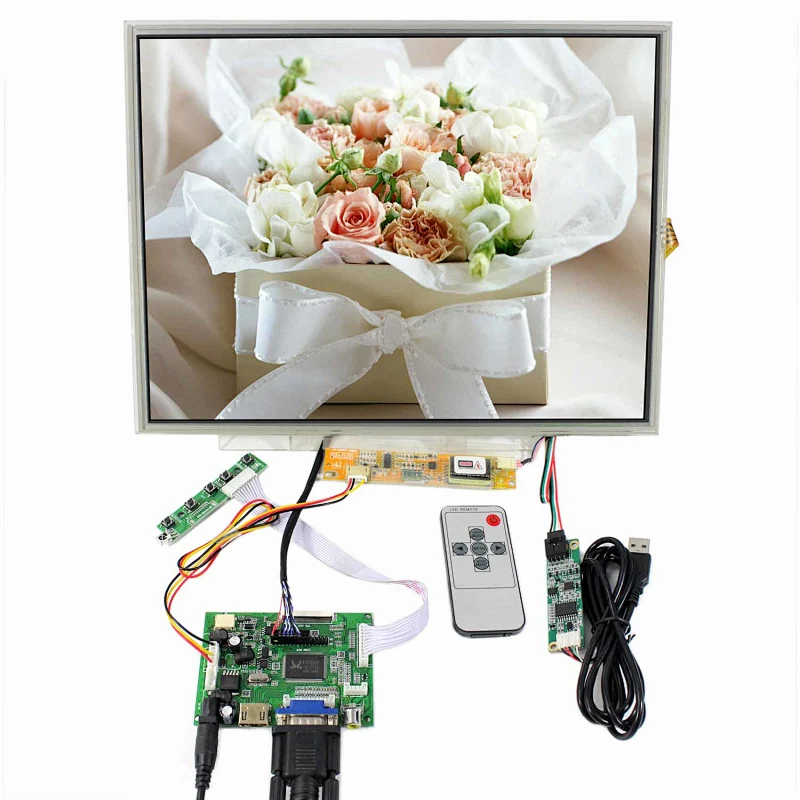

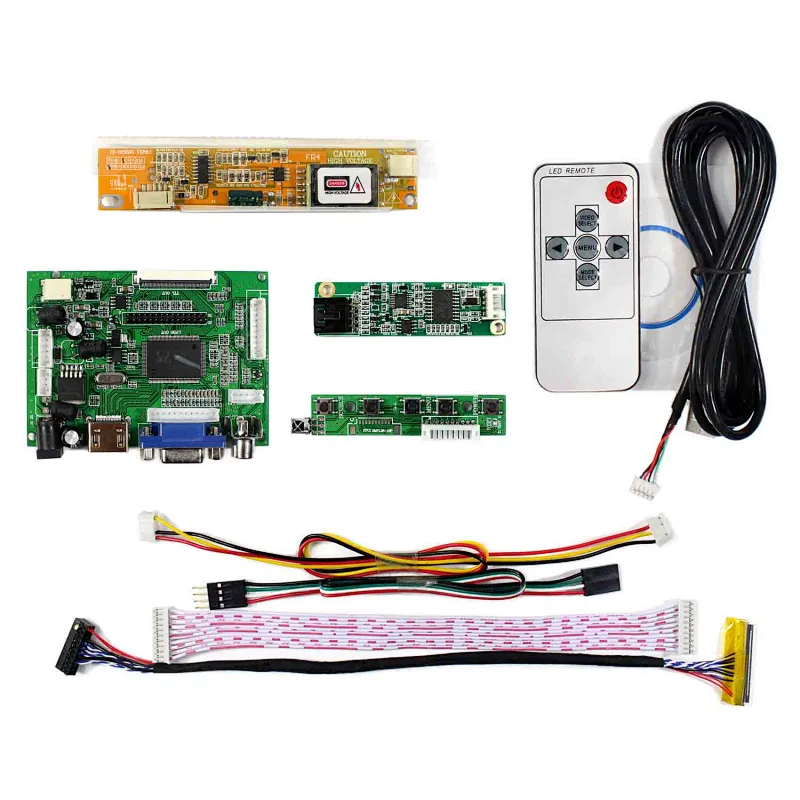

Packing list :
 HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
1× 15inch 1024X768 LCDWith 4-Wire Resistive Touch Panel VS151TP-A1One of these Mode No LP150X09 LP150XG08 LTN150XB B150XG01 B150XG02 B150XG03 B150XG05 B150XG09 N150XB QD15XL06
 LVDS Cable
 Inverter Board
 USB Controller Card
 USB Cable
 Extend Touch Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
