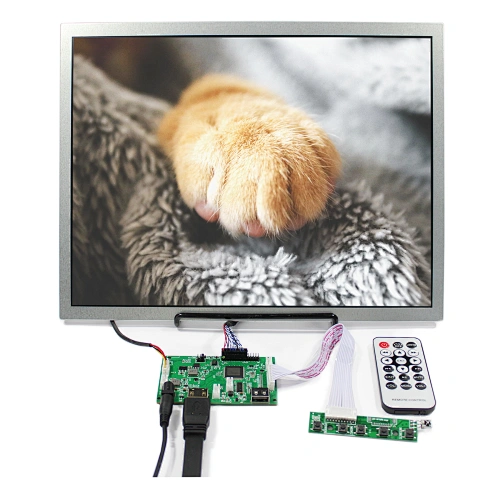

HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display
HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display

HDMI LCD Controller Board With 15inch LQ150X1LG96 1024X768 1050cd/m2 High Brightness LCD Screen Display

Model NO.
K001664-VS-TY2660H-V1+LQ150X1LG96
Quantity:

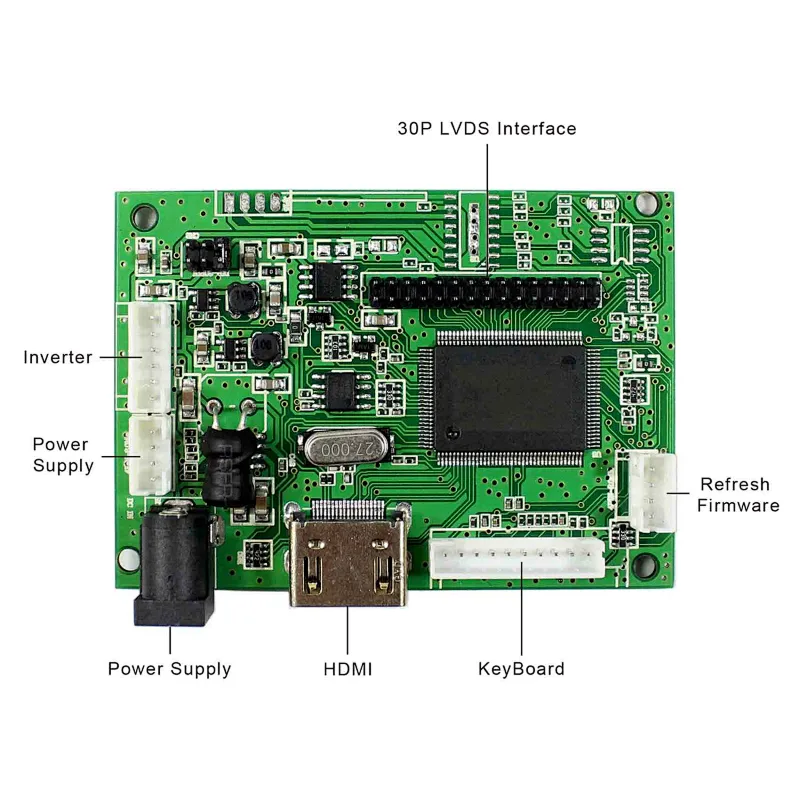

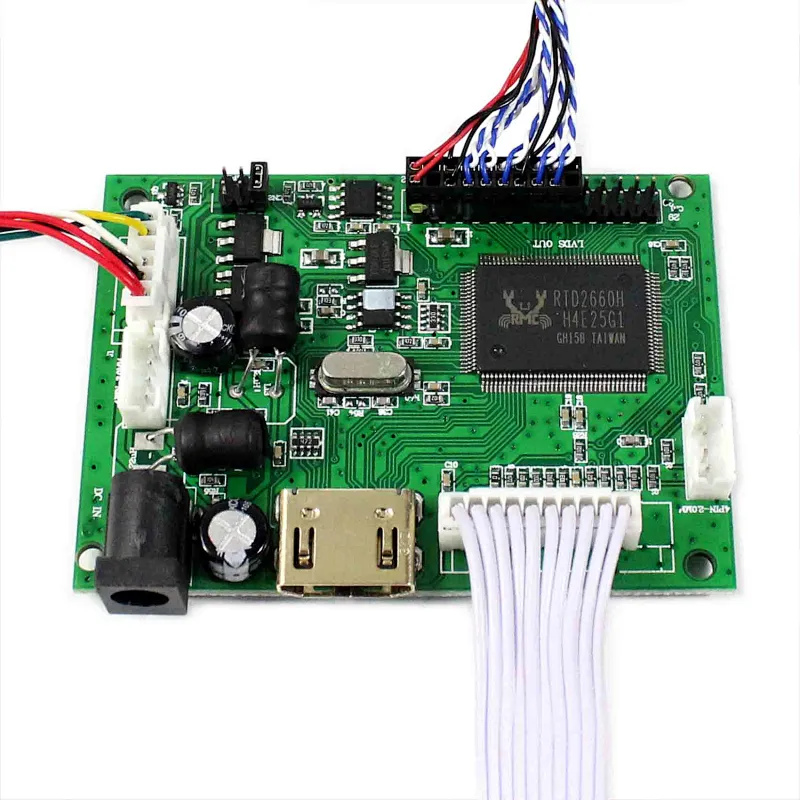

LCD Controller Board:
HDMI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm
15"LQ150X1LG96 1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 326.5 × 253.5× 10.1(H×V×D)
Display Area 304.128×228.096 (H×V)
Brightness 1050 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 20 pins

Backlight  WLED
Input Voltage  3.3V (Typ.)

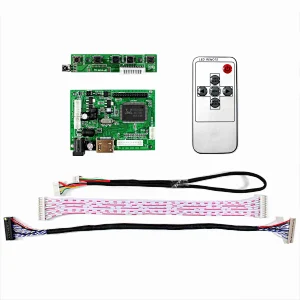

Packing list :
 HDMI LCD Controller Board VS-TY2660H-V1

1× 15inchLQ150X1LG961024X768 LCD Screen

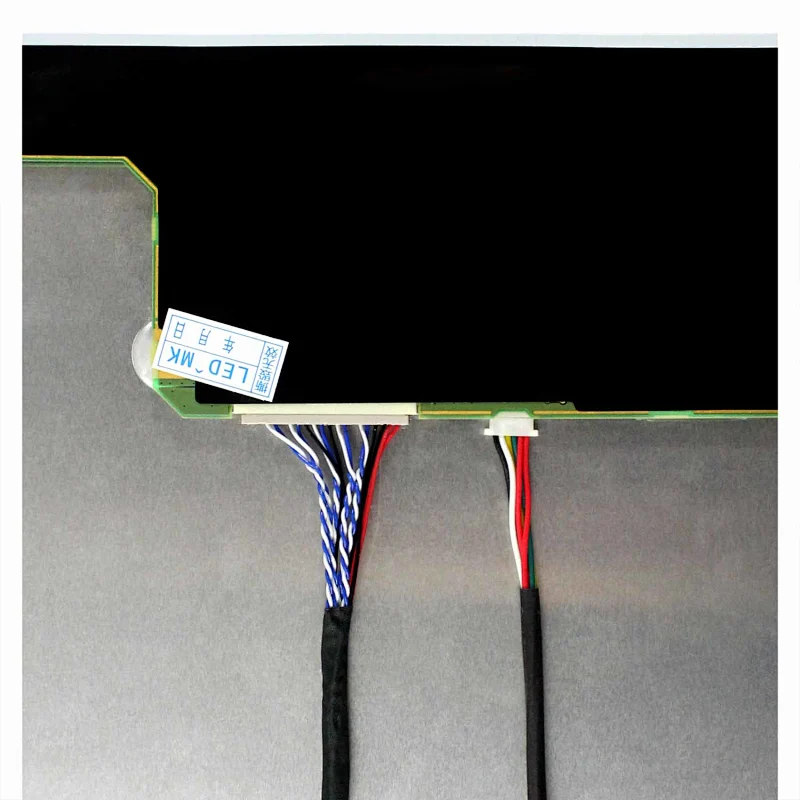

 LVDS Cable
 Backlight Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
