15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board

15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen Touch Sensor display with HDMI Type C LCD Controller Board

Model NO.
K002281-VS-RTD2556HC40-V1 40pin+NV156FHM-T10 TP
Quantity:

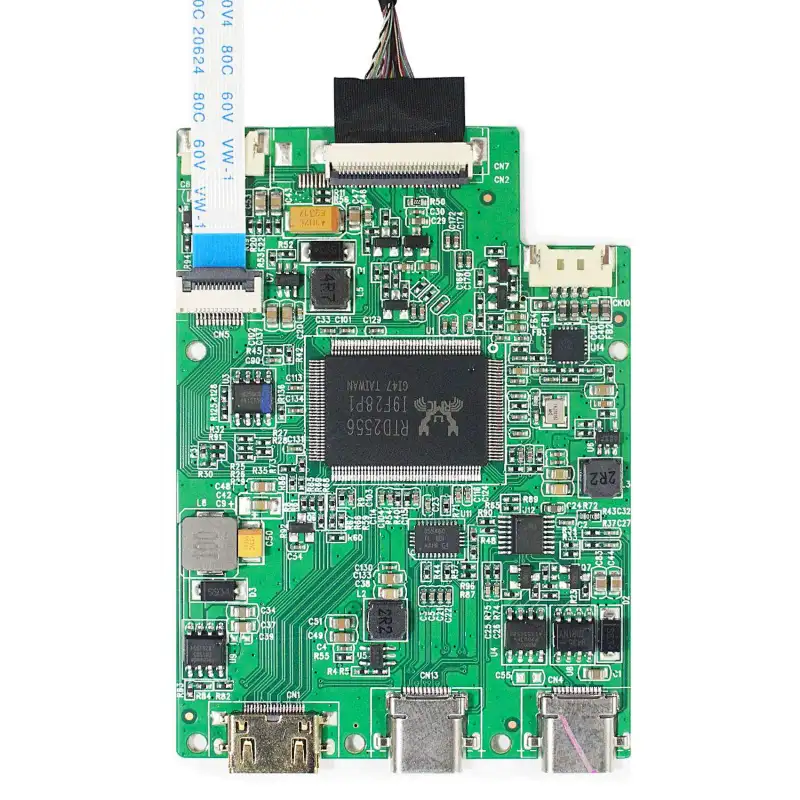

LCD Controller Board:
HDMI Type C Control Board Work for 30Pin EDP LCD Screen
Input Power Adapter: HDMIType-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Audio Speaker
Standby Model <0.3W
Input: Type-C Mini HDMI
Output:Type C USB (max 500mA)
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski Nederlands Korean Japanese
Board Size: 80mm x 51mm x 8mm
15.6" NV156FHM-T10 1920X1080 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution1920RGB)×1080
Outline Size 373.5×236.7×4.35 (H×V×D)
Display Area 344.16× 193.59 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes) , Connector , 40 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)
Touchscreen PCAP, On-Cell

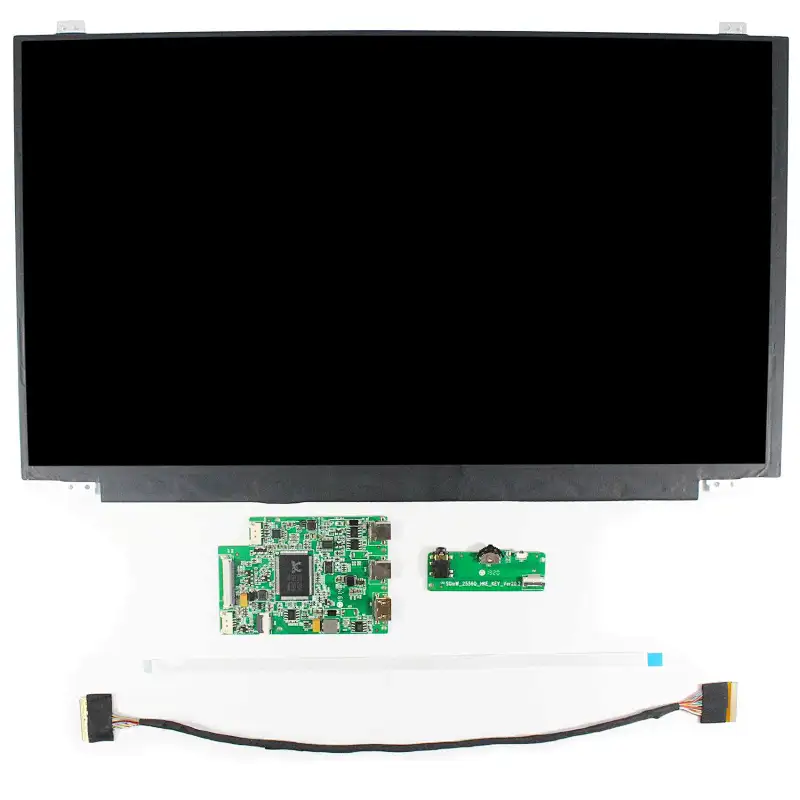

Packing list :
1× HDMI TYPE-C LCD Controller Board VS-RTD2556HC40-V1
15.6inch NV156FHM-T10 1920x1080 IPS LCD Screen With Touch Sensor
1× Signal Cable
1× Keyboard With Cable
