For Live Broadcast Work With IOS Phone 10.1" 800x1280 Rotate Image IPS MIPI LCD Screen+HDMI USB Board USB C Power

Model NO.
K003076 VS-TY2660H-V837 For IOS Phone +10.1inch 800x1280 IPS LCD
Quantity:

LCD Controller Board:
HDMI USB LCD Controller Board For 10.1inch MIPI LCD Screen
Input Power Adapter: USB C Port PD20W Power Adapter
20000mA Portable Source Can Work 4-5 Hours
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI USB
HDMI:
Connect To Laptop Computer Media Box ‘s HDMI Output Used For Extended Display
USB:

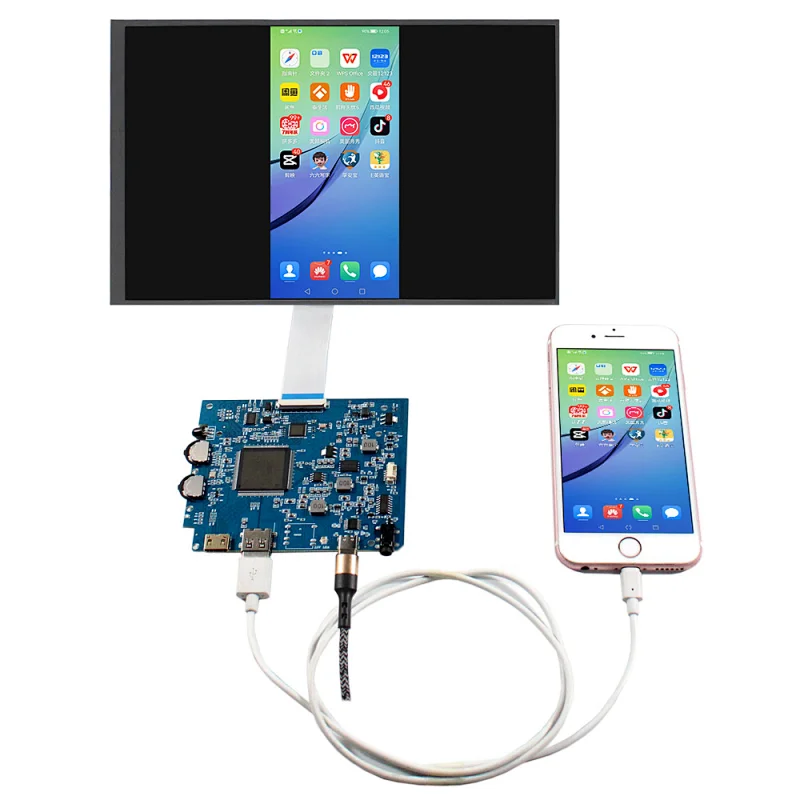

Connect To IOS Phone Used For Live Broadcast Equipment

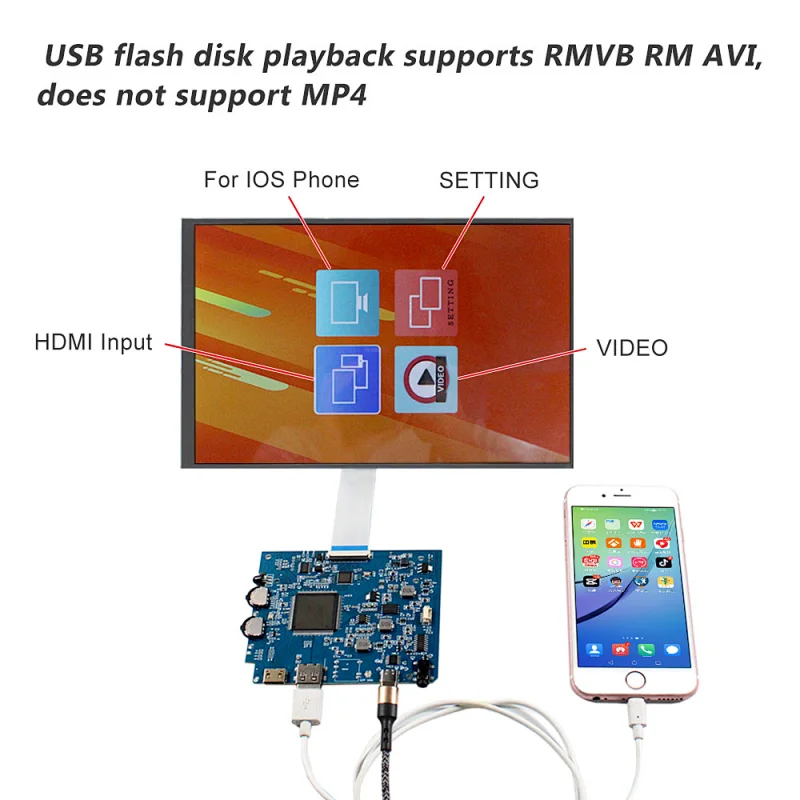

Connect To USB Flash Disk Memory Card Used For Play Video And Photos
Image:

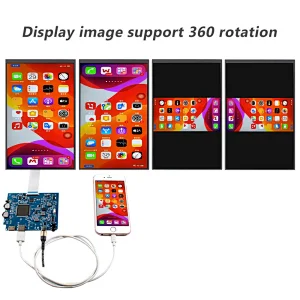

Support Rotate 0°90°180°270°360°
Support Mirror Display
Support Stretch (Full Screen) Proportion (Not Full Screen, Display According To Input Source)
OSD: Pictures Sound Language And So On
Language: English French German Spanish Italian And So On
Board Size: 102mmx85mmx8mm/4.1inchx3.4inchx0.3inch

10.1"800X1280 LCD Screen:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 800(RGB)×1280
Outline Size 142x228.3×5.2 (H×V×D)
Display Area 137×218.5 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.) (CR≥10) [Left / Right / Up / Down]

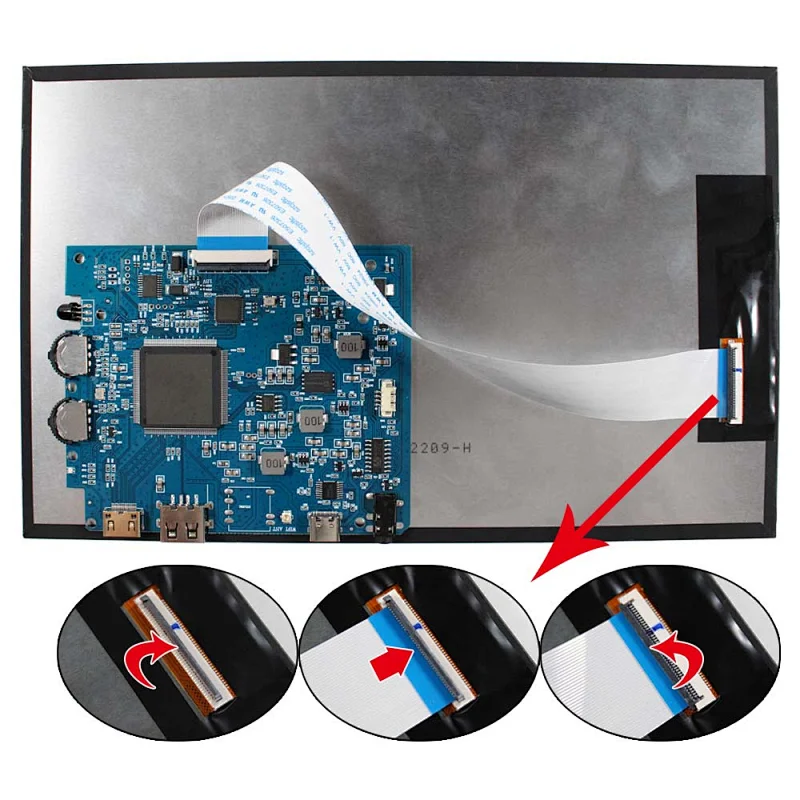

Signal Interface MIPI Connector,40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

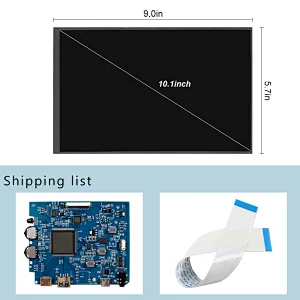

Packing list :
1× HDMI USB LCD Controller Board VS-TY266H-V837
1× 10.1inch 1280x800 IPS LCD Screen
1× Signal Cable
