Model NO.
K003069 VS-ZL-C-31V02 with 8.8inch VS088GF01 480x1920 touch panel screen
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

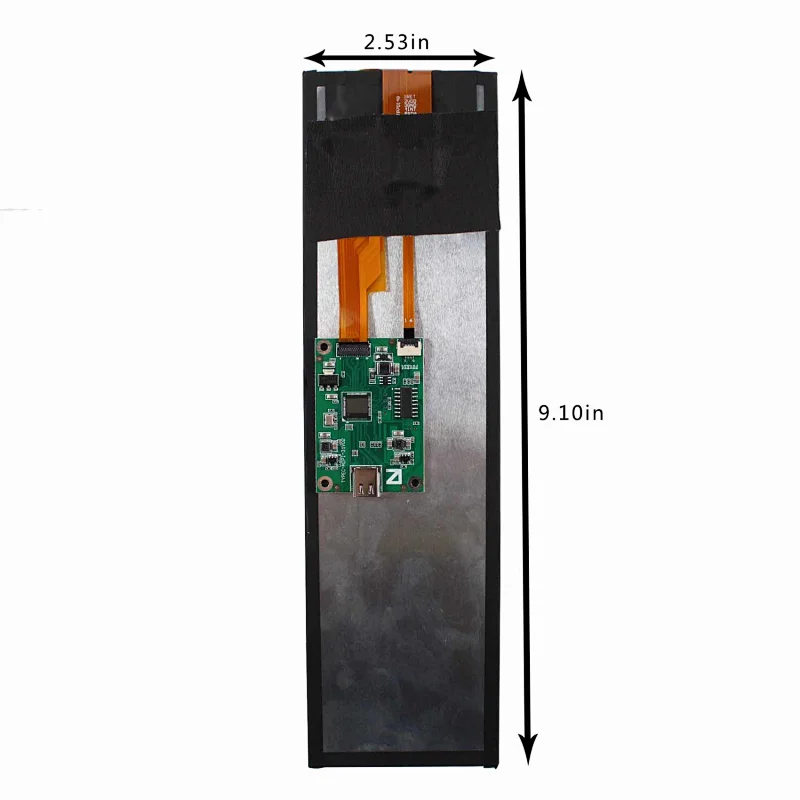

LCD Controller Board:
Type-C Board Work for 30Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 0.3A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: Type-C
Board Size: 50mm x 35mm x 5mm


8.8"VS088GF01  1920X480 LCD Screen:
DisplayNew Mode2, Normally Black, Transmissive
Resolution 480RGB)×1920
Outline Size 231.3×64.3×6.4(H×V×D)
Display Area 221.9× 57.7(H×V)
Brightness 600 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI, 40 pins , Connector
Backlight  WLED
Input Voltage 3.3/20.0/-10.0 V (Typ.)(IOVCC/VSP/VSN)


Packing list:
1× 8.8inch VS088GF01 LCD Screen to Type-C Board to TP
