28" VS284TX-00A 1920X360 LCD Screen with HDMI Controller Board LCD Driver Board lcd controller board hdmi hdmi lcd controller board hdmi controller board hdmi controller for lcd lcd controller hdmi 28inch lcd screen 1920x360 TFT LCD Screen

Model NO.
K002874 VS-56S2+28inch 1920x360 TFT LCD
Delivery
EXW or FOB Shenzhen
Minimum order quantity
1 piece
Supply Ability
1000 piece / Day
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

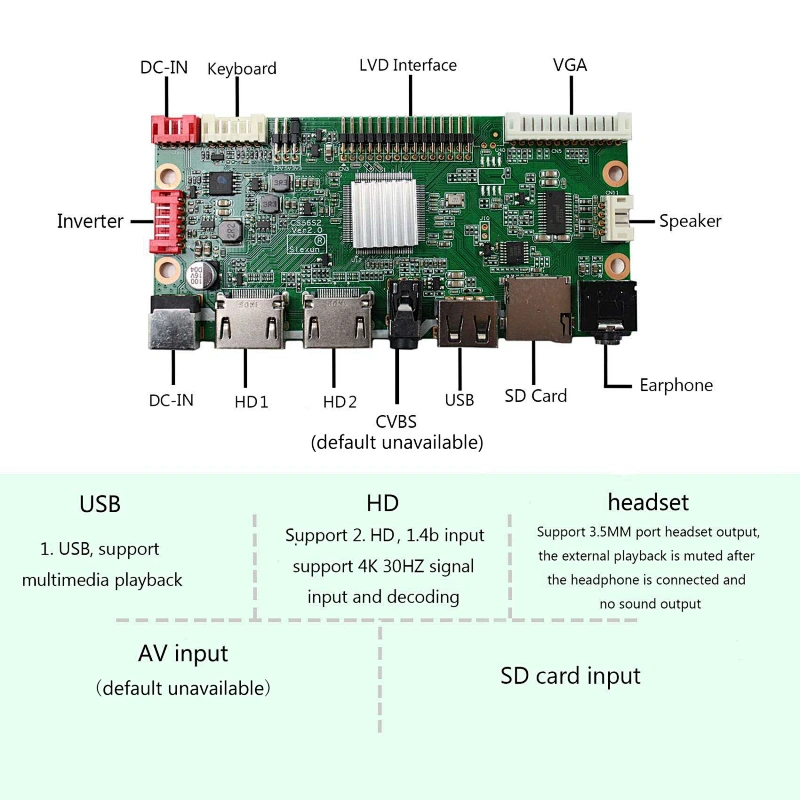

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm

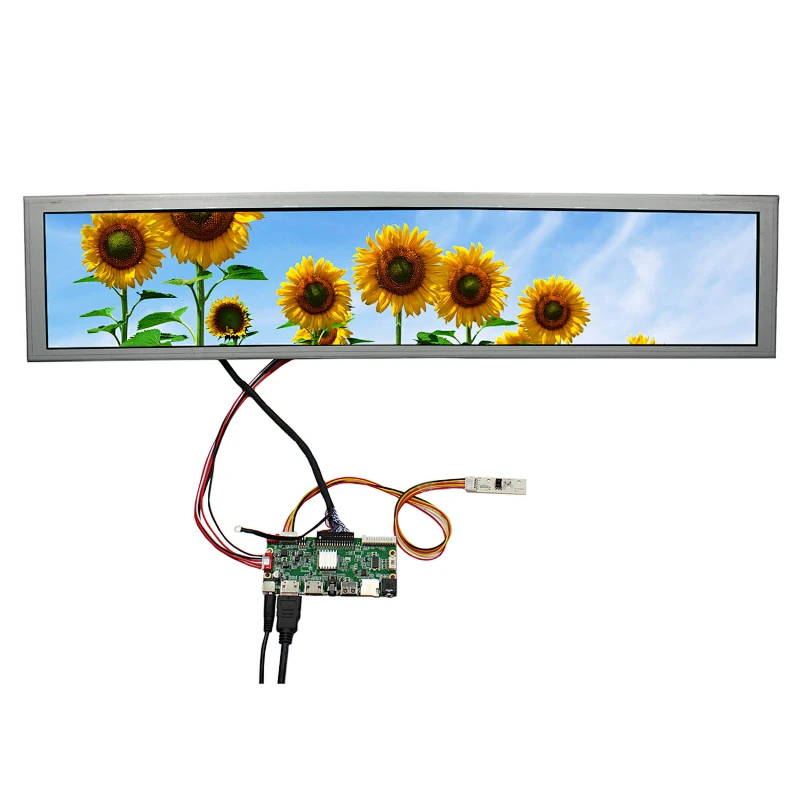

28"VS284TX-00A 1920X360 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1920(RGB)×360
Outline Size 740 × 160×38mm(H×V×D)
Display Area 698.4 × 132mm (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.) (CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50 pins
Backlight WLED
Input Voltage 12.V (Typ.)

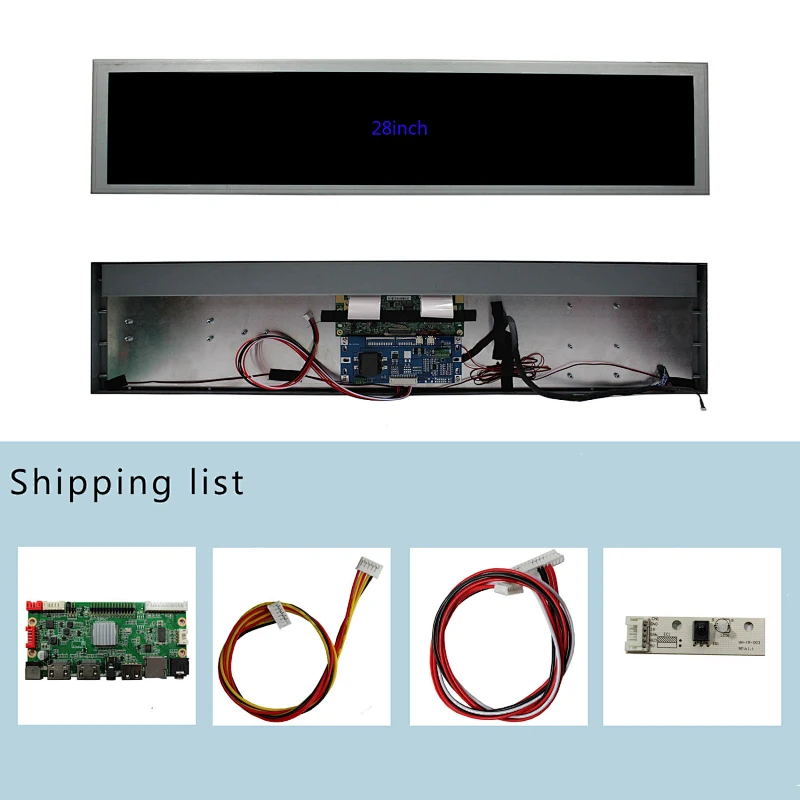

Packing list:
1× HD-MI Audio LCD Controller Board
1× 28.4inch VS284TX-00A 1920X360 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
