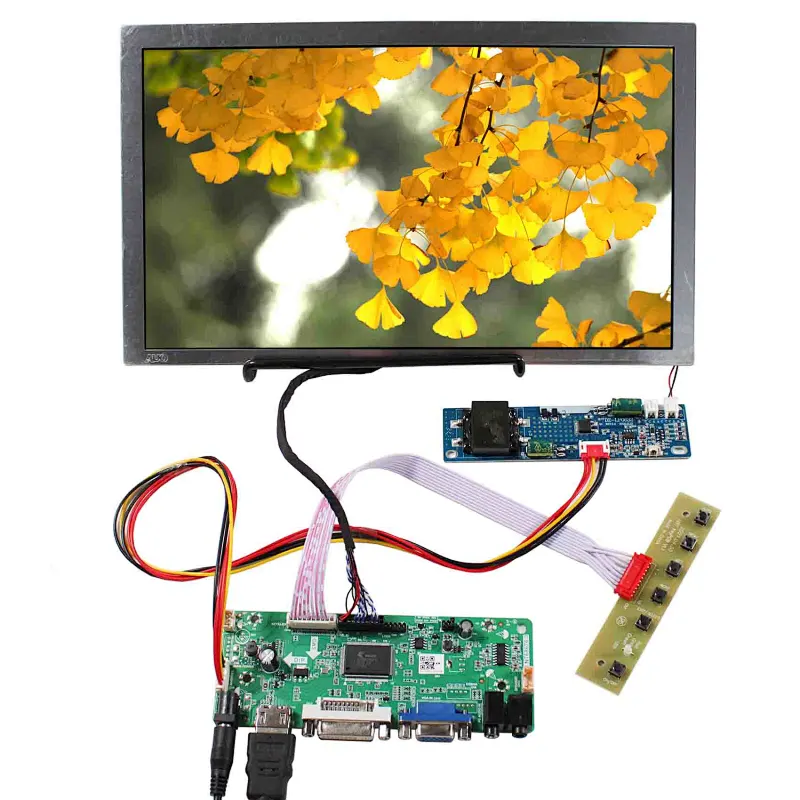

HD DVI VGA AUDIO LCD Board Work for LVDS Interface 11.6" A116XW02 -1000 1366x768 LCD Screen

Model NO.
K003052 M.NT68676+11.6inch A116XW02-1000 nits
Delivery
EXW or FOB
Minimum order quantity
1 piece
Supply Ability
1000 piece / Day
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

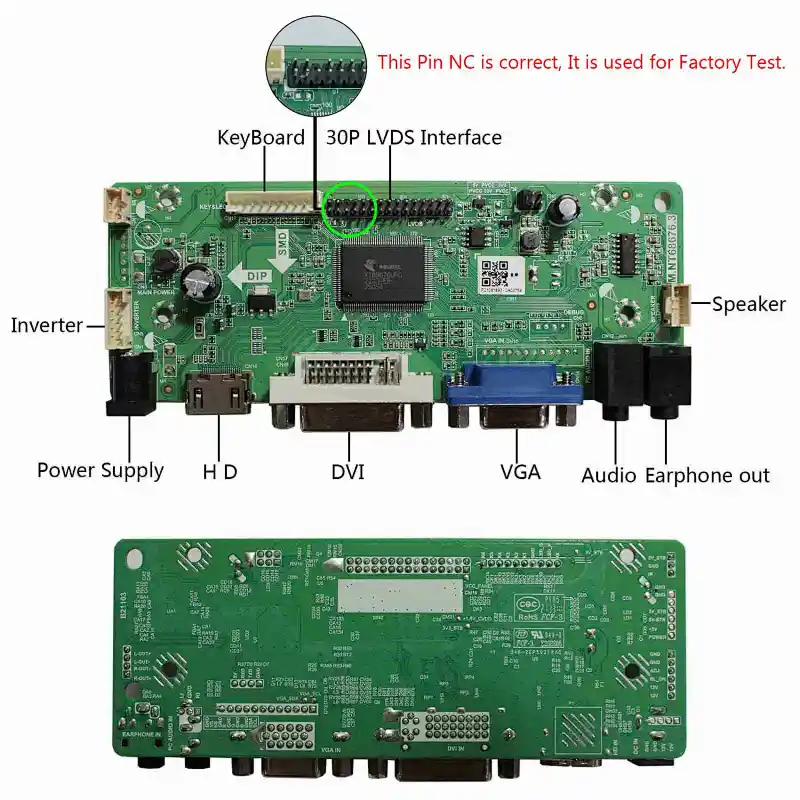

LCD Controller Board:

HD DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD DVI VGA

Audio Input: HD

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

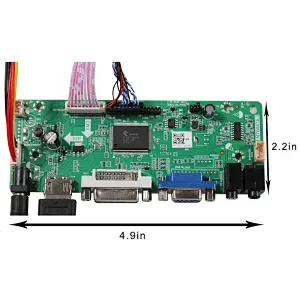

Board Size: 125mm x 53mm x 17mm

11.6"A116XW02 -1000 1366x768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1366XRGB)×768

Outline Size 282.2×168×13mm (H×V×D)

Display Area 256.125× 144mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 450:1 (Typ.) (TM)

Viewing Angle 60/60/35/35 (Typ.)(CR≥10

Signal Interface Parallel LVDS (1 ch, 8-bit) ,30 pins ,

Backlight WLED

Input Voltage 3.3V (Typ.)

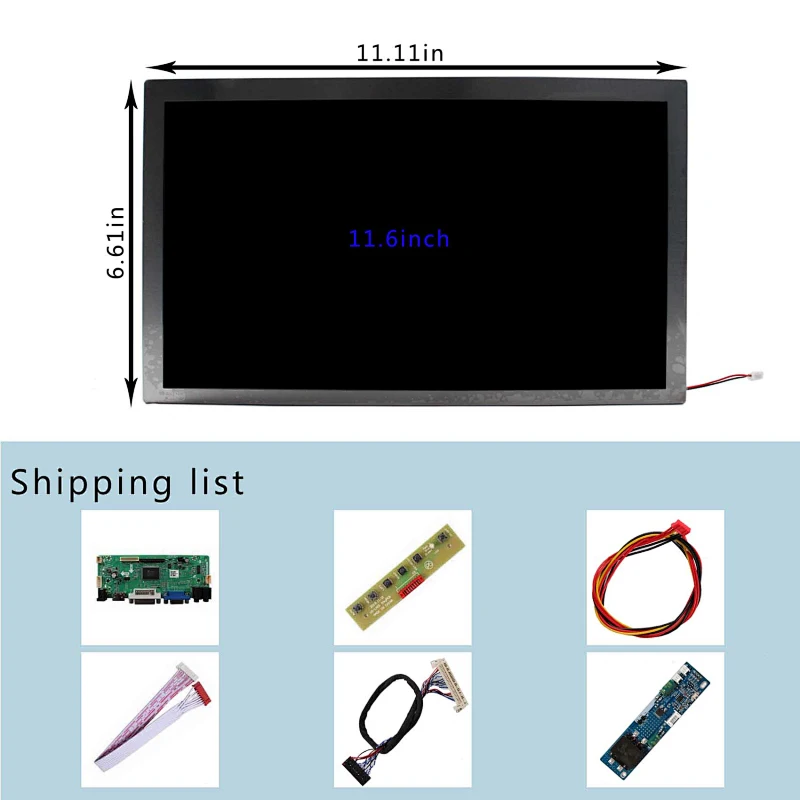

Packing list :

1× HD VGA DVI LCD Controller Board M.NT68676

1× 11.6inch A116XW02-1000 1366X768 LCD Screen

1× Inverter Board

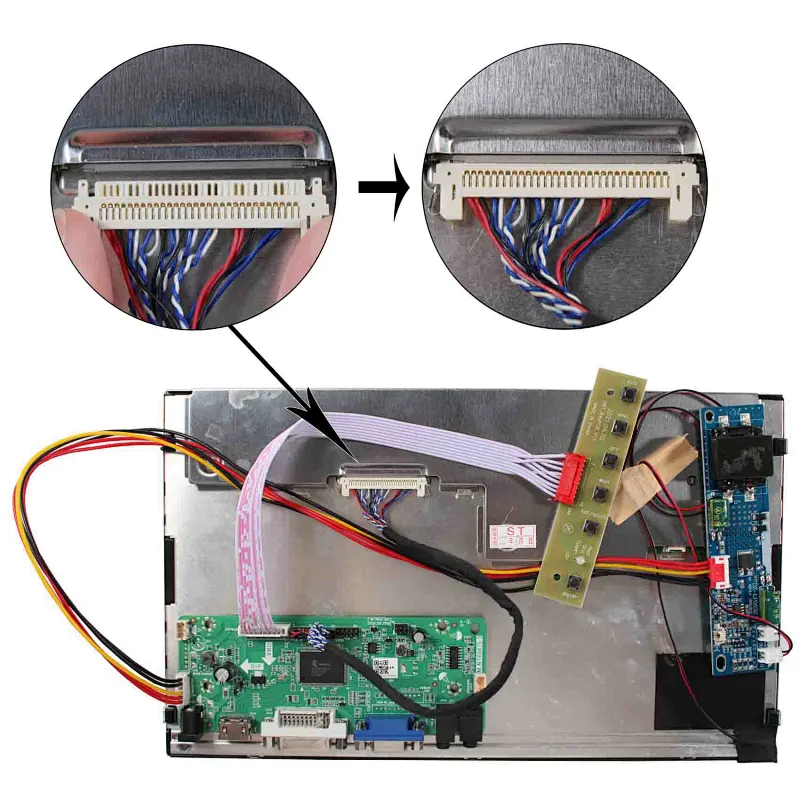

1× LVDS Cable

1× Keyboard With Cable
