AndroidLCD Controller Board:

Android 11 Board Compatible With OpenGL ES 1.1/2.0/3.2、OpenCL 2.0 Vulkan 1.1

CPU: RK3566 UP to1.8GHz

GPU: Mali-G52-2EE

NPU: 0.8T

Memory: 2G LPDDR4X/LPDDR4

Built-in Memory: EMMC16G/32G

Decoding Resolution: 1080P/H.265(4K2K)

Operating System: Android 11

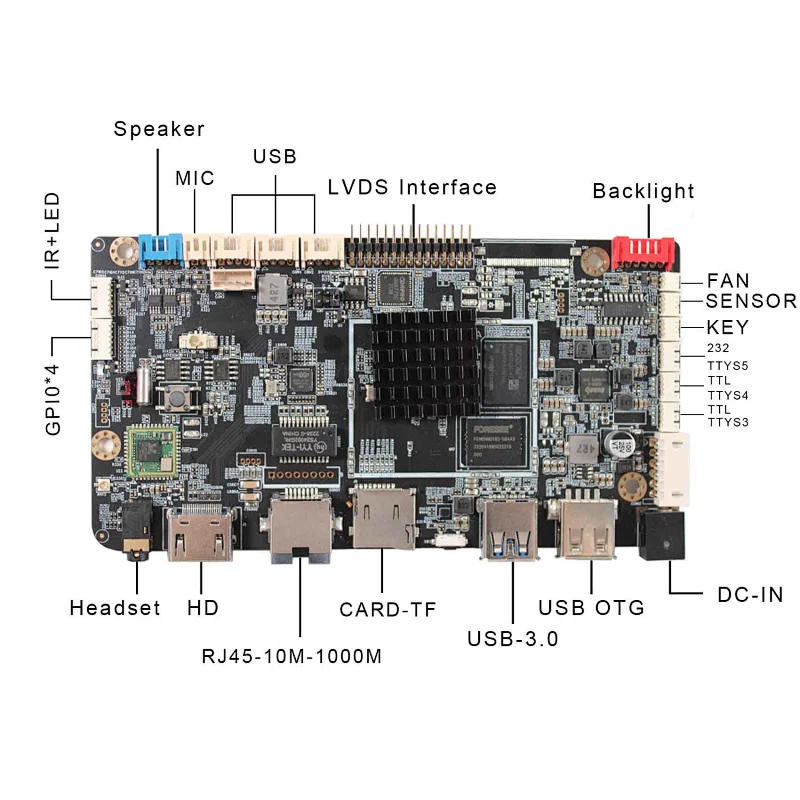

USB: 5 x USB2.0 1 x USB3.0

HDMI：Up to 3840x2160 eDP：Up to 1920x180

LVDS：Up to 1920x180 MIPI：Up to 2560x1440

Audio Output: Speaker 8R/2W

Serial Port：3 x TTL 1 x Debug 1x RS232

Input Power Adapter: 12Vdc more than 2A

Come In Standby Model When Not Input Signal

Standby Model <0.5W

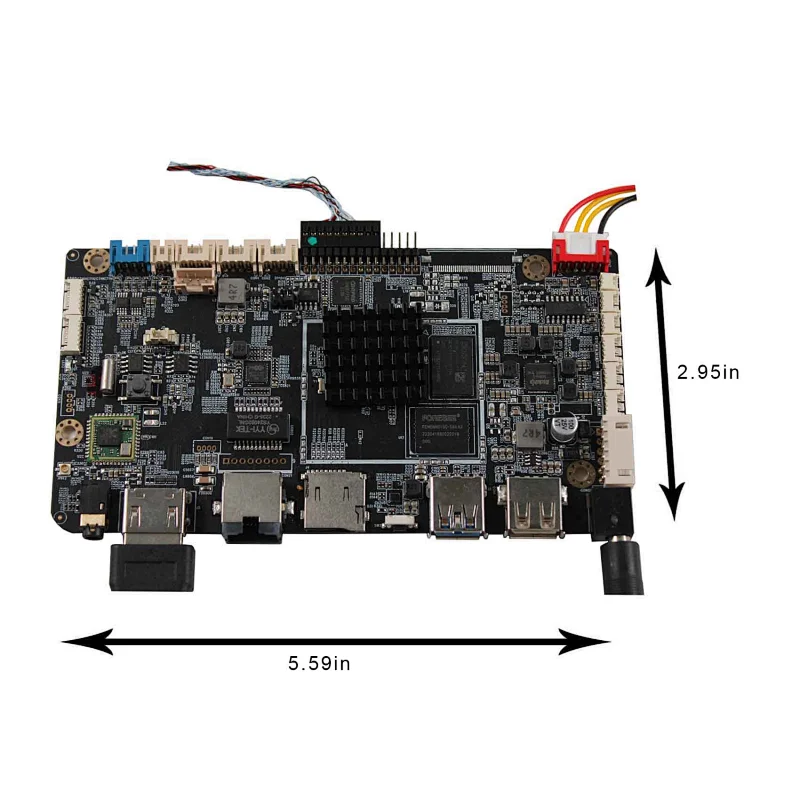

Board Size: 142mm x 75mm x 16mm

5.6"LTD056ET3A 1024X600 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1024(RGB)×600

Outline Size 136.8 × 85.9×4.9 (H×V×D)

Display Area 122.88 × 72 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , 25 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

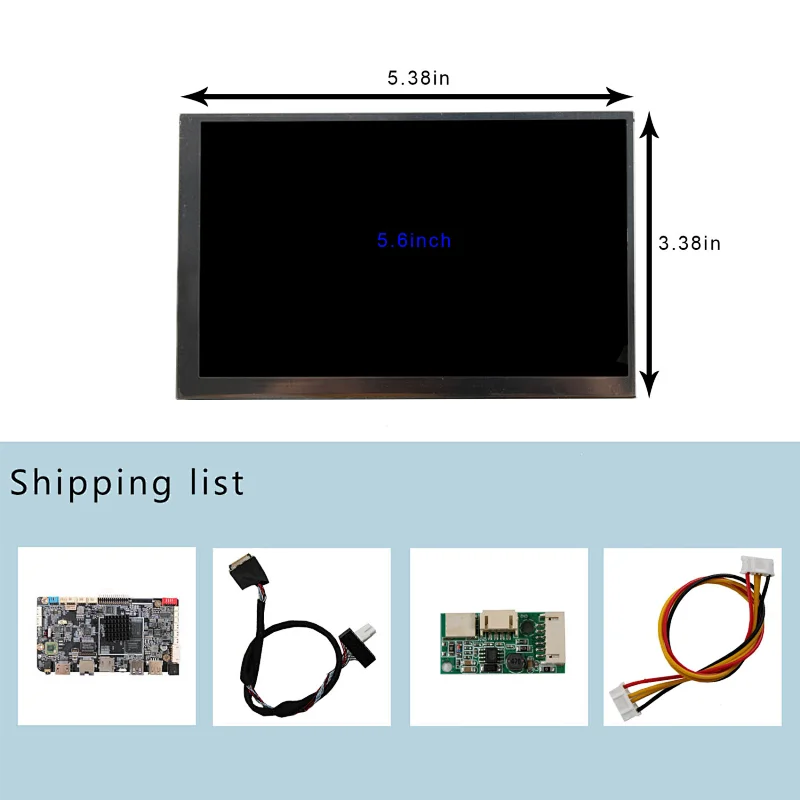

Packing list:

1×Android LCD Controller Board YF-023D Android 11

1× 5.6inch LTD056ET3A 1024X600 LCD Screen

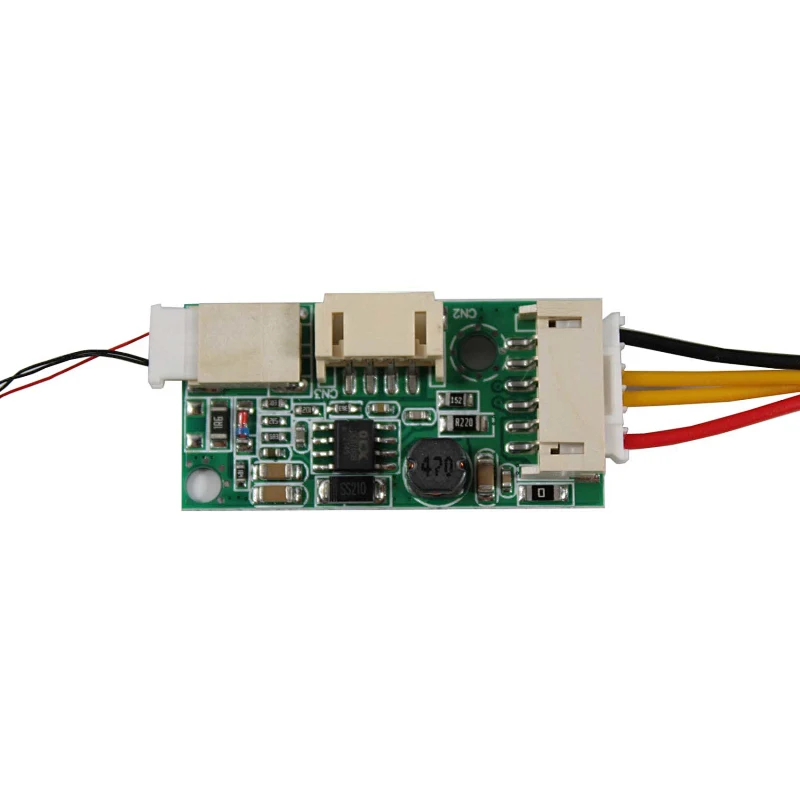

1× Converter Board

1× LVDS Cable

1× Keyboard With Cable
