HDMI.USB LCD Controller Board for 30Pin LVDS 18.5" tft lcd panel VS185DF-1000nits 1366x768(MV185WHB-N20)

 LCD Controller Board:

HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 5A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel：3.3V 5V 12V (Jumper optional)

Video Input: HD-MI USB

HD-MI: Support HD-MI 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

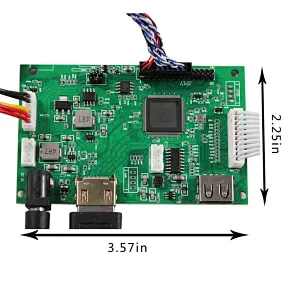

Board Size: 90.7mm x 57.3mm x 14mm

18.5"VS185DF-1000 1366x768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1366X(RGB)×768

Outline Size 430.4×254.6×10.8mm (H×V×D)

Display Area 409.8× 230.4 mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/809/80 (Typ.)(CR≥10

Signal Interface Parallel LVDS (1 ch, 8-bit) ,30 pins ,

Backlight WLED

Input Voltage 5V (Typ.)

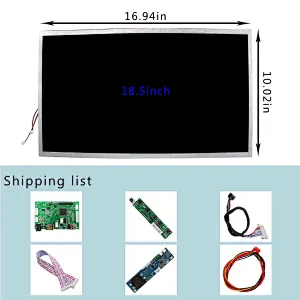

Packing list:

1× HD-MI USB LCD Board for 30Pin VS-TY2660HU-823

1× 18.5inch VS185DF-1000 1366x768 LCD Screen

1× Inverter Board

1× LVDS Cable

1× Keyboard With Cable
