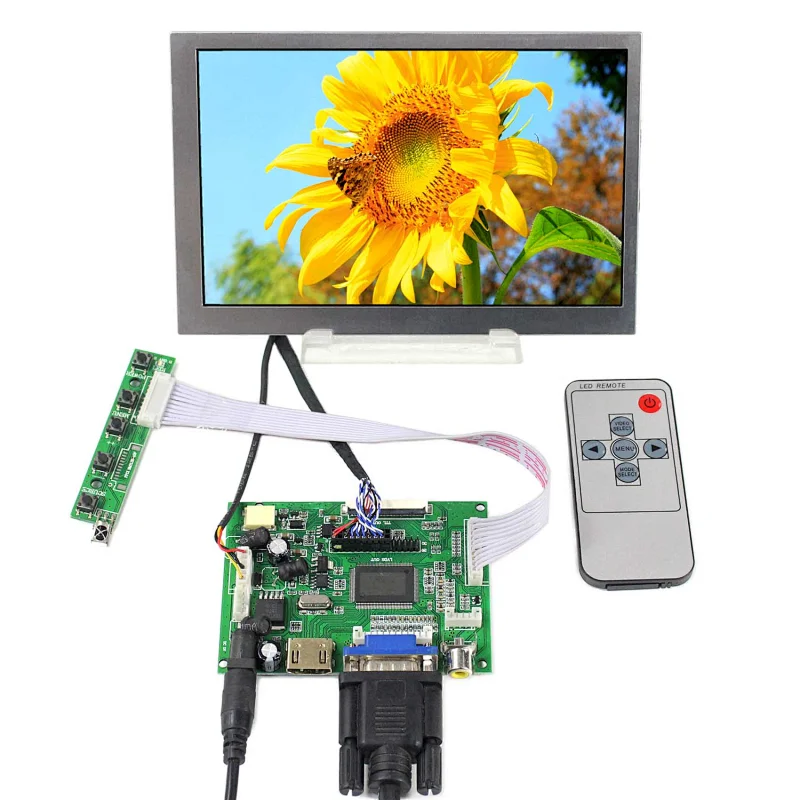

7" G070VW01 V0 800X480 LVDS TFT LCD Screen with HDMI Driver Board 7 tft lcd 800x480 tft lcd module 800x480 tft lcd 800x480 lvds board hdmi tft lcd lvds G070VW01 TFT LCD

LCD Controller Board:

HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 91mm x 66mm x 12mm

7"G070VW01 V0 800X480 LCD Screen:

Display Mode  MVA, Normally Black, Transmissive

Resolution 800RGB)×480

Outline Size 170 × 111×8(H×V×D)

Display Area 152.4× 91.44 (H×V)

Brightness 400 cd/m² (Typ.)

Contrast Ratio 750:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

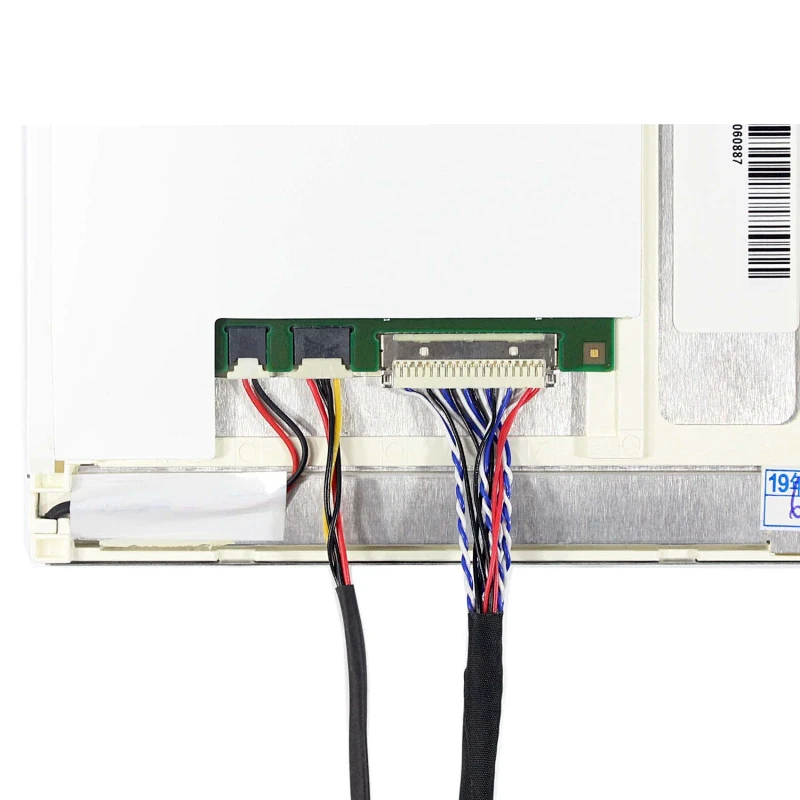

Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 20 pins

Backlight  WLED

Input Voltage  3.3V (Typ.)

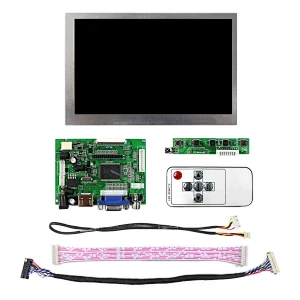

Packing list :

1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1

1× 7inch G070VW01 V0 800X480 LCD Screen

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)
