7" B070EW01 1280x800 LVDS TFT LCD Screen with hdmi audio controller board lvds lcd controller board lvds 1280x800 tft lcd board controller tft lcd controller board lcd controller board hdmi B070EW01 TFT LCD

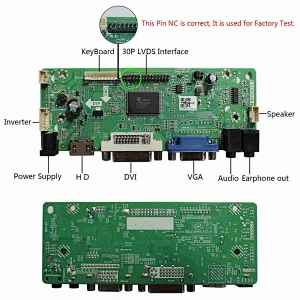

LCD Controller Board:

HD DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD DVI VGA

Audio Input: HD

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 53mm x 17mm

7"B070EW01 1280x800 LCD Screen:

Display Mode IPS, Normally Black, Transmissive

Resolution 1280(RGB)×800

Outline Size 164.2× 106.75×5.1 (H×V×D)

Display Area 150.72×94.2 (H×V)

Brightness 400 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.) (CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1ch 6bit) Connector 40Pin

Backlight WLED

Input Voltage 3.3V (Typ.)

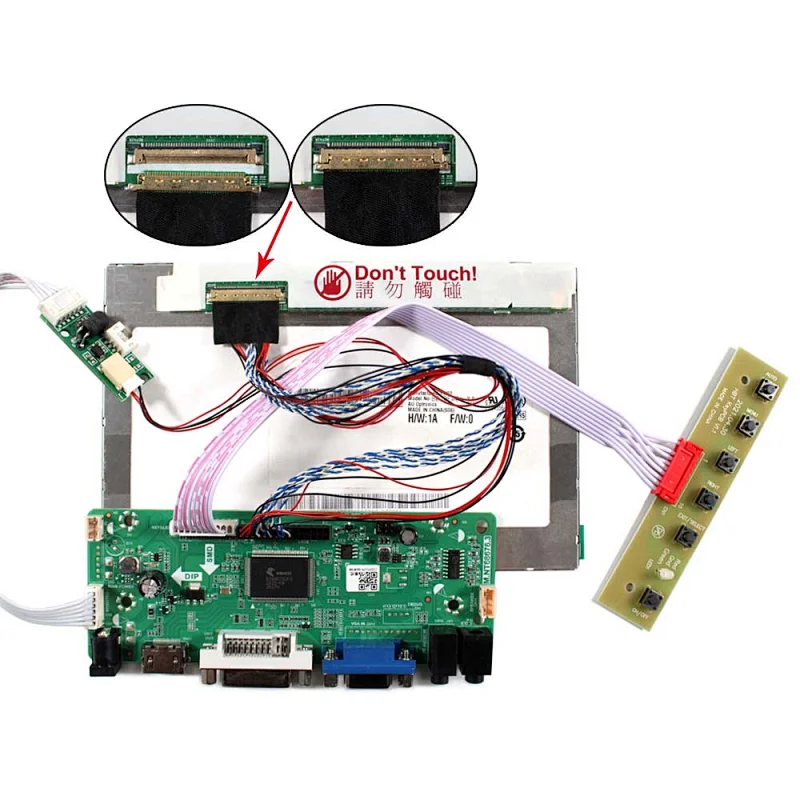

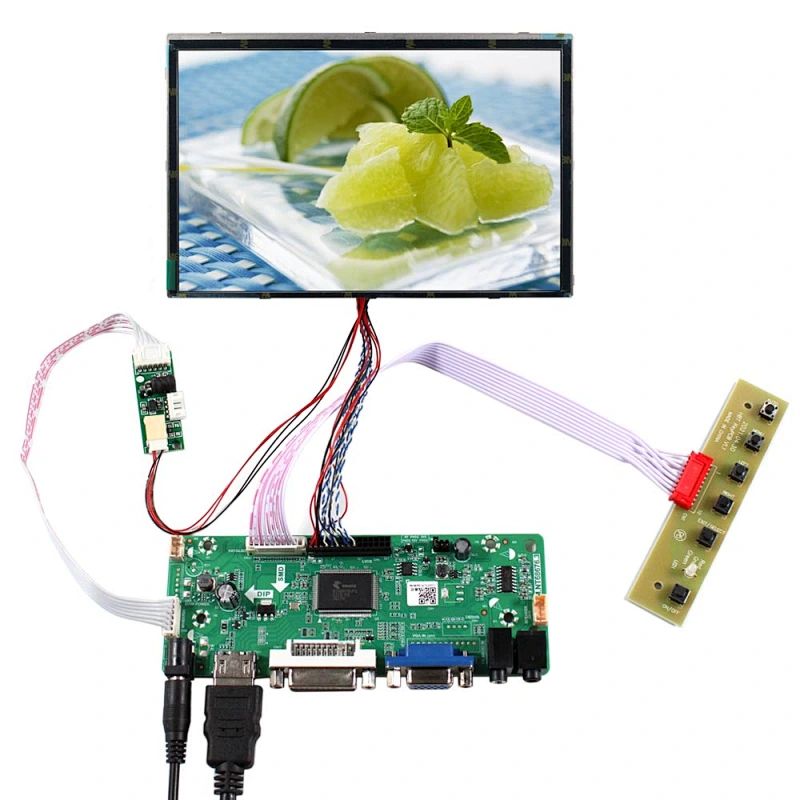

Packing list:

1× HD VGA DVI LCD Controller Board M.NT68676

1× 7"B070EW01 1280x800 LCD Screen

1× LVDS Cable

1× Keyboard With Cable
