HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd
HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd

HDMI VGA BNC USB LCD Board Work for 1680x1050 LVDS Interface LCD Screen BNC USB LCD Board lcd lvds control board HDMI USB Board for 1680x1050 lcd

Model NO.
K001297 VS-V59AV-V2+FIX30P 1680x1050
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7days Days
Quantity:

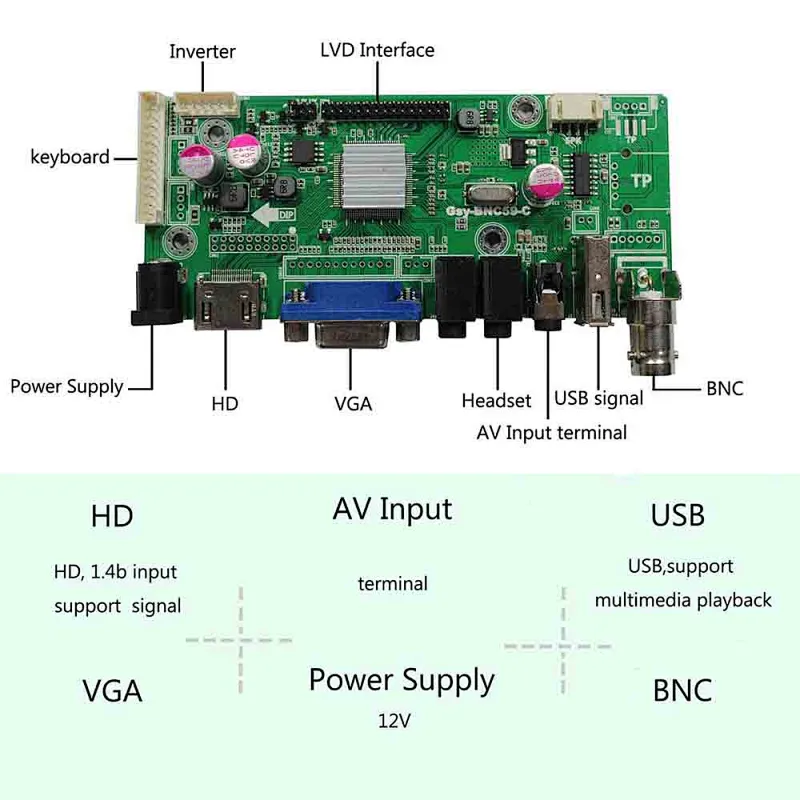

  • LCD Controller Board:

    HDMI VGA BNC USB LCD Board Work for LVDS Interface LCD Screen

    Input Power Adapter: 12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2

    USB Support Video

    Video Input: HDMI VGA BNC USB

    Audio Input: HDMI PC-Audio

    Audio Output: Speaker Connector

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

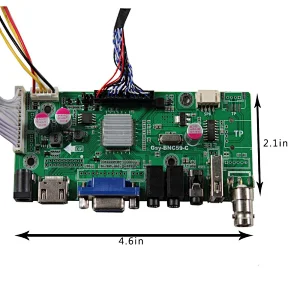

    Board Size: 118mm x 54mm x 17mm

  • Compatible Work With:

    15.4inch 1680x1050:

    LTN154P1-L01 LTN154P1-L02 LTN154P1-L03 LTN154P2-L04 LTN154P2-L05

    N154Z1-L02 B154SW01 LTN154MT02 LP154WE2 QD15AL02 LP154W02

    17inch 1680x1050:

    LTN170WP-L01 LTN170WP-L02 LTN170WP-L03 LTN170P2-L01 LP171W02 A4 LP171WE3

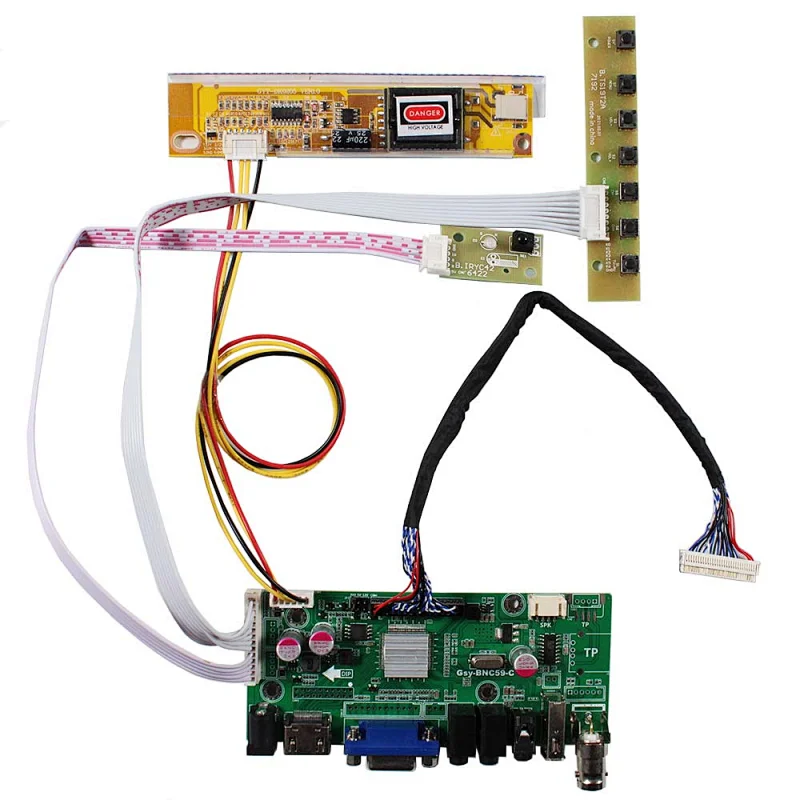

  • Packing list :

    1× HDMI+VGA+BNC+USB LCD Controller Board VS-V59AV-V2

    1× 1 CCFL Inverter Board

    1× 30Pin Signal Cable

    1× Keyboard With Cable
