10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board
10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board

10.1inch B101EW05 1280X800 IPS TFT-LCD Screen HDMI VGA AV USB LCD Controller Board

Model NO.
K002979-VS-M53V2.0+10.1inch 1280X800 B101EW05
Quantity:

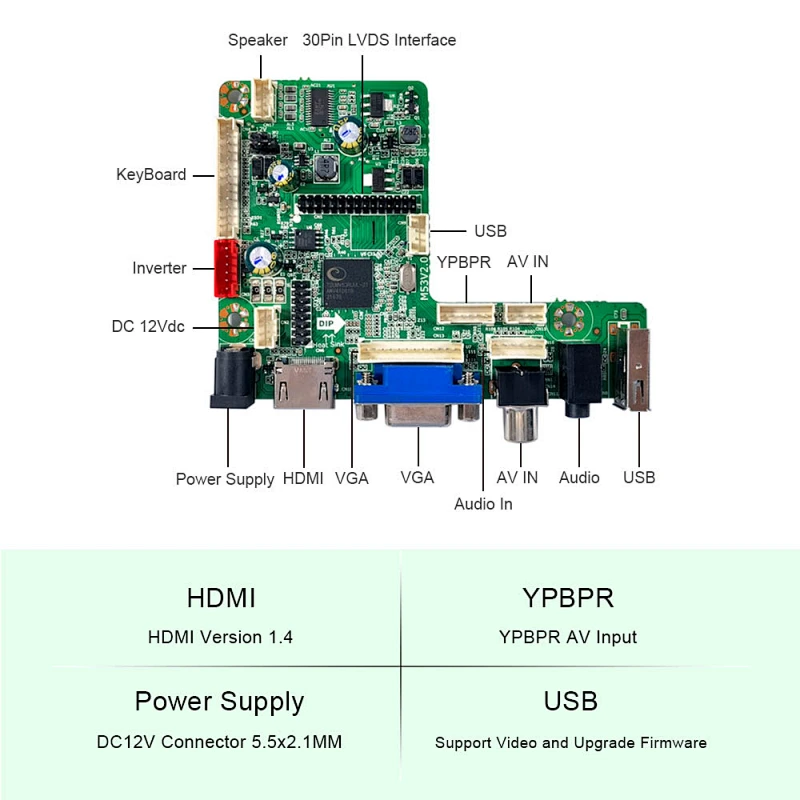

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HD 1.3/1.4HD CP 1.2
USB Support Video
Video Input: HDMI VGA AV USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

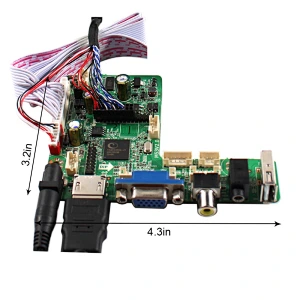

Board Size:109mm x 81mm x 17mm
10.1"B101EW05 1280X800 LCD Screen:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 229.46 × 149.1× 5.2 (H×V×D)
Display Area 216.96 × 135.6 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

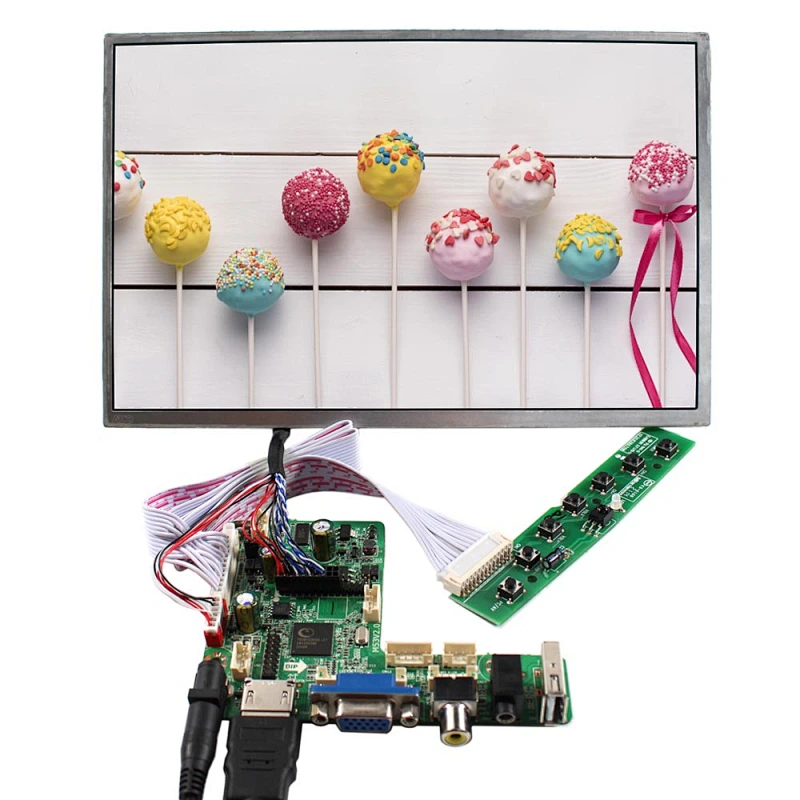

Packing list :
1× HDMI VGA AV USB LCD Controller Board VS-M53V2.0
1×10.1inch B101EW05 1280X800 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
