Model NO.
K002870-VS-V56SP-V1+14inch1600x900
Quantity:

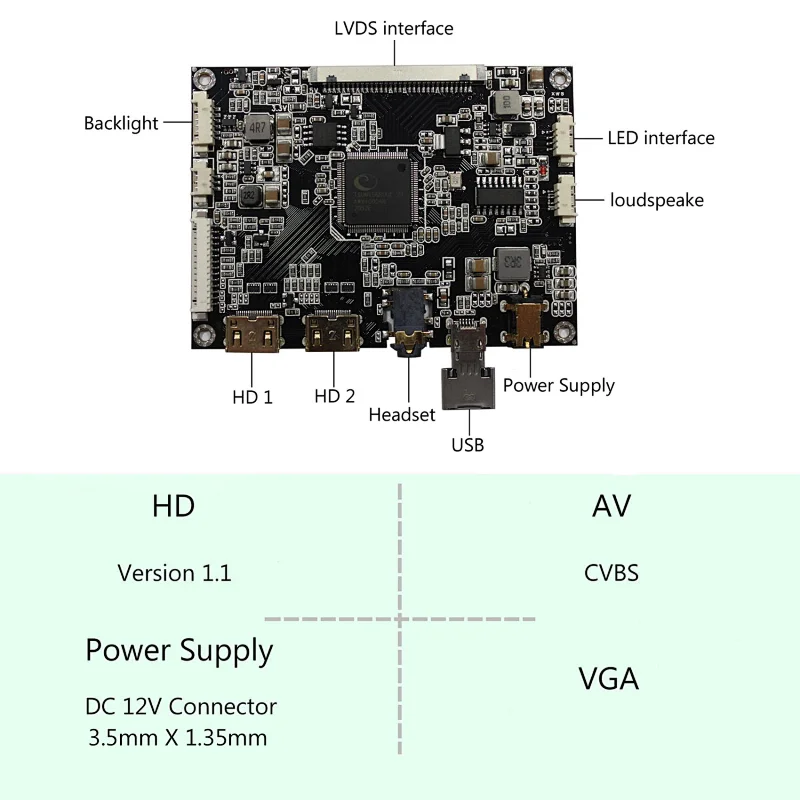

LCD Controller Board:
Mini HD Board Work for 30Pin LVDS LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2xHD Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On

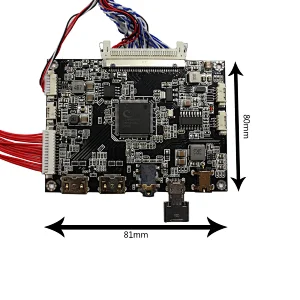

Board Size:82mm x 60mm x 5mm
14"1600X900 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1600RGB)×900
Outline Size 320.4 × 205.1× 5.4(H×V×D)
Display Area 309.6× 174.2 (H×V)
Brightness 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 65/65/55/55 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins

Backlight  WLED
Input Voltage  3.3V (Typ.)

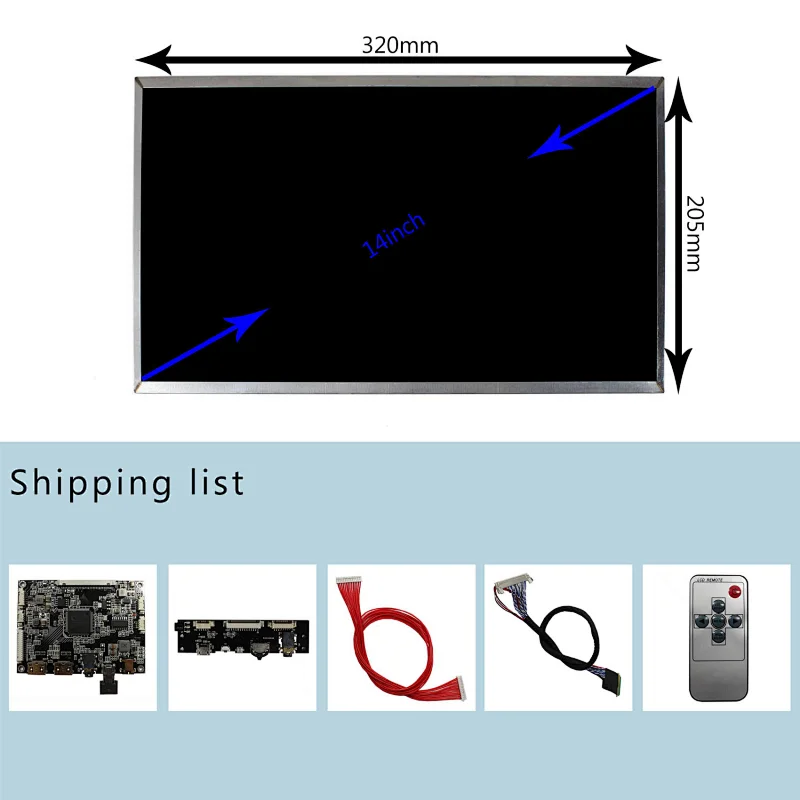

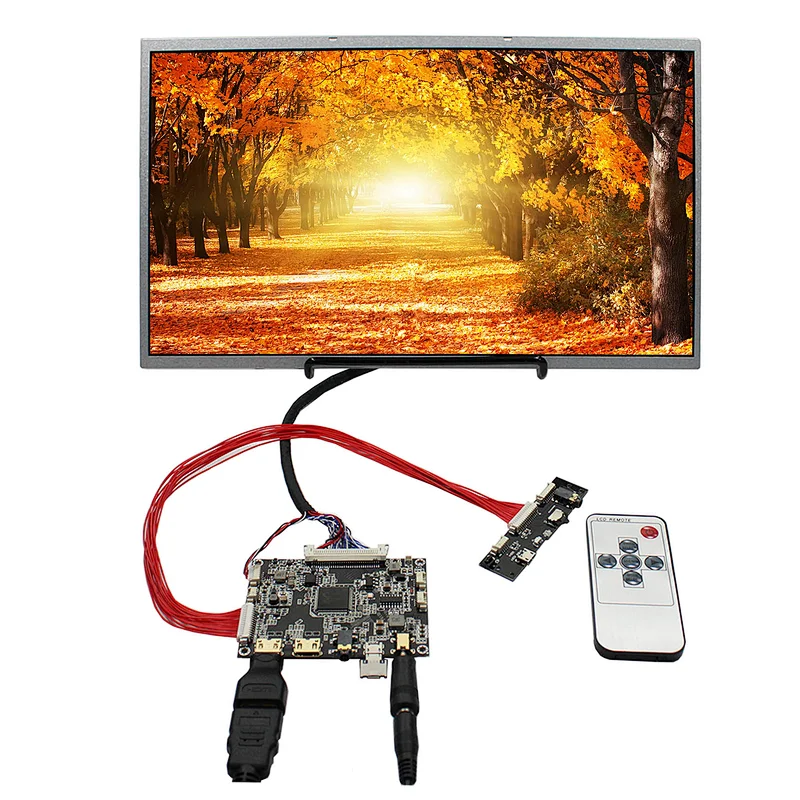

Packing list :
1× 2 HD Mini LCD Controller VS-V56SP-V1
1× 14"1600X900 LCD Screen
1× Inverter Board

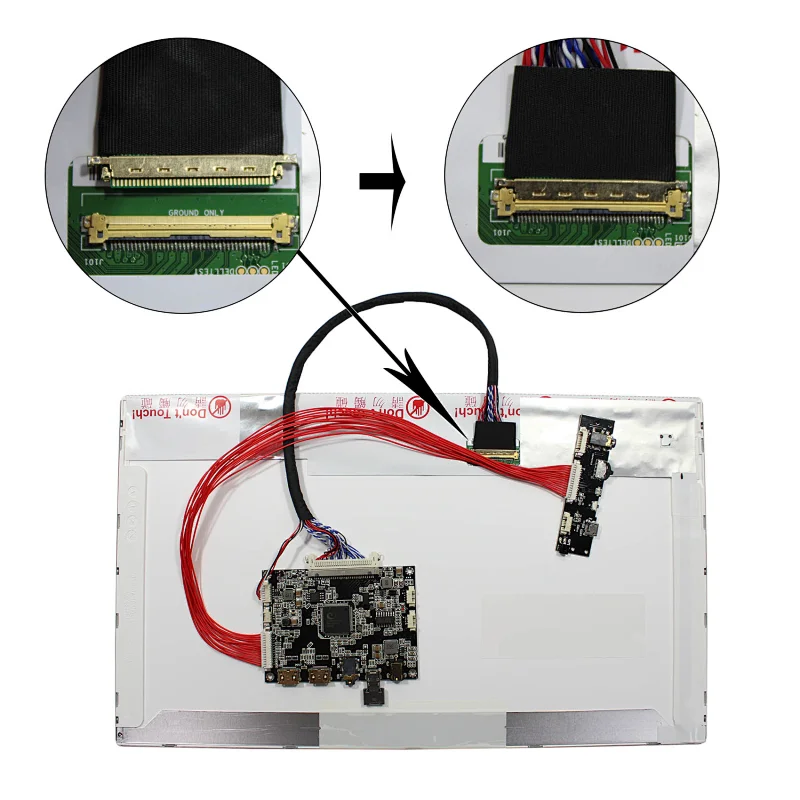

1× LVDS Cable
1× Keyboard With Cable
