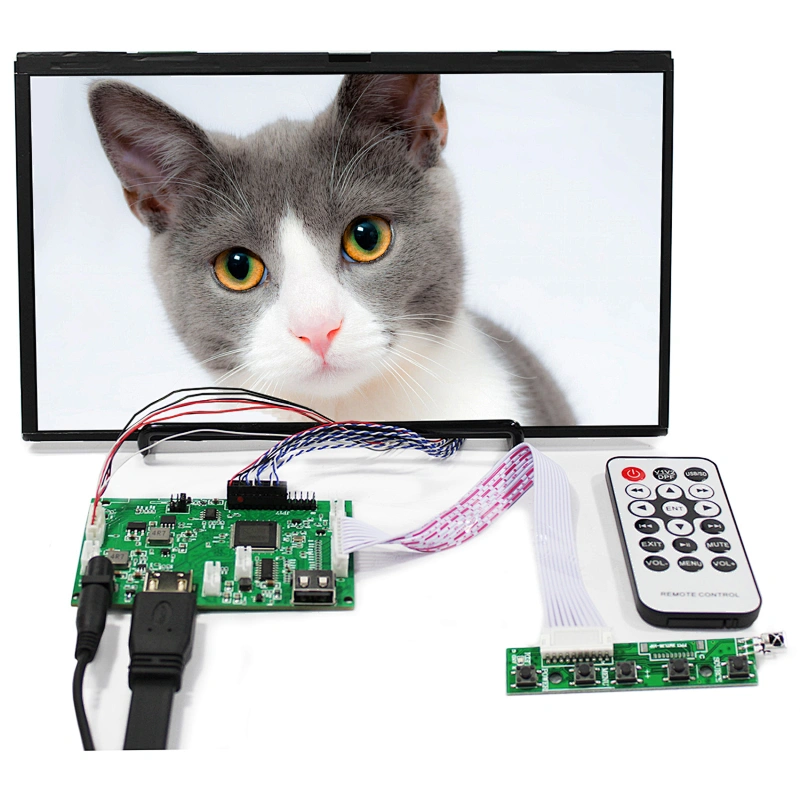

10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board

10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HD-MI LCD Controller Board

Model NO.
K002730-VS-TY2660HU-823+B101XAN01.3 1366x768 IPS
Quantity:

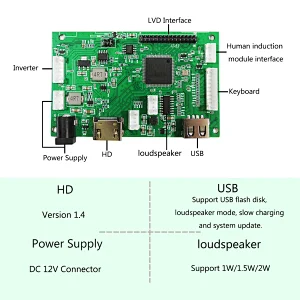

LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

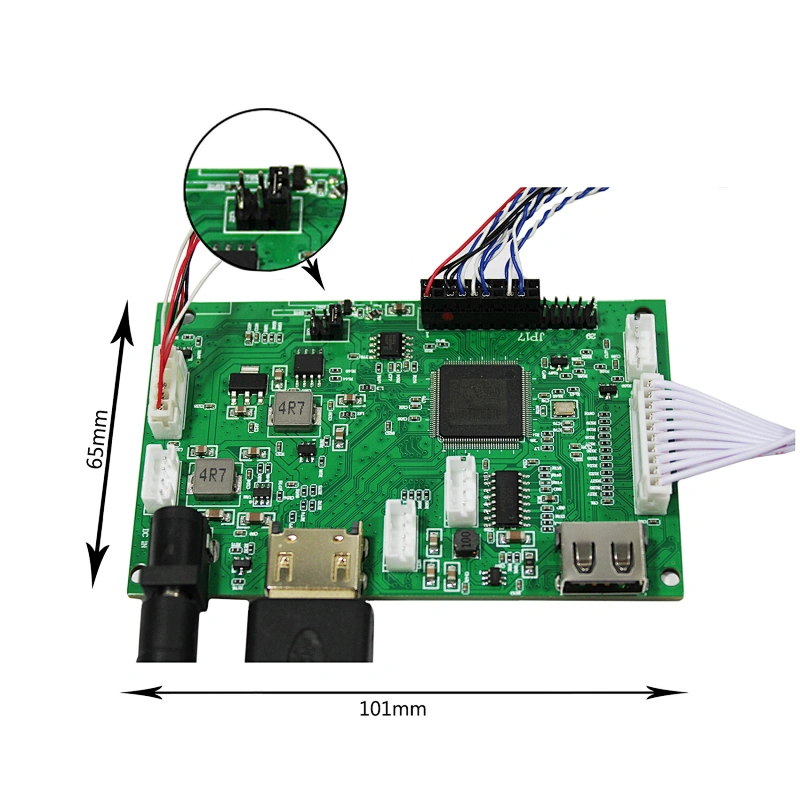

Board Size: 90mm x 51mm x 14mm
10.1"B101XAN01.3 1366X768 LCD Screen:
Display Mode  AHAV, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 230.62 × 135.81×0.8(H×V×D)
Display Area 222.52× 125.11 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 40 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

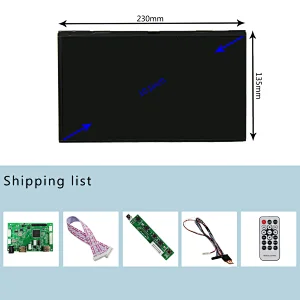

Packing list :

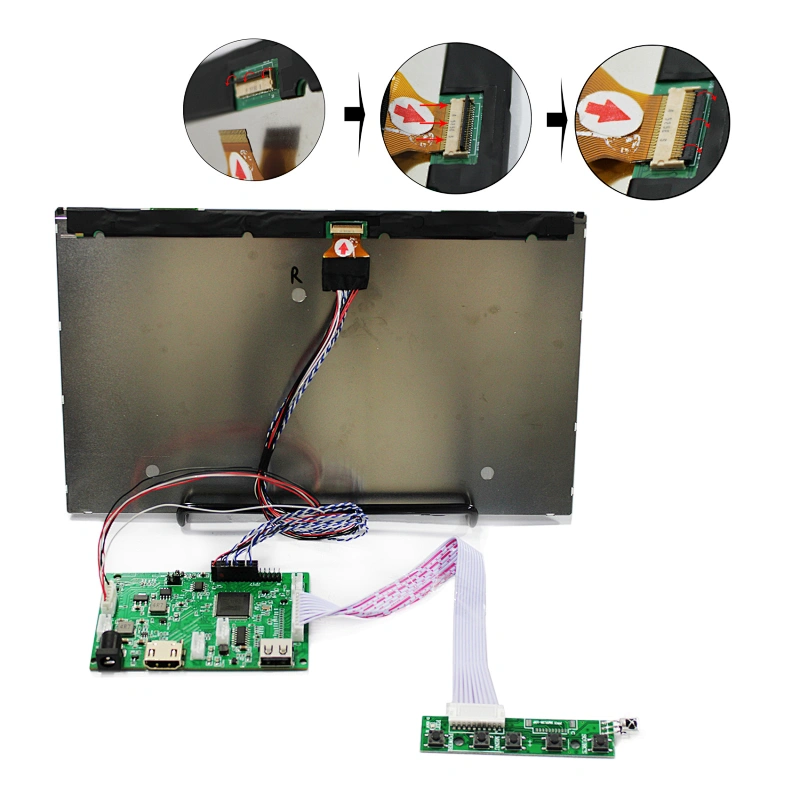

1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1× 10.1inch B101XAN01.3 1366X768 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control
