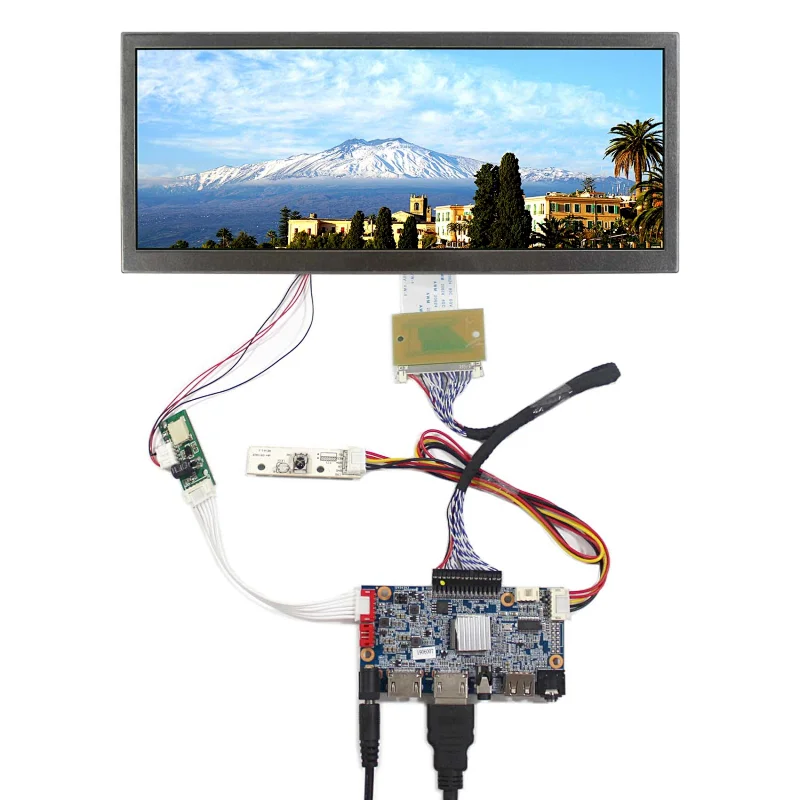

10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board
10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board

10.3inch HSD103KPW2-A10 1920X720 TFT-LCD Screen with HDMI USB LCD Controller Board

Model NO.
K002568-VS-56S1HSD103KPW2-A10 1920X720
Quantity:

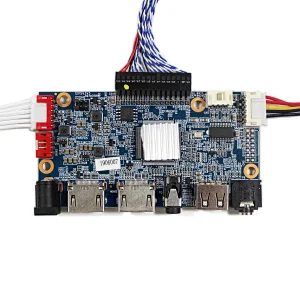

LCD Controller Board:
HDMI USB LCD Controller Board Work for 10.3 in LVDS LCD Screen
Input Power Adapter: 12Vdc more than 2A
Come In Standby Model When Not Input Signal
Standby Model <0.3W
OSD: Support Menu Contrast Brightness
Audio Input: HDMI USB
Audio Output: Speaker Earphone
Key Board: Power Menu Up Down Exit
Language: English
Board Size: 90mm x 40mm x 15mm

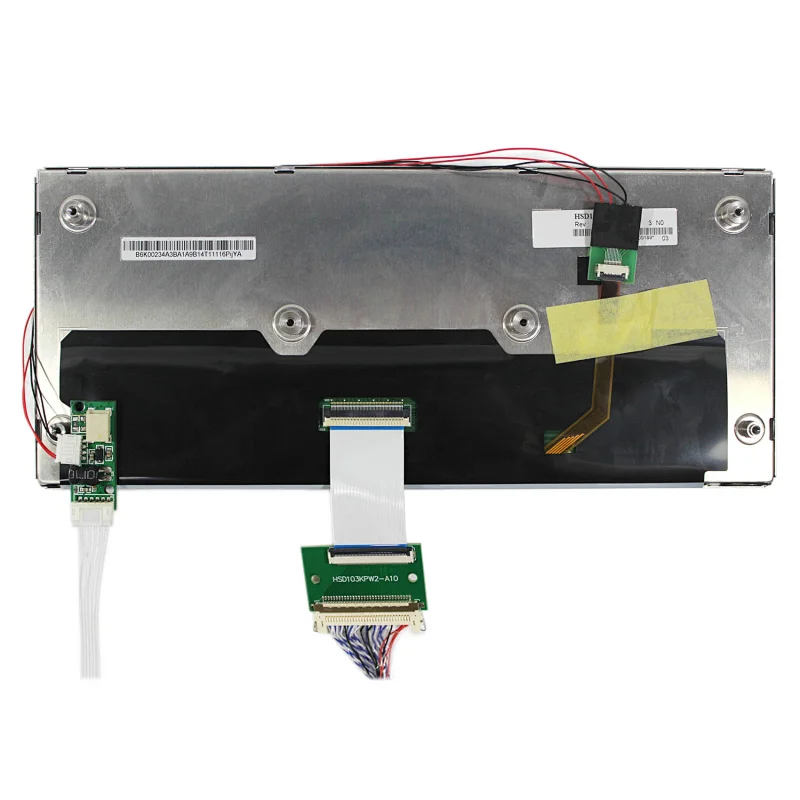

10.3"HSD103KPW2-A10 1920X720 LCD Screen:
DisplayNew Mode IPS Pro, Normally Black, Transmissive
Resolution 1920(RGB)×720
Outline Size 259.8×112×15.7(H×V×D)
Display Area 243.6×91.4 (H×V)
Brightness850 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins
Backlight  9S4P WLED
Input Voltage 3.3V (Typ.)

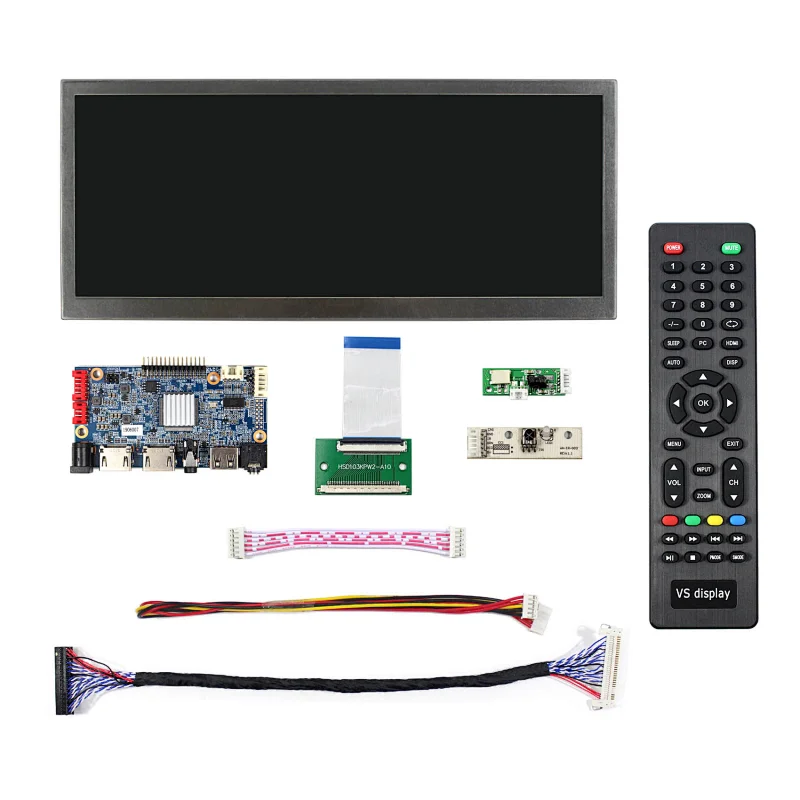

Packing list:
1× HDMI USB LCD Controller Board VS56S1
1×10.3"HSD103KPW2-A10 1920X720 LCD Screen
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
