10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board
10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board

10.4 Inch 800x600 TFT LCD Screen with HD-MI VGA AV USB LCD Controller Driver Board

Model NO.
K002756 T.VST56.031+VS104T-001A
Quantity:

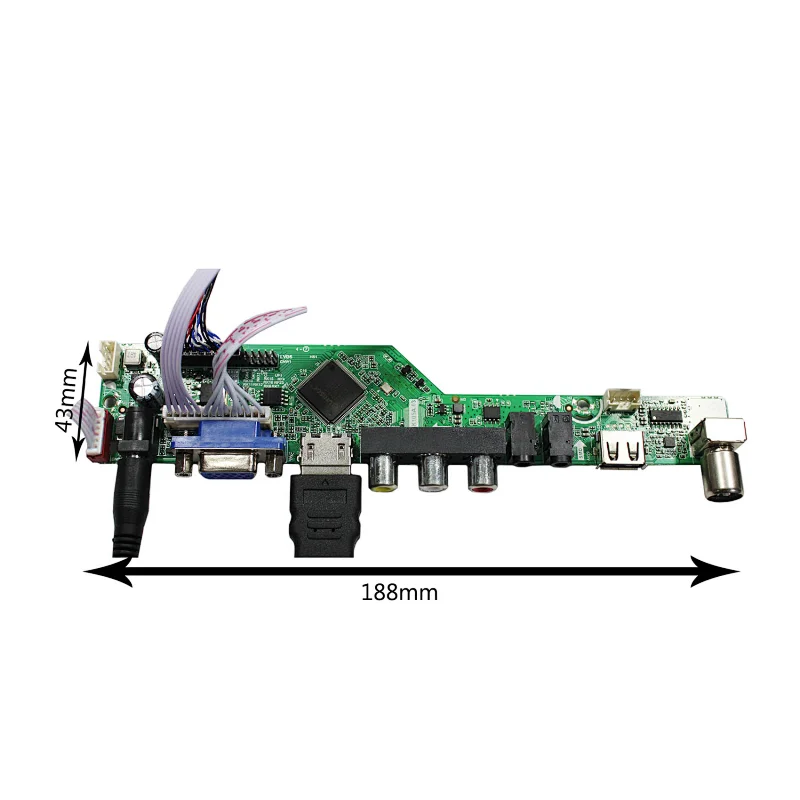

LCD Controller Board:
HD-MI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HD-MI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HD-MI VGA AV USB RF
Audio Input: HD-MI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 188mm x 43mm x 17mm
10.4" VS104T-001A 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

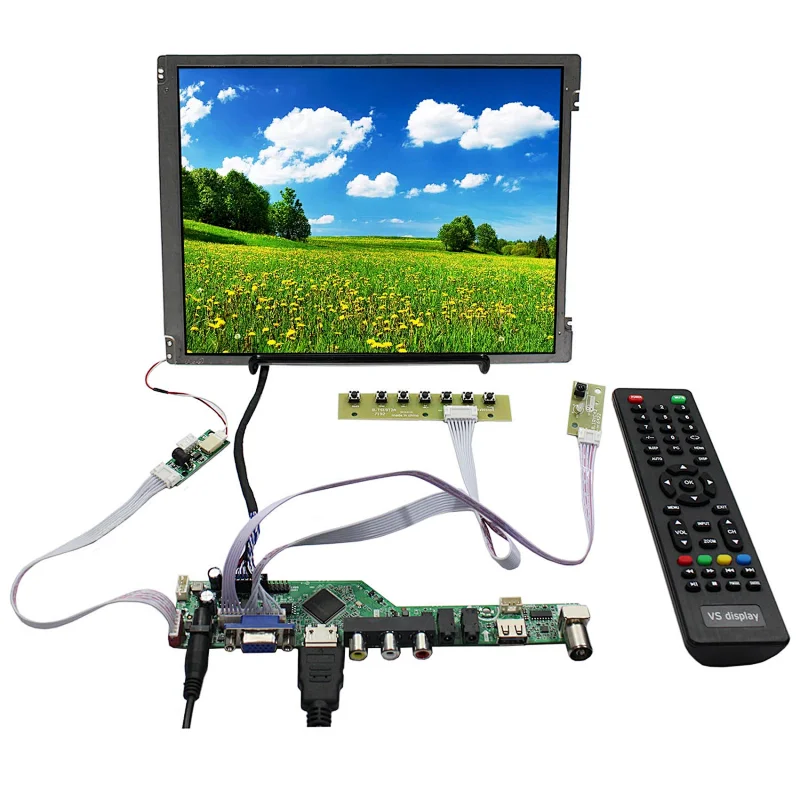

Packing list :
1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
10.4inch VS104T-001A 800X600 LCD Screen
 Converter Board
 LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
