10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board
10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board

10.4inch 1024x768 500nit TFT-LCD Screen With HDMI VGA AV USB LCD Controller Board

Model NO.
K002833 T.SK105A.03+VS104T-003A
Quantity:
LCD Controller Board:
HD-MI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HD-MI Port Support Transform Audio Compatible With HD-MI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HD-MI VGA AV USB RF
Audio Input: HD-MI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

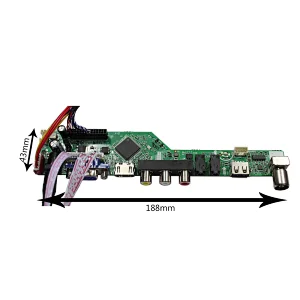

Board Size: 188mm x 43mm x 17mm
10.4"VS104T-003A 1024X768 LCD Screen:
Display Mode  IPS, Normally Black, Transmissive
Resolution 1024(RGB)×768[XGA]
Outline Size 225.8 × 174.3×5.6(H×V×D)
Display Area 211.2× 158.48 (H×V)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

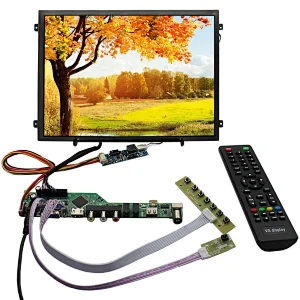

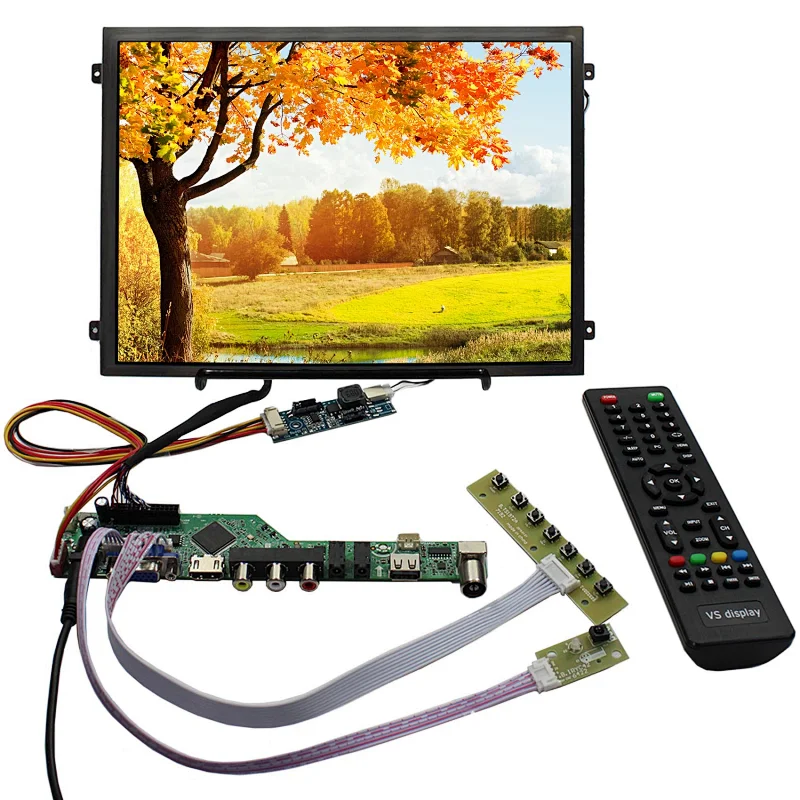

Packing list:
1× HD-MI VGA AV USB RF LCD Controller Board T.SK105A.03
1× 10.4inch VS140T-003A 1024x768 IPS LCD Screen1
1× LVDS Cable
1× Inveter Board
1×Keyboard With Cable
