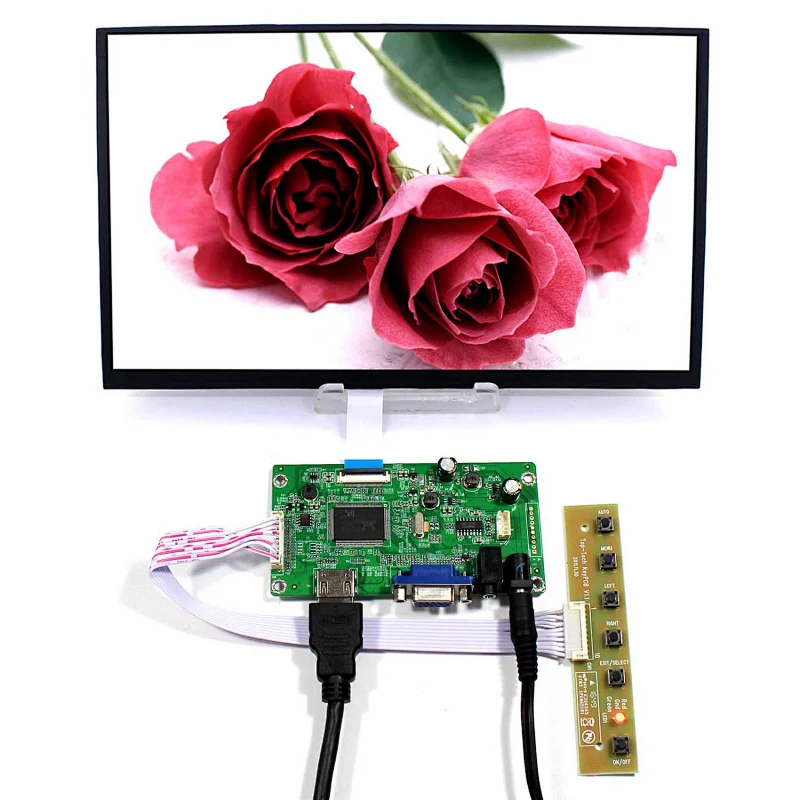

11.6" 1920x1080 M116X40 IPS TFT-LCD Screen With HDMI VGA LCD Controller Board

Model NO.
K001536-VS-RTD2556HV-V1+M116X40
Quantity:

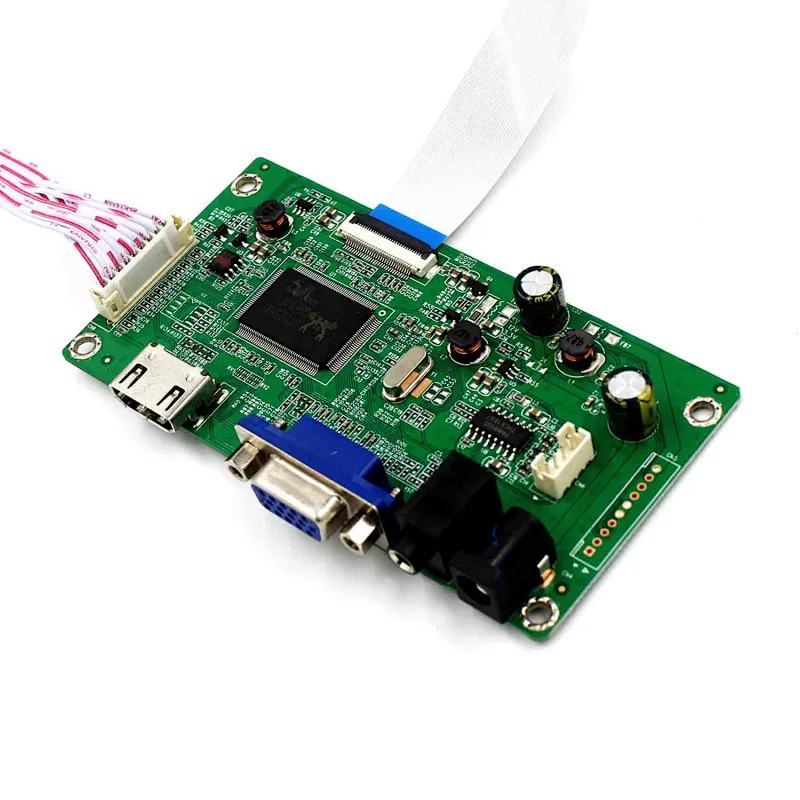

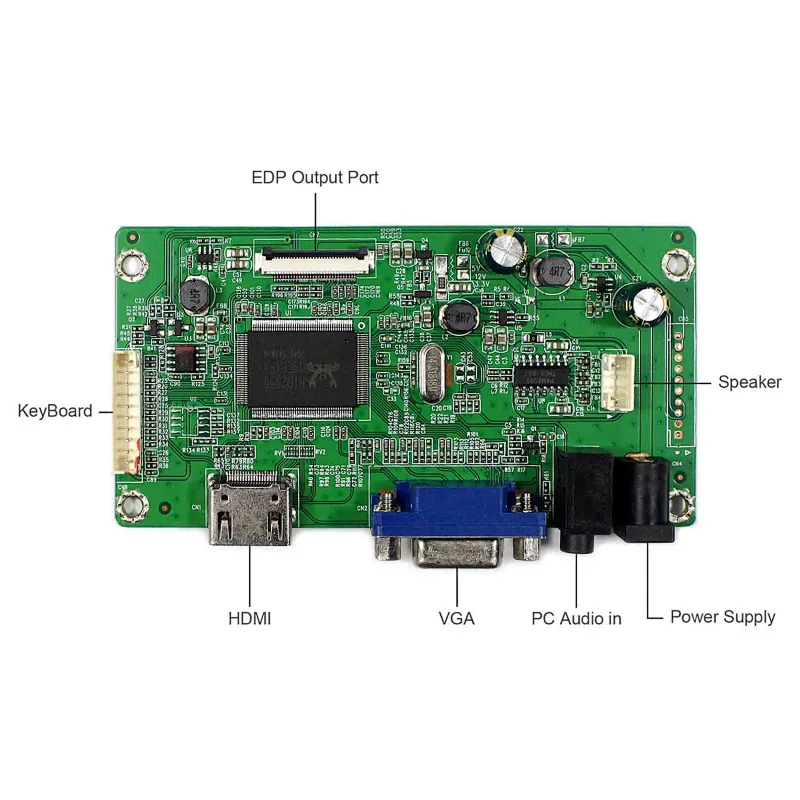

LCD Controller Board:
HDMI VGA Board Work for 30Pin EDP LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI PC-Audio In
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size:107mm x 55mm x 16mm

11.6"LCD Screen M116X40:
Display Mode N, ADS, Normally Black, Transmissive

Resolution 1920RGB)×1080
Outline Size 270.62 × 159.76 × 2.59(H×V×D)
Display Area 256.32 × 144.18 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)

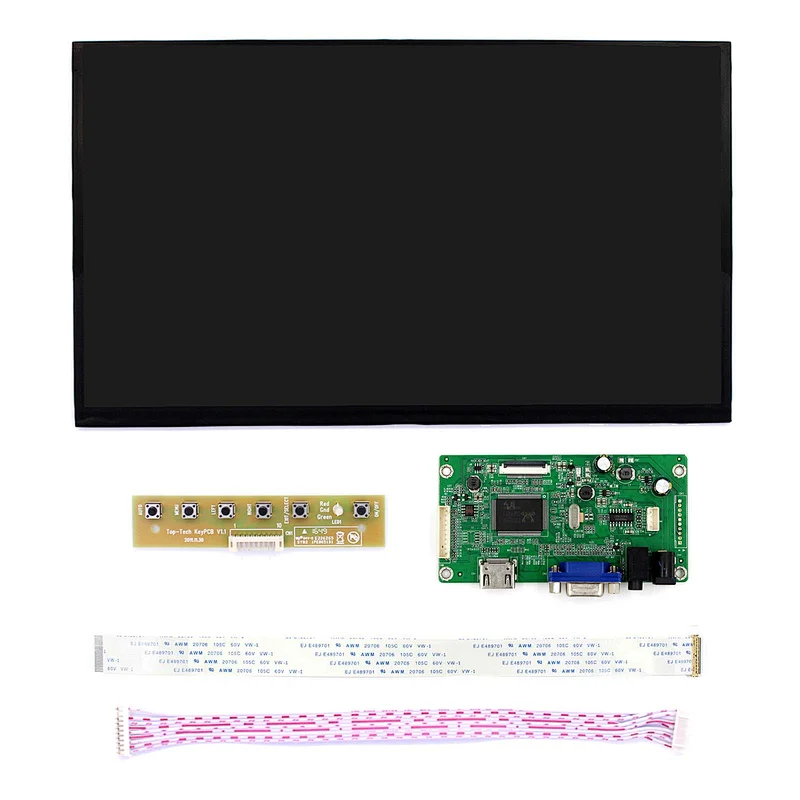

Packing list :
1×HDMI VGA LCD Controller Board VS-RTD2556HV-V1

1×11.6inch M116X40 1920X1080 IPS EDP interface LCD Screen
1× Signal Cable

1× Keyboard With Cable
