Model NO.
K003007 VS-TY2660-V823+AA121TD02 1280x800
Quantity:

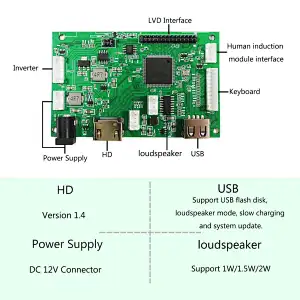

LCD Controller Board:
HD-MI.USB LCD Board Support Image flip 180degree
Automatic Brightness Adjustment
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HDMI: Support HDMI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

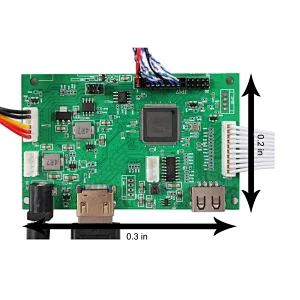

Board Size: 90mm x 56mm x 14mm
12.1"1280X800 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 283× 185.1×10(H×V×D)
Display Area 216.12 × 163.2 (H×V)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)
8inch 800x600
PD080SL3

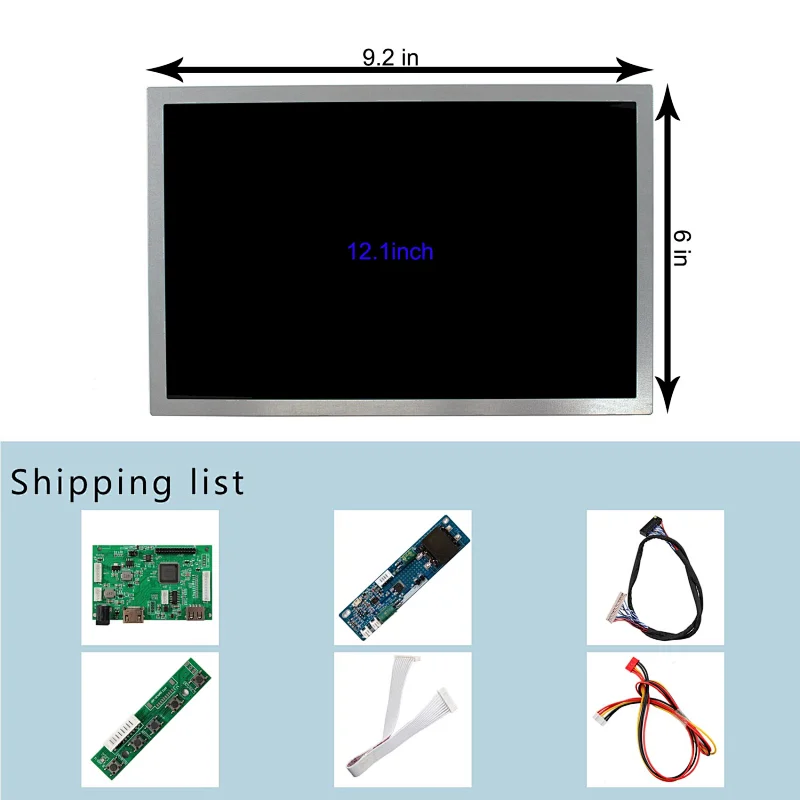

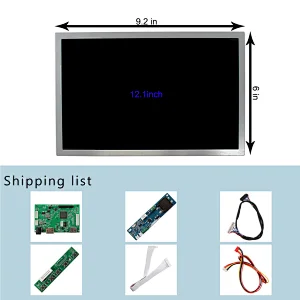

Packing list :
1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1× 12.1inch 1280x800 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
