  5. 12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
Print This Page
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1
12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1

12.1inch G121EAN01.1 1280X800 LCD Screen with VGA LCD Controller Board RT2270C 1280x800 lcd 12.1inch G121EAN01.1 1280X800 G121EAN01.1 1280X800 G121EAN01.1 12.1inch G121EAN01.1

Model NO.
K002393-RT2270C-A + G121EAN01.1 1280X800
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

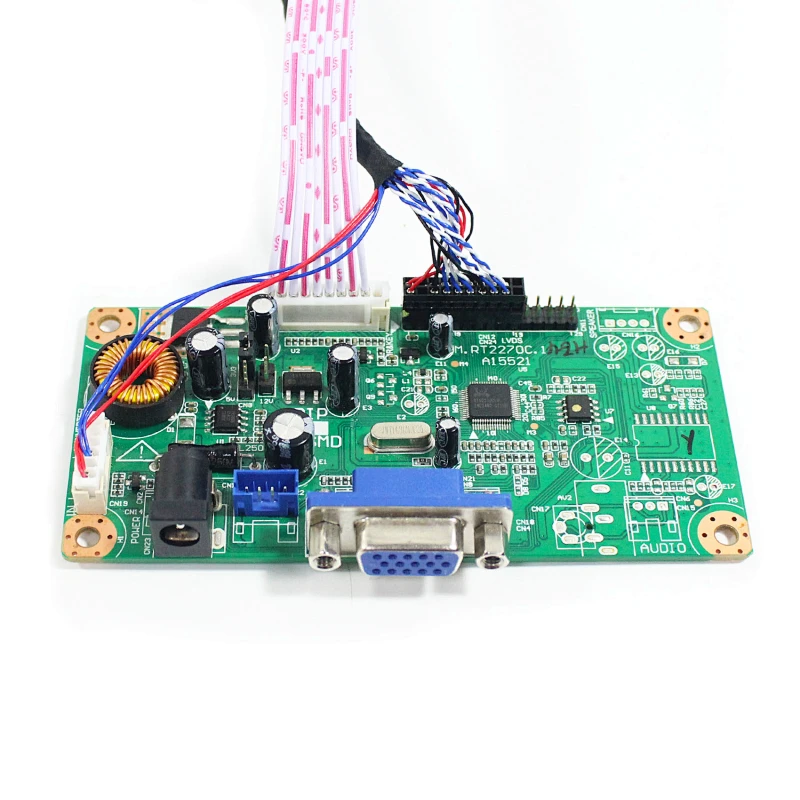

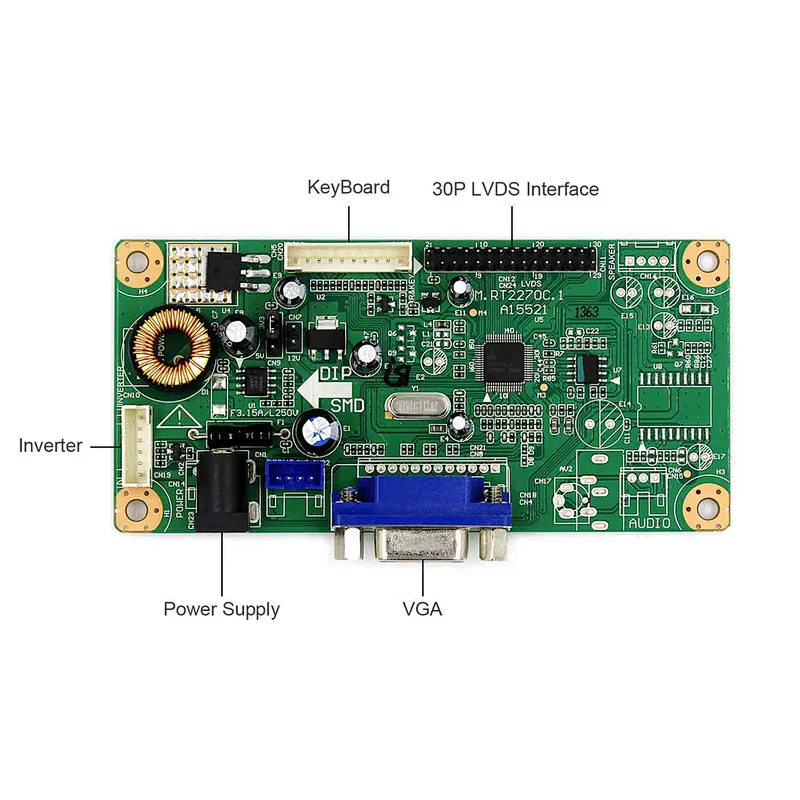

LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 52mm x 18mm

12.1"G121EAN01.1  1280X800 LCD Screen:
Display Mode  IPS, Normally White, Transmissive
Resolution1280RGB)×800
Outline Size 278 × 184 × 9.29 (H×V×D)
Display Area 261.12(W)×163.2 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

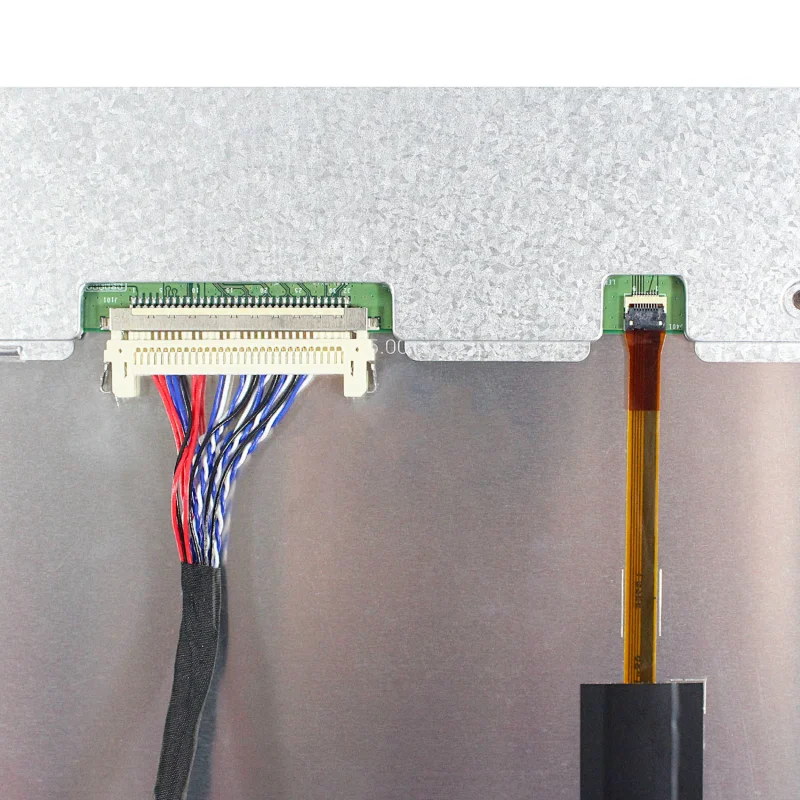

Signal Interface  30 pins LVDS (1 ch,6/8-bit) , Connector 30Pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

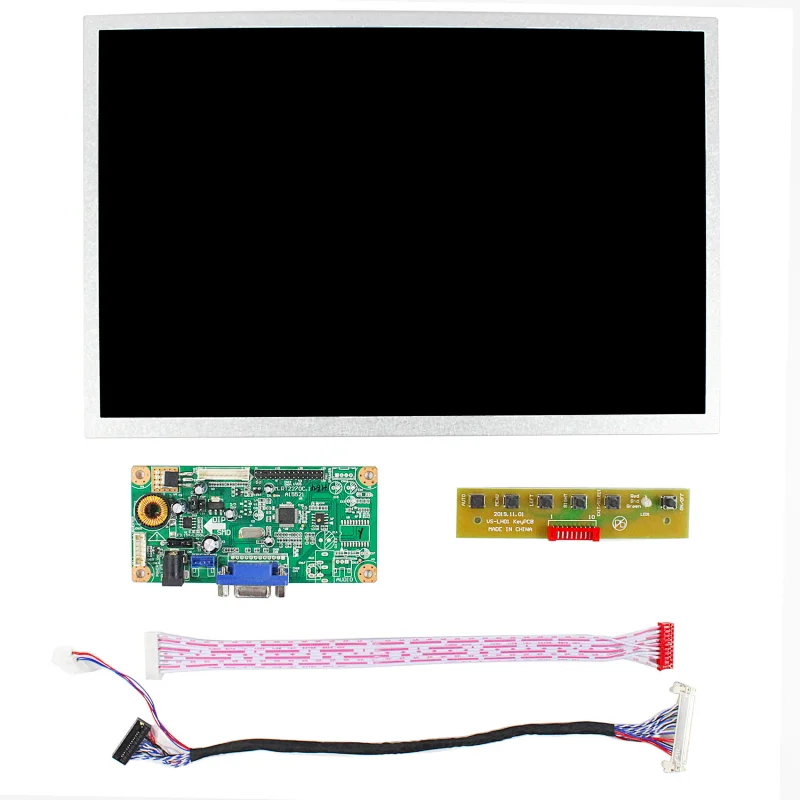

Packing list :
1× VGA LCD Controller Board RT2270C-A
1×12.1inchG121EAN01.1  1280X800 LCD Screen
1× WLED Inverter Board
1× LVDS Cable
1× Keyboard With Cable
