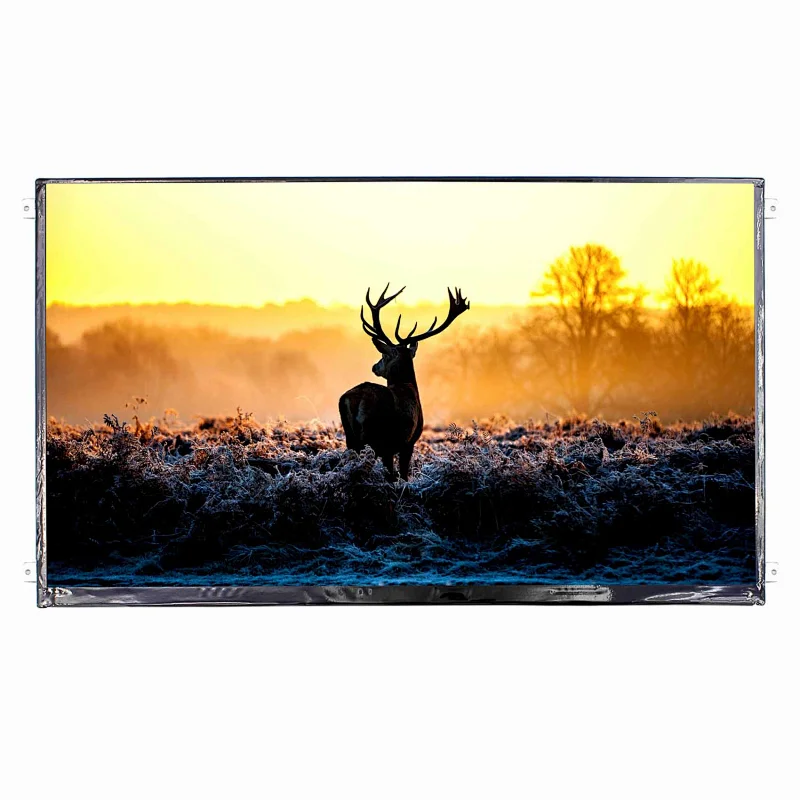

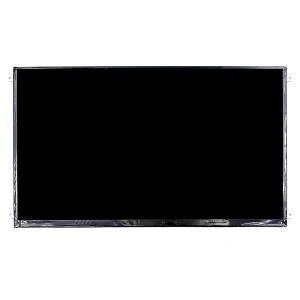

13.3inch B133HAN02.3 1920X1080 IPS eDP LCD Screen
13.3inch B133HAN02.3 1920X1080 IPS eDP LCD Screen
13.3inch B133HAN02.3 1920X1080 IPS eDP LCD Screen
13.3inch B133HAN02.3 1920X1080 IPS eDP LCD Screen
13.3inch B133HAN02.3 1920X1080 IPS eDP LCD Screen

13.3inch B133HAN02.3 1920X1080 IPS eDP LCD Screen

Model NO.
A000177-EDP-B133HAN02.3 1920X1080
Quantity:
13.3"LCD Screen B133HAN02.3:
Display Mode AHVA, Normally Black, Transmissive

Resolution 1920RGB)×1080
Outline Size 317.2(W)×180.48(H) ×5(D) mm
Display Area 293.472(W)×165.078(H) mm
Brightness 400 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)
Packing list :
1×13.3inch B133HAN02.3 1920X1080 IPS LCD Screen
