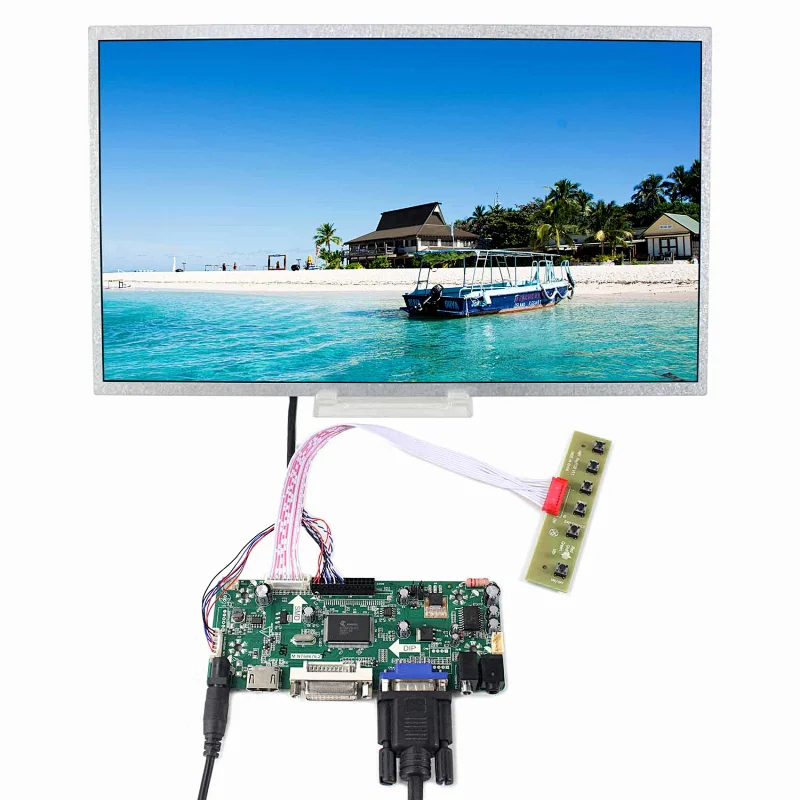

14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board
14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board

14inch 1366x768 N140B6 HT140WXB LCD Screen with VGA DVI HDM I LCD Controller Board

Model NO.
K000348-M.NT68676.2A+LTN140AT02 LTN140AT07 LP140WH1 BT140XW02
Quantity:

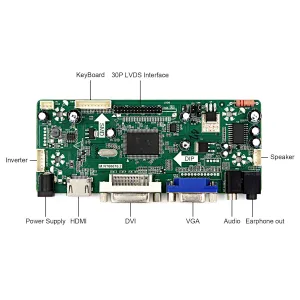

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

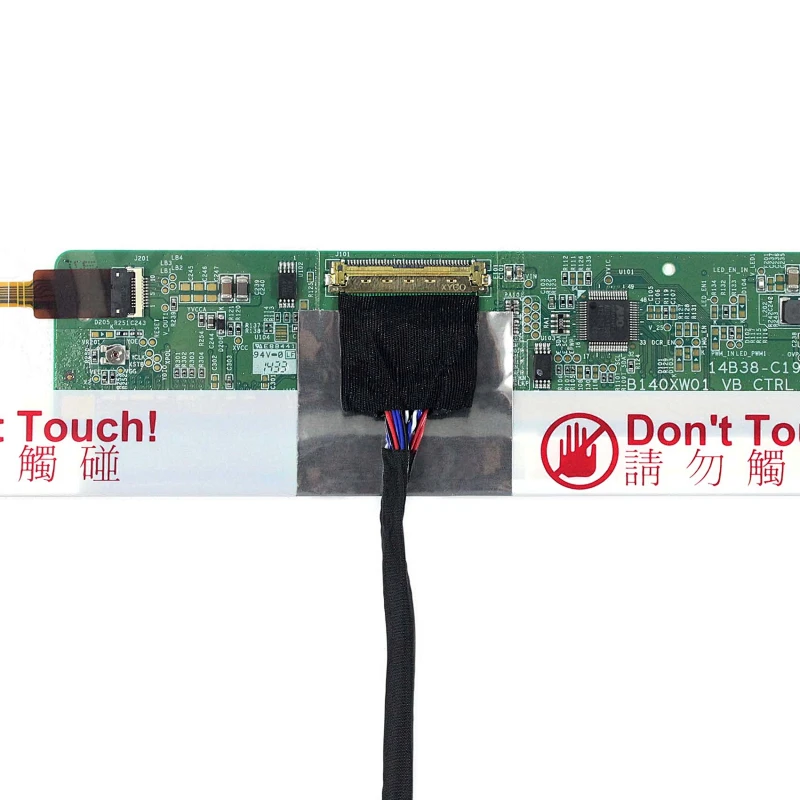

14"1366X768 LED Backlight LCD Screen:
Display Mode  MVA, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 323.5 ×192×5.2(H×V×D)
Display Area 309.399× 173.952 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 45/45/30/30 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

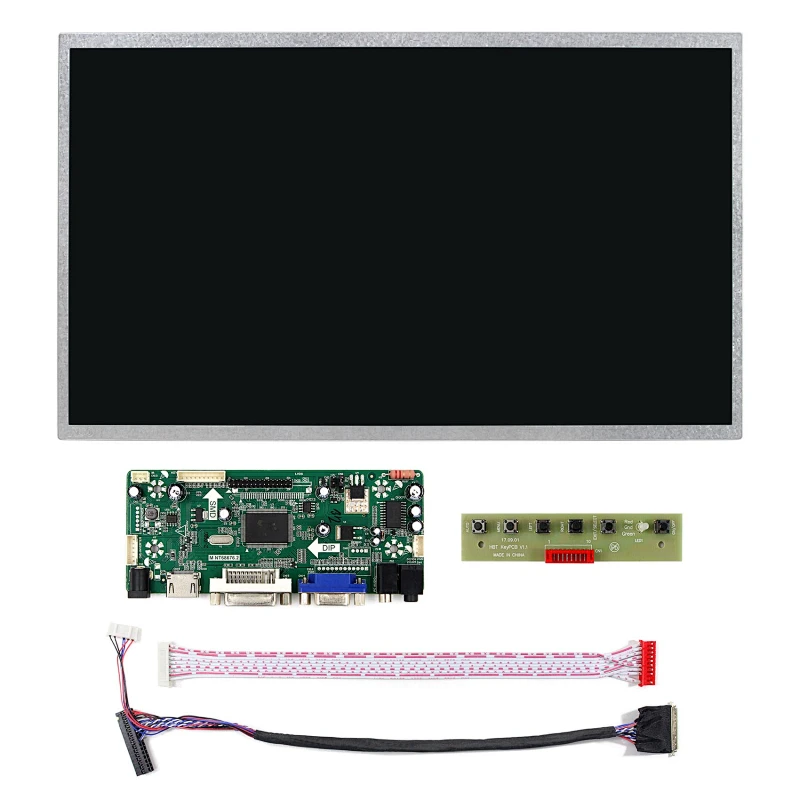

Packing list :
 HDMI VGA DVI LCD Controller Board M.NT68676
14inch 1366x768 LED Backlight LCD Screen(One of LTN140AT02 BT140XW02 HT140WXB HSD140PHW1 LTN140AT07 LTN140AT26 LP140WH1 N140B6)
 LVDS Cable
 Keyboard With Cable
