14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board
14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board

14inch 1600x900 TFT-LCD Panel Laptop Display with HDMI VGA AUDIO Controller board

Model NO.
K000351-M.NT68676.2A+IPEX40P0.5 2ch 6bit+B140RW02-V03 1600x900
Quantity:

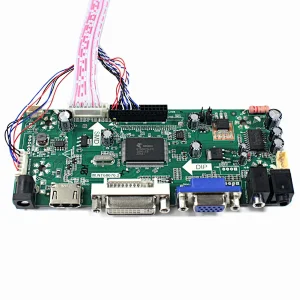

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
14" 1600X900 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution1600RGB)×900
Outline Size 320.4×205.1×3.6(H×V×D)
Display Area 309.6 ×174.15(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]

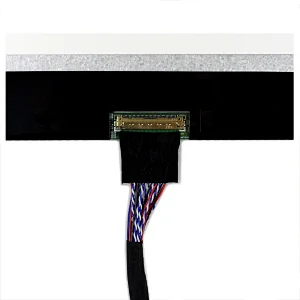

Signal Interface  LVDS(2 ch, 6-bit) , Connector , 40pins

Backlight WLED
Input Voltage  3.3V (Typ.)

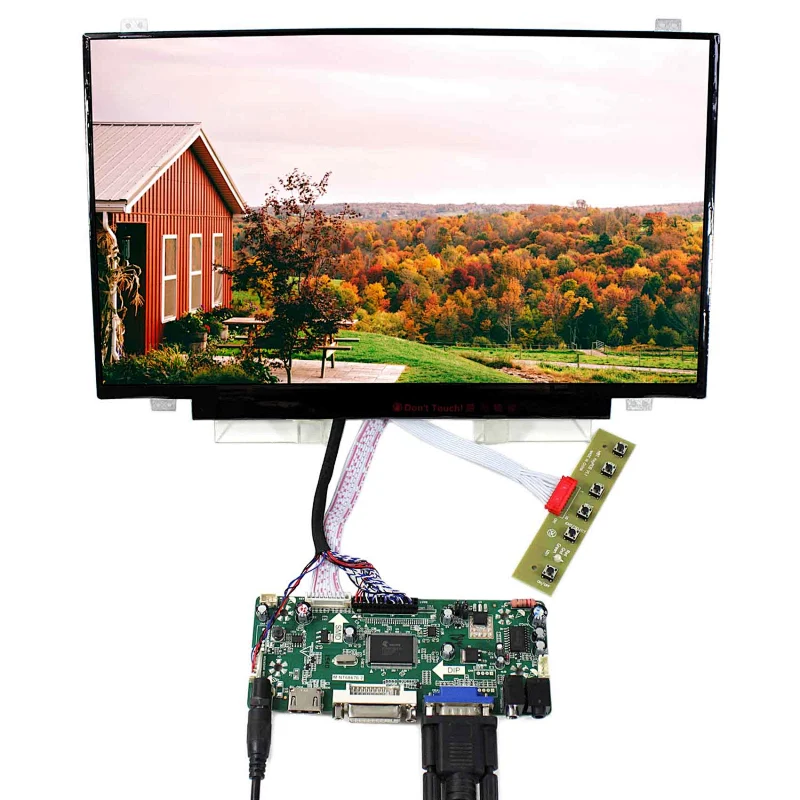

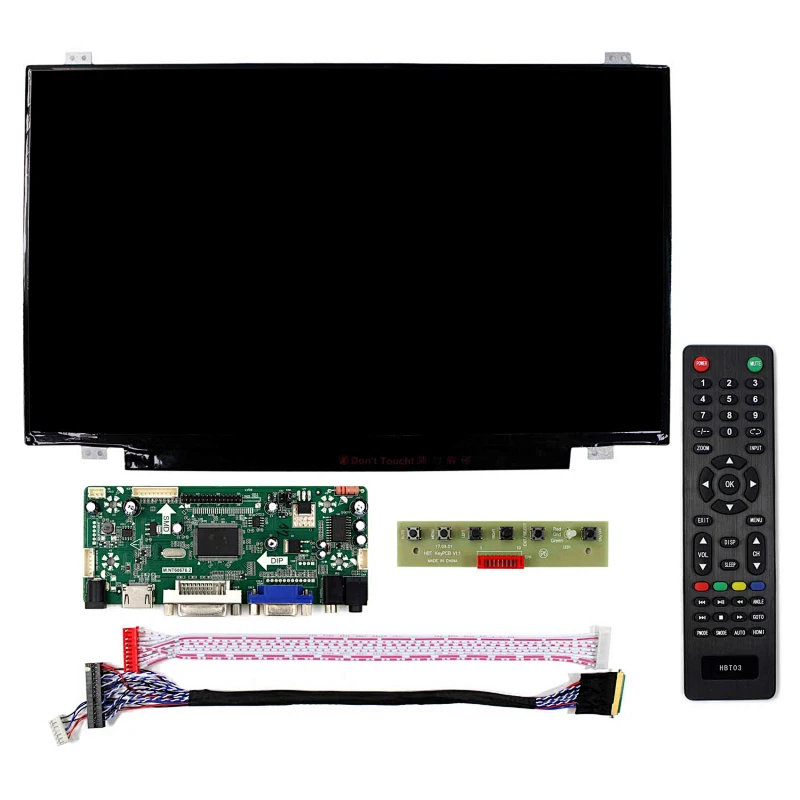

Packing list :
1× HDMI DVI VGA AUDIO LCD Controller board M.NT68676.2A
1× 14inch 1600x900 (One of B140RW02 V0 B140RW02 V1 B140RW02 V2 N140FGE-EA2 N140FGE-L31 LP140WD2 LTN140KT03) LCD Screen
1× 40pins 2ch 6bit LVDS Cable
1× Keyboard with Wire
