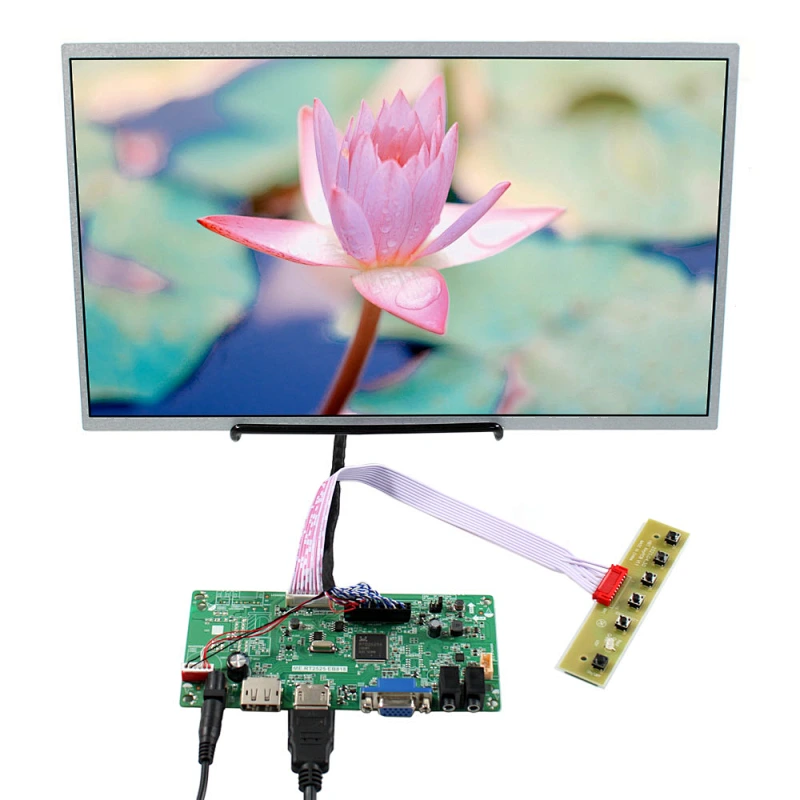

14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board
14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board

14inch 1600X900 TFT-LCD Replacement For Laptop Display with HD-MI DP Driver Board

Model NO.
K002980-ME.RT2525.EB818+14inch 1600x900 LTN140KT01 B140RW01 LP140WD1
Quantity:

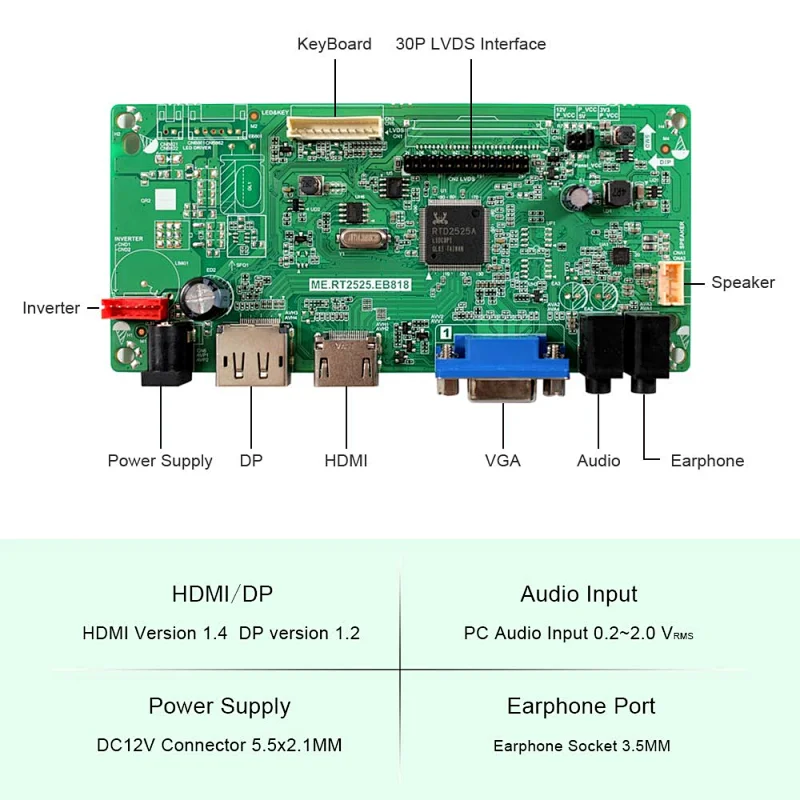

LCD Controller Board:
HDMI DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DP VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

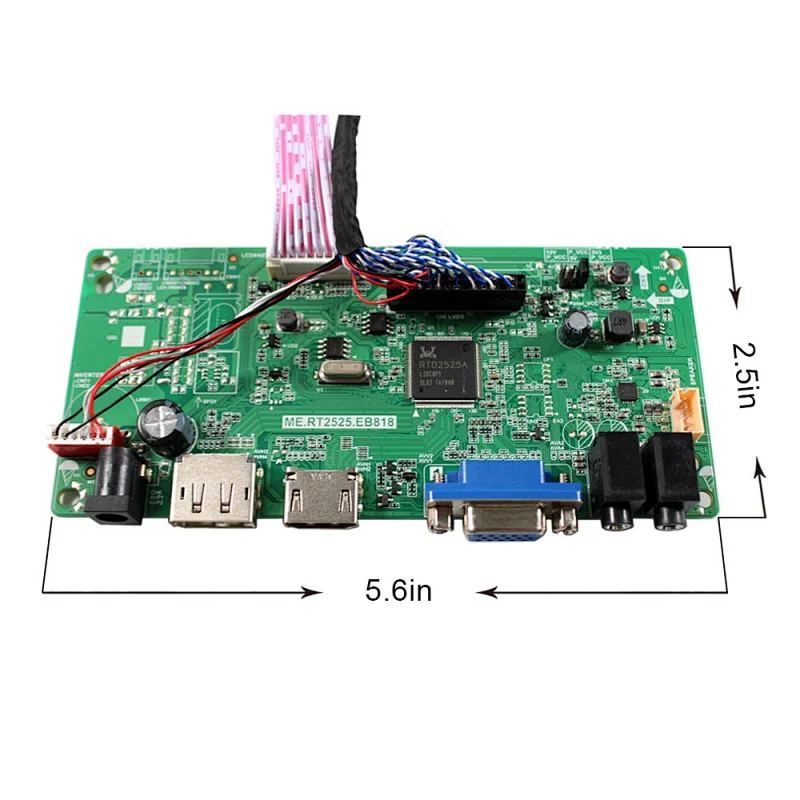

Board Size: 139mm x60mm x 17mm
14"1600X900 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1600RGB)×900
Outline Size 320.4 × 205.1× 5.4(H×V×D)
Display Area 309.6×174.2 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 65/65/55/55 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
BacklightWLED
Input Voltage 3.3V (Typ.)

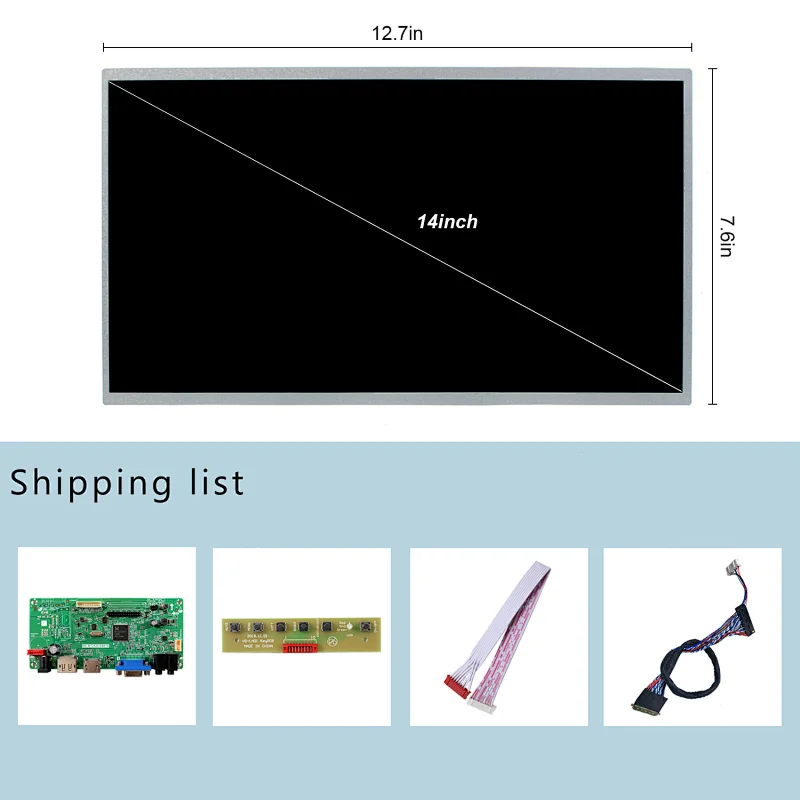

Packing list :
 HDMI DP VGA LCD Controller Board RT2525.EB818
1× 14inch 1600X900 LCD Screen (One of LTN140KT01 B140RW01 LP140WD1)
 LVDS Cable
 Keyboard With Cable
