Model NO.
K001633-VS-RTD2556HM-V1+B140HAN01.2
Quantity:

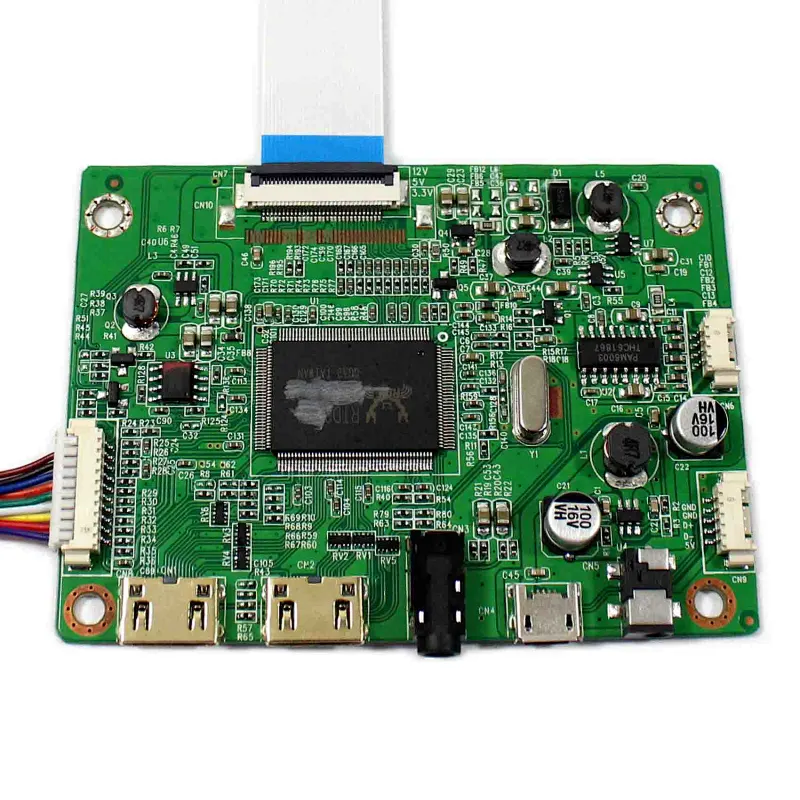

LCD Controller Board:
HDMI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HDMI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size:82mm x 60mm x 5mm
14"LCD Screen B140HAN01.1:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 320.4 × 205.1 × 3 (H×V×D)
Display Area 309.14 × 173.89 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

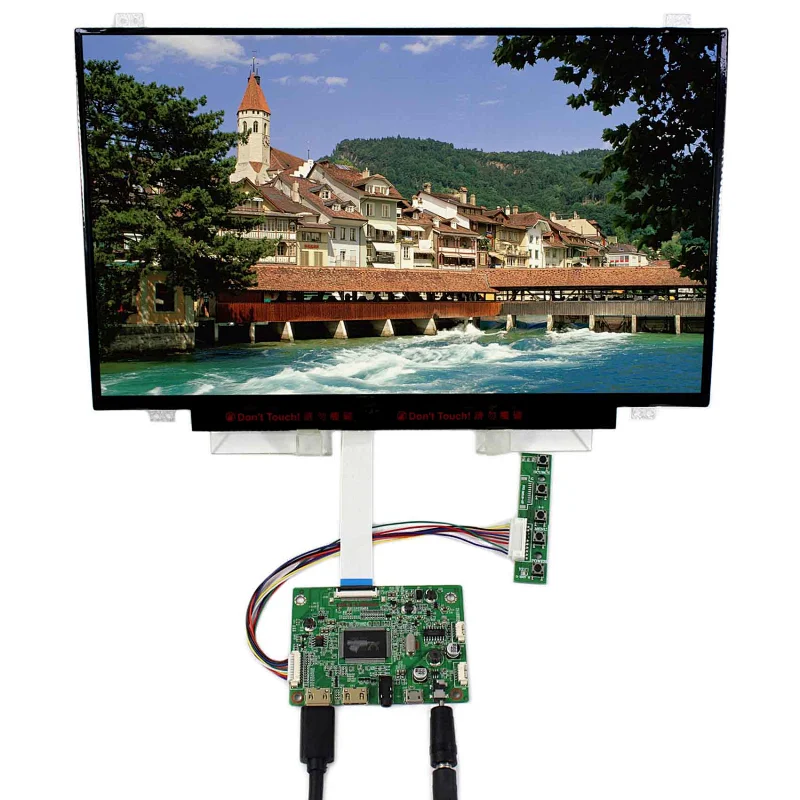

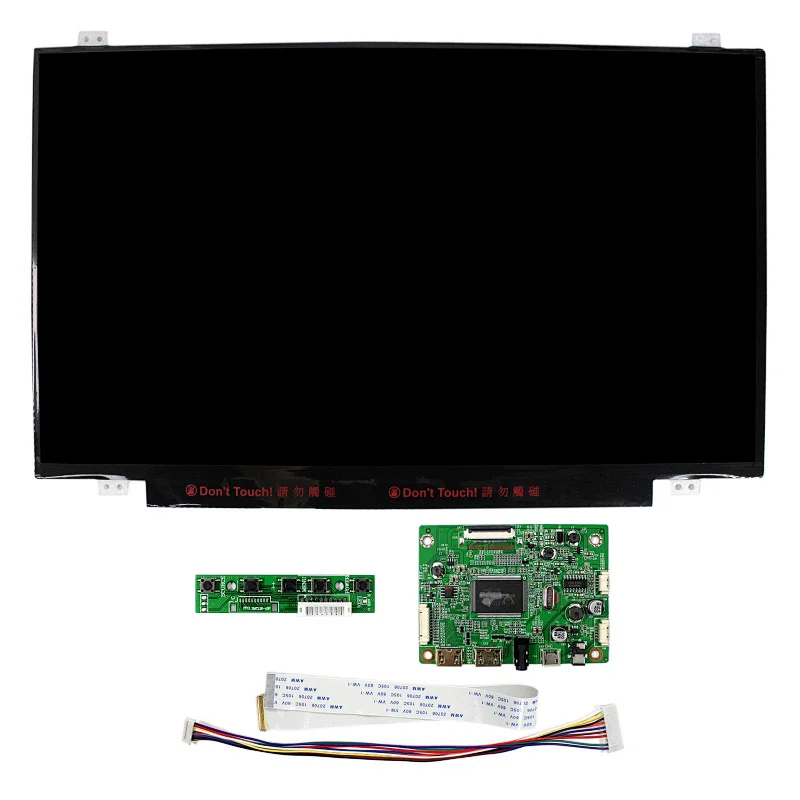

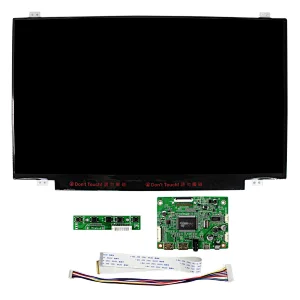

Packing list :
1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1
1×14inch B140HAN01.1 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
