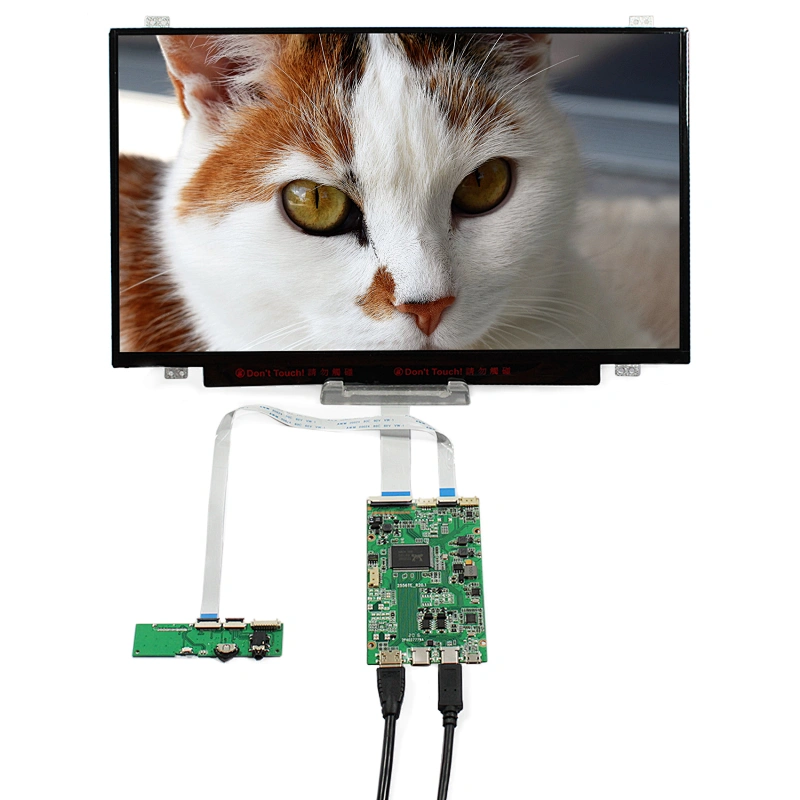

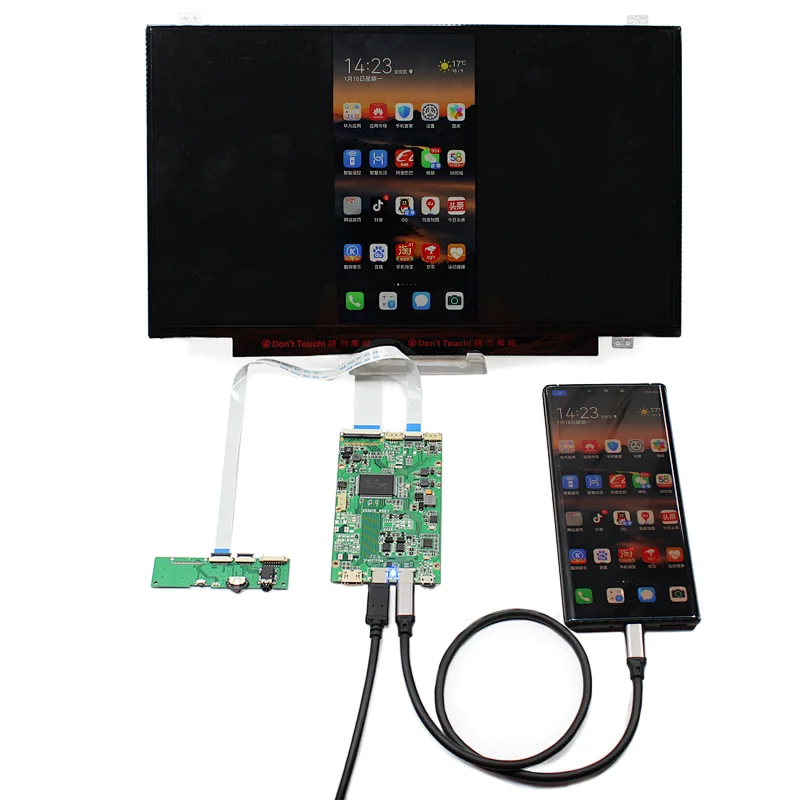

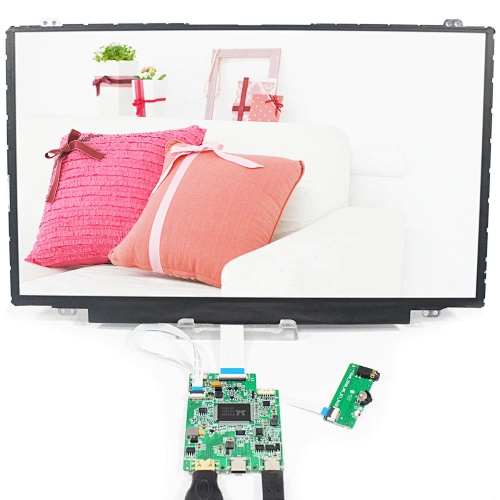

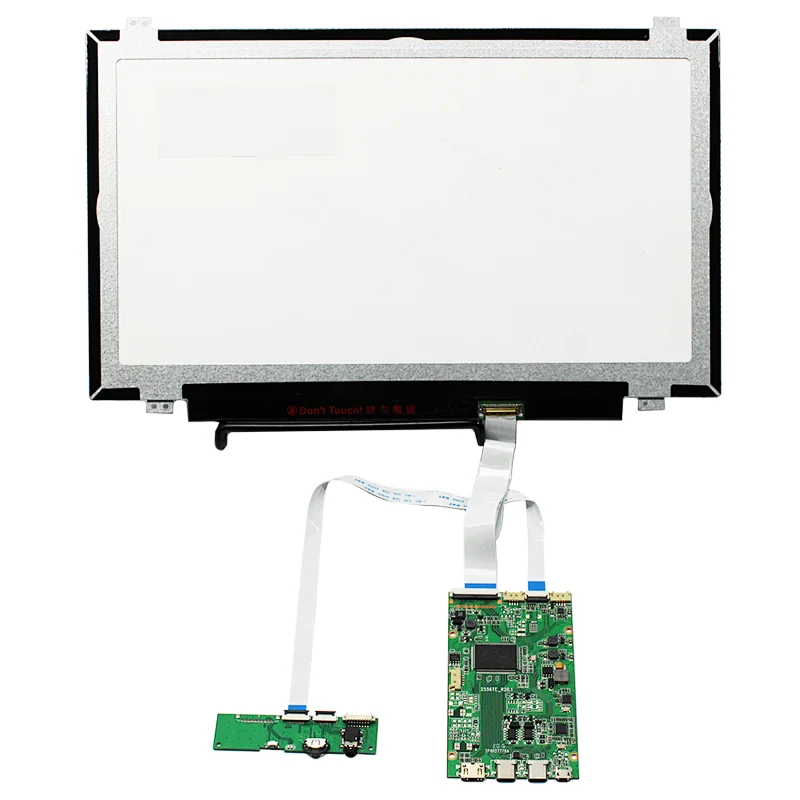

14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board
14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board

14inch NV140FHM EDP 1920X1080 IPS LCD Screen and HD-MI Type C Control Board

Model NO.
K002735-VS-RT2556T2K-40pin +14inch
Quantity:

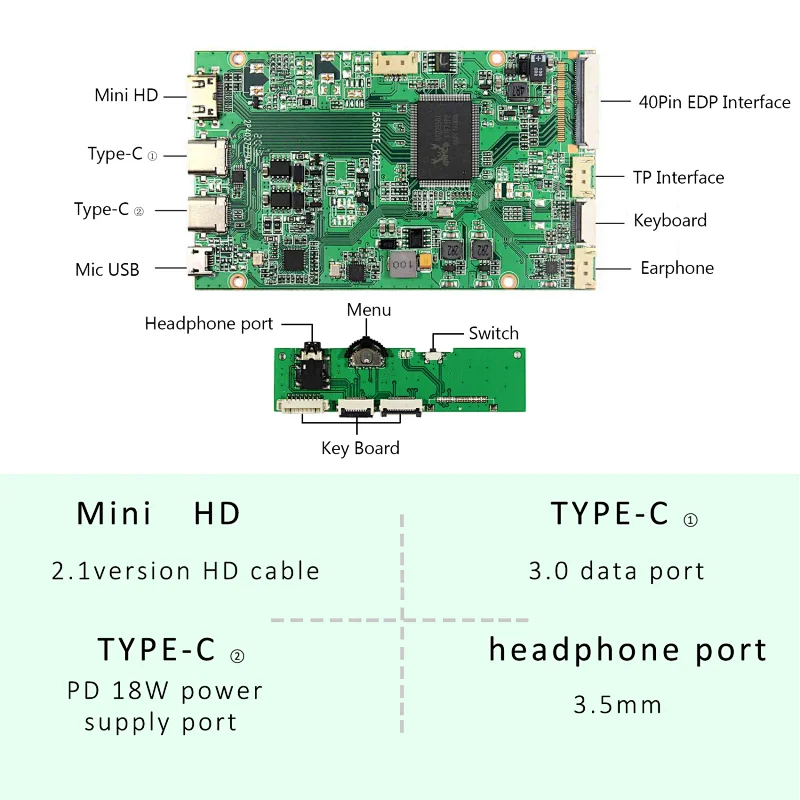

LCD Controller Board:
HD-MI Type C Control Board Work for 40Pin EDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HD-MI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese

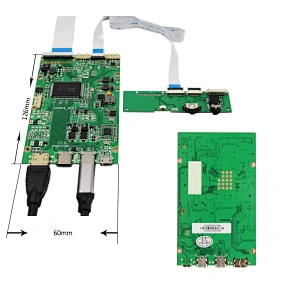

Board Size: 126mm x 60mm x 4mm
14"LCD Screen B140HAN01.1:
Display Mode N, ADS, Normally Black, Transmissive

Resolution 1920RGB)×1080
Outline Size 320.4 × 205.1 × 3 (H×V×D)
Display Area 309.14 × 173.89 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)
Packing list:
1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1×14inch EDP 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable



Send Message

* clear input
*

Related Products

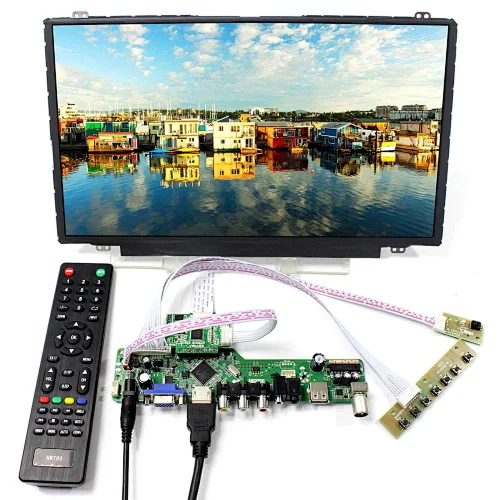

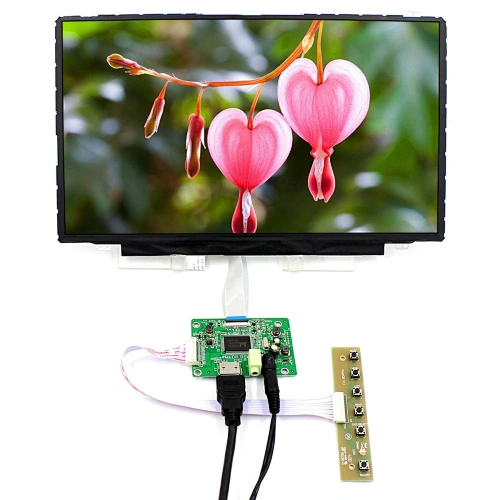

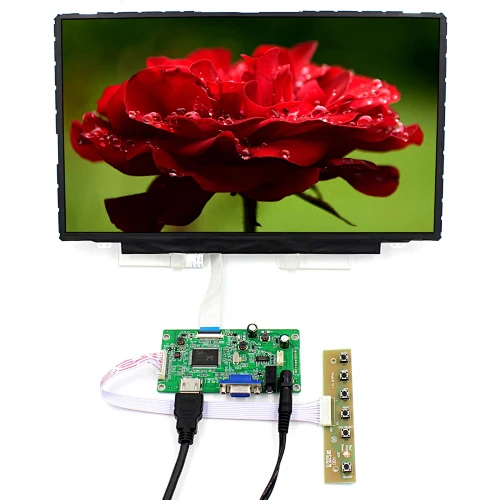

Model NO. K000348-M.NT68676.2A+LTN140AT02 LTN140AT07 LP140WH1 BT140XW02
