Model NO.
K001535-VS-RTD2556HV-V1+NV140FHM-N44
Quantity:

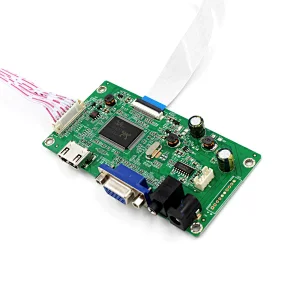

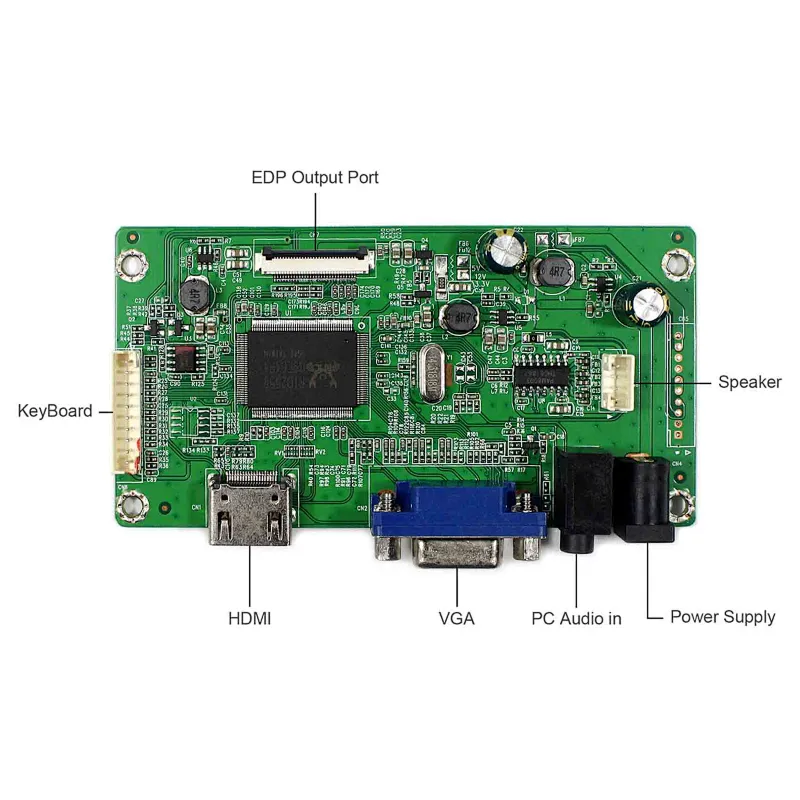

LCD Controller Board:

HDMI VGA Board Work for 30Pin EDP LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Audio Input: HDMI PC-Audio In

Audio Output: Speaker

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English

Board Size:107mm x 55mm x 16mm

14"LCD Screen NV140FHM-A20:

Display Mode N, ADS, Normally Black, Transmissive


Resolution 1920RGB)×1080

Outline Size 320.4 × 205.1 × 3 (H×V×D)

Display Area 309.31 × 173.99 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface eDP (2 Lanes) , Connector , 30 pins


BacklightWLED

Input Voltage  3.3V (Typ.)

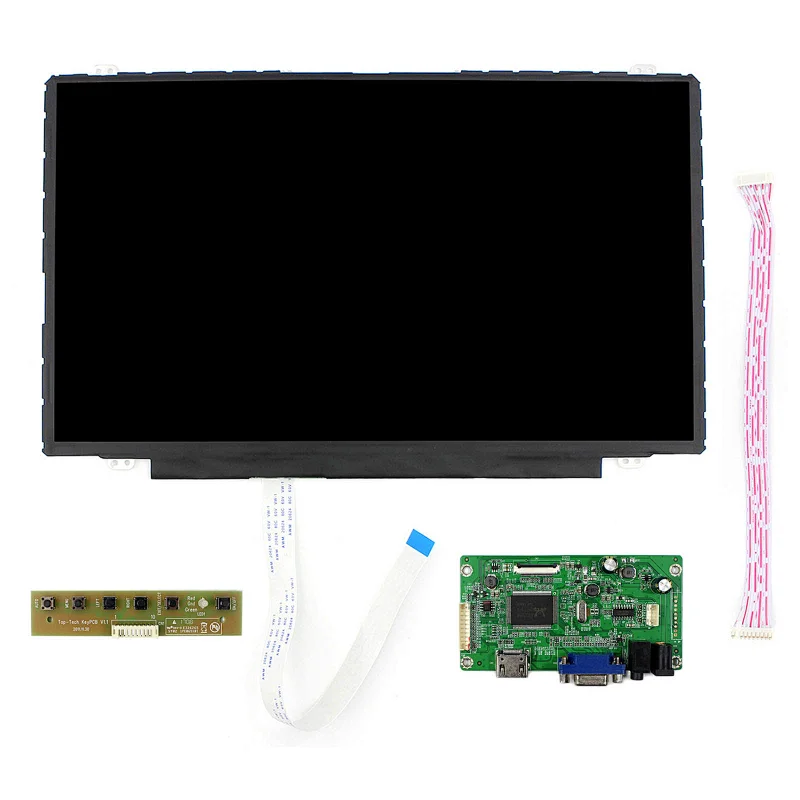

Packing list :

1× HDMI VGA LCD Controller Board VS-RTD2556HV-V1


1×14inch NV140FHM-A20 1920X1080 IPSLCD Screen

1× Signal Cable


1× Keyboard With Cable
