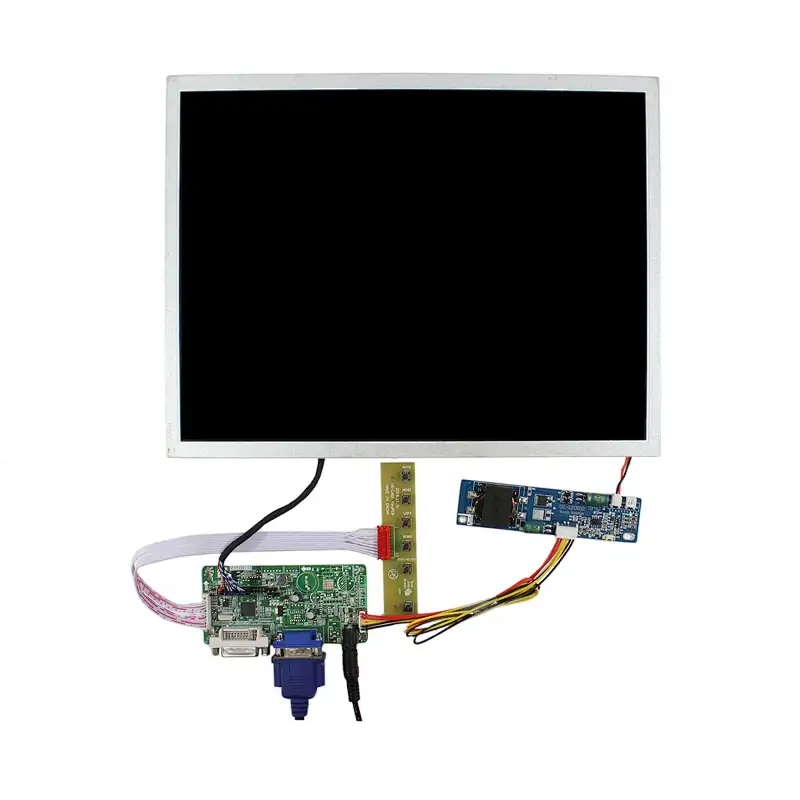

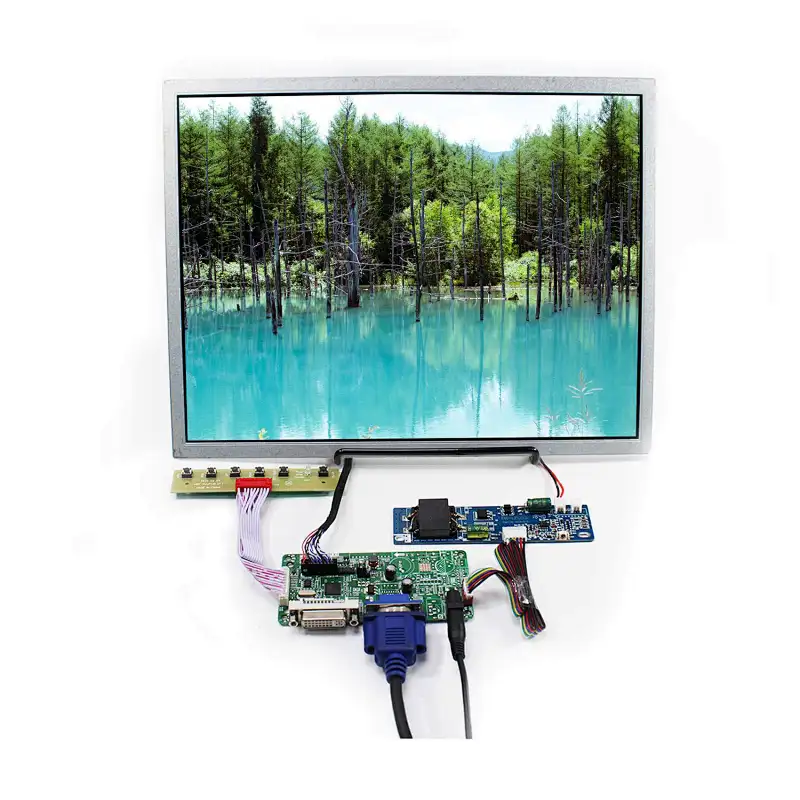

15.0" G150XGE-L04 1024X768 LCD Screen with DVI VGA LCD Board

Model NO.
K002673 RT2281+G150XGE-L04 1024X768 brightness 1000 nits
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1 piece
Supply Ability:
500 piece / Day
Country of Origin:
CHINA
Stock Time:
3 Days
Quantity:

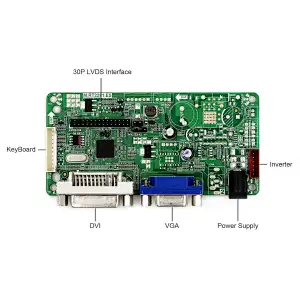

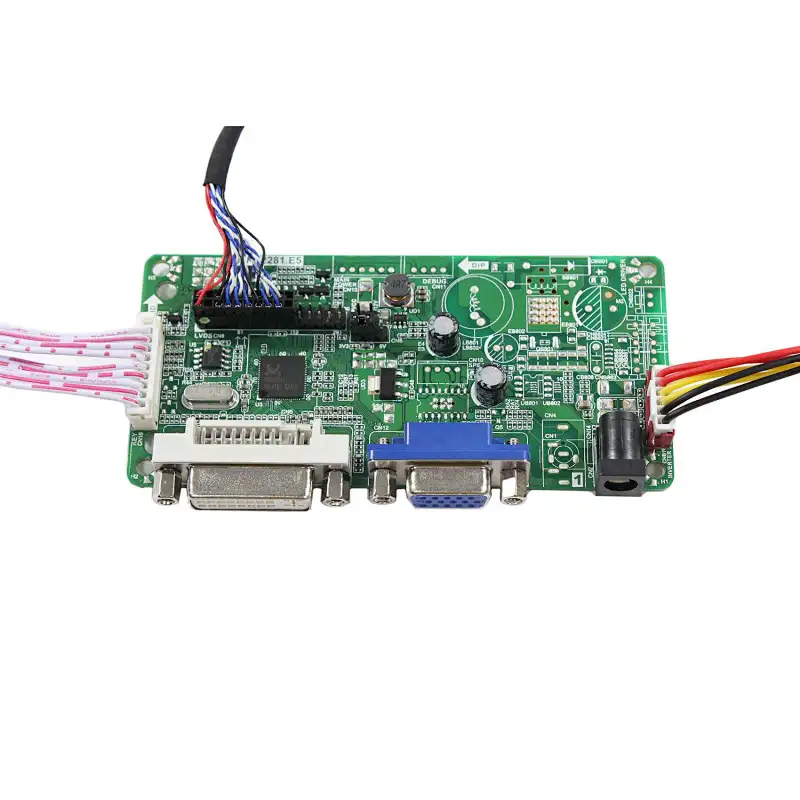

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
15.0"G150XGE-L04 1024X768 1000nit LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 326.5×253.5×12(W×H×D)
Display Area 304.128 ×228.096(W×H)
Brightness 1000 cd/m²(Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1× VGA+DVI LCD Controller Board RT2281
1×15.0"G150XGE-L04 1024X768 1000nit LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
