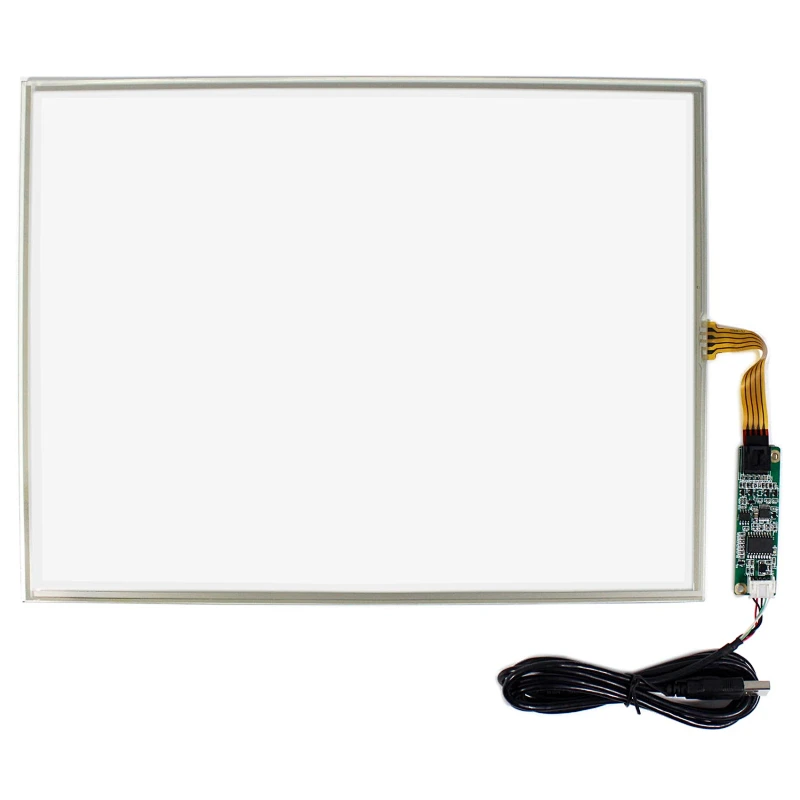

15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card
15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card

15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1 with USB Controller card

Model NO.
K000019 VS151TP-A1
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Supply Ability
1000 piece / Day
Country of Origin
CHINA
Stock Time
3-7days Days
Quantity:

Description:

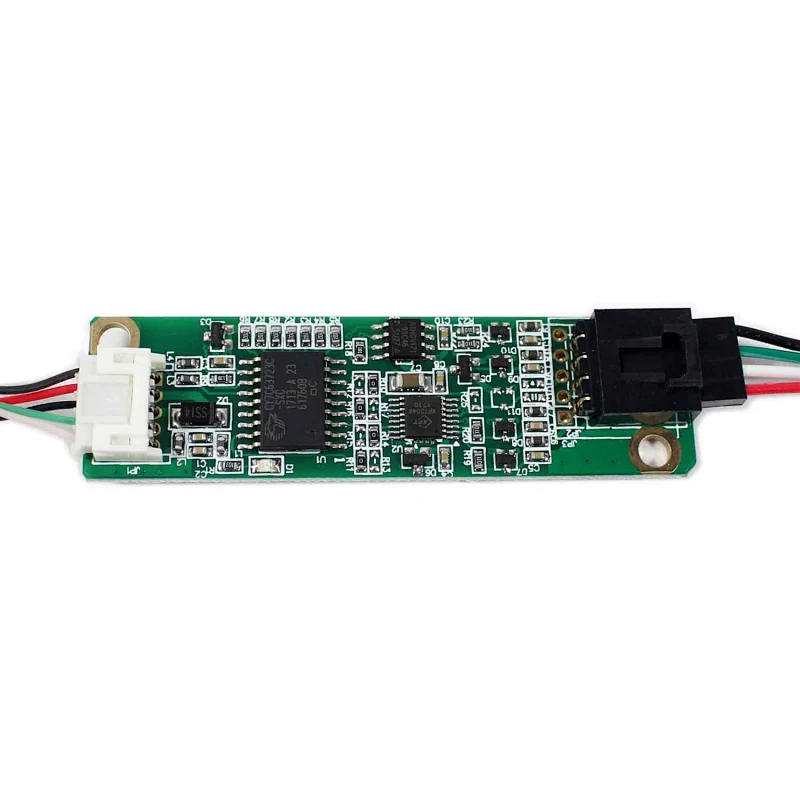

USB Type Controller

Dimension Size: 71mm x 20mm x 10mm

Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)

Operating Temperature 0 to 50°C

Storage Temperature -40 to 80°C

Relative Humidity 95% at 60°C

Interface USB 1.1 & 2.0

Resolution 2048×2048 resolution

Report rate USB Model: Max. 160 points/sec

Response time Max. 20 ms

Attached Cable 6' shielded cable with USB-A connector for USB port

Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices

EMI Unaffected by environmental EMI

Panel resistance 4 wire resistive model: 200 ~ 900 ohm

MTBF 200,000 hrs

PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+

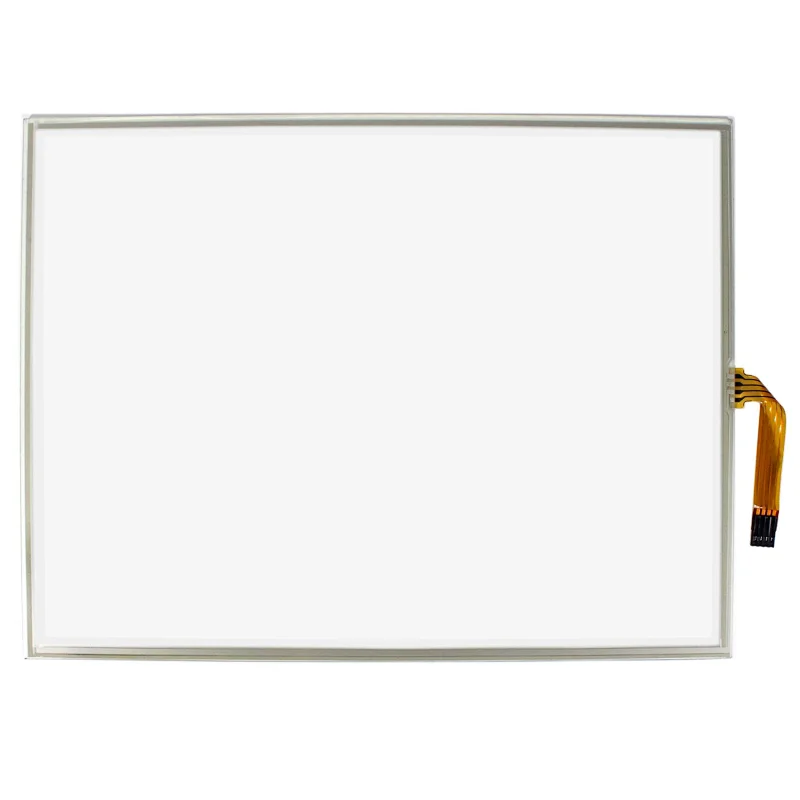

Touch Panel

Dimension Size: 321mm x 246mm

Display Area: 303mm x 227mm

FPC connector: 4pin 0.5mm pitch bottom contact.

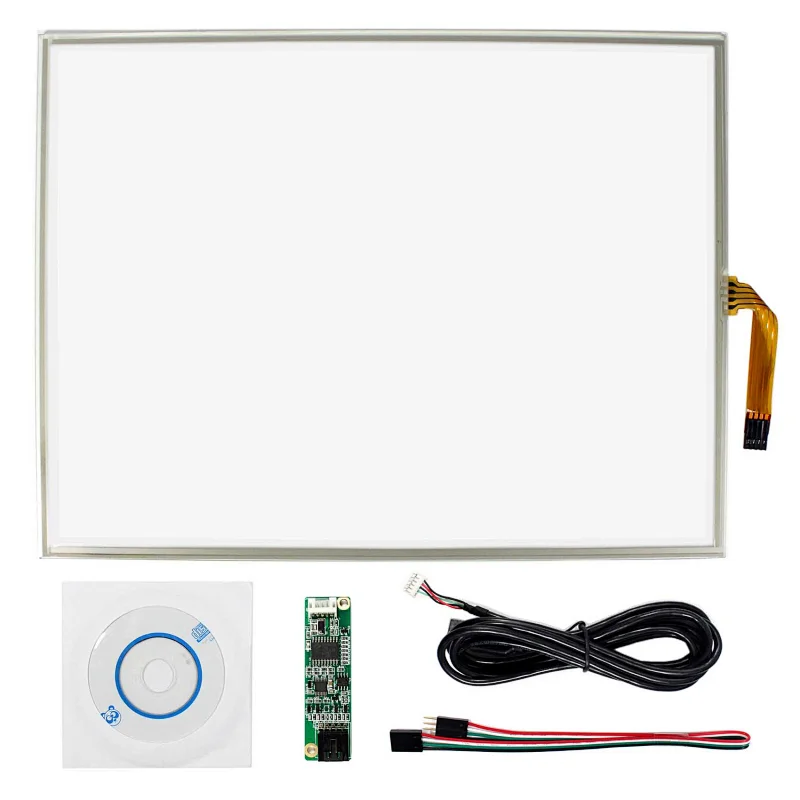

Packing list :

1× 15.1inch 4-Wire Resistive Touch Panel Screen VS151TP-A1

1× 4-Wire USB Controller Card

1× USB Cable

1× Converter Cable

1× CD (Driver for touch control card Support LINUX Windows CE XP and Win7)
