  5. 15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
Print This Page
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01

15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board 15.4inch B154PW01 LP154WP1 N154C3 B154PW01

Model NO.
K000367-VS-TY2662-V1+FIX-30P 2ch 6bit+15.4inch 1440x900
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

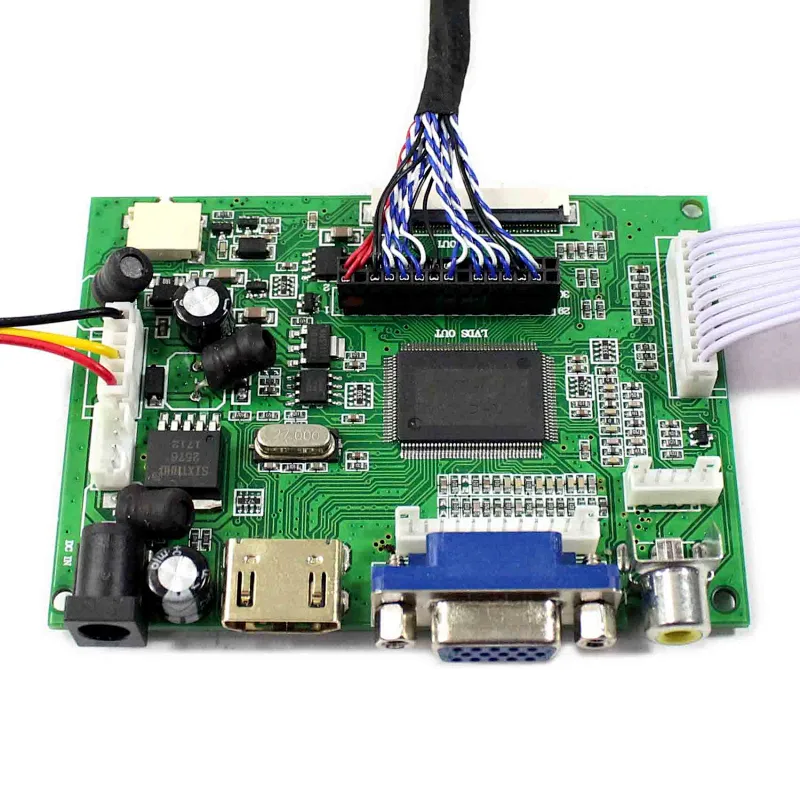

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm

15.4"1440X900 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1440RGB)×900
Outline Size 344 × 242.5× 6(H×V×D)
Display Area 331.56× 207.225 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 6-bit) , Connector , 30 pins
Backlight  CCFL
Input Voltage  3.3V (Typ.)

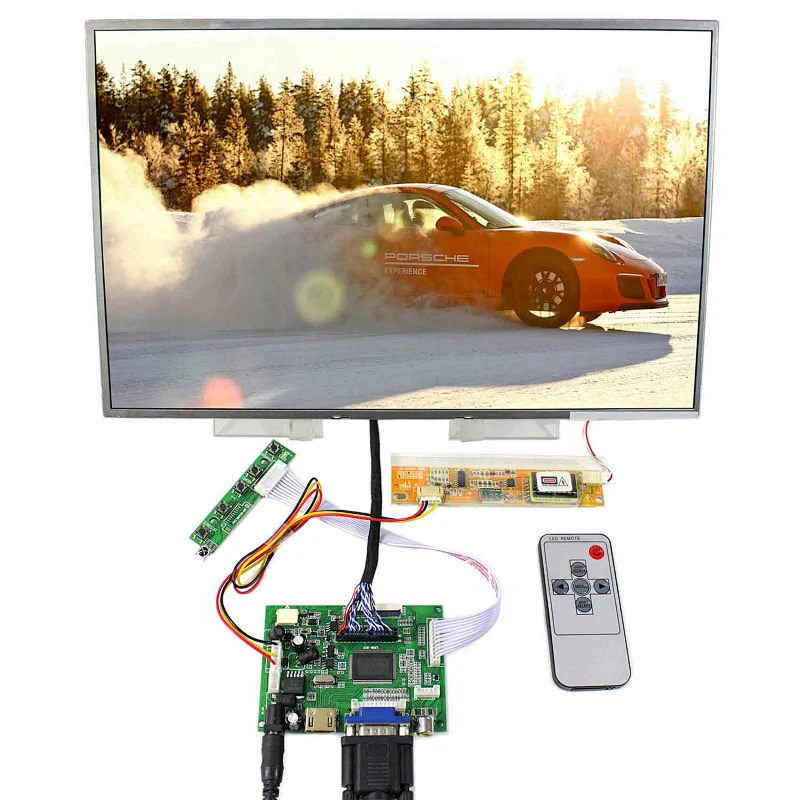

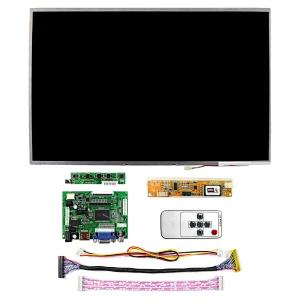

Packing list :
1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
1x 15.4inch 1440x900 LCD Screen (One of These Model No CLAA154WP05 B154PW01 B154PW02 N154C1 N154C3 LP154WP1 LTN154BT05)

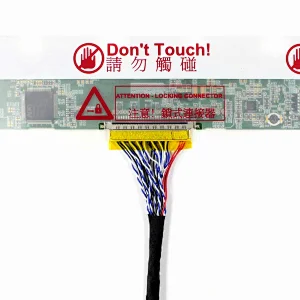

1× LVDS Cable
1× Inverter Board
1× Keyboard With Cable
1× Remote Control (Battery Not included)
