15.6" G156HTN02.1 1920X1080 LCD Screen with DVI VGA LCD Board

Model NO.
K002679-RT2281+G156HTN02.1 1920X1080 brightness1000 nits
Delivery
EXW or FOB Shenzhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7days Days
Quantity:
LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

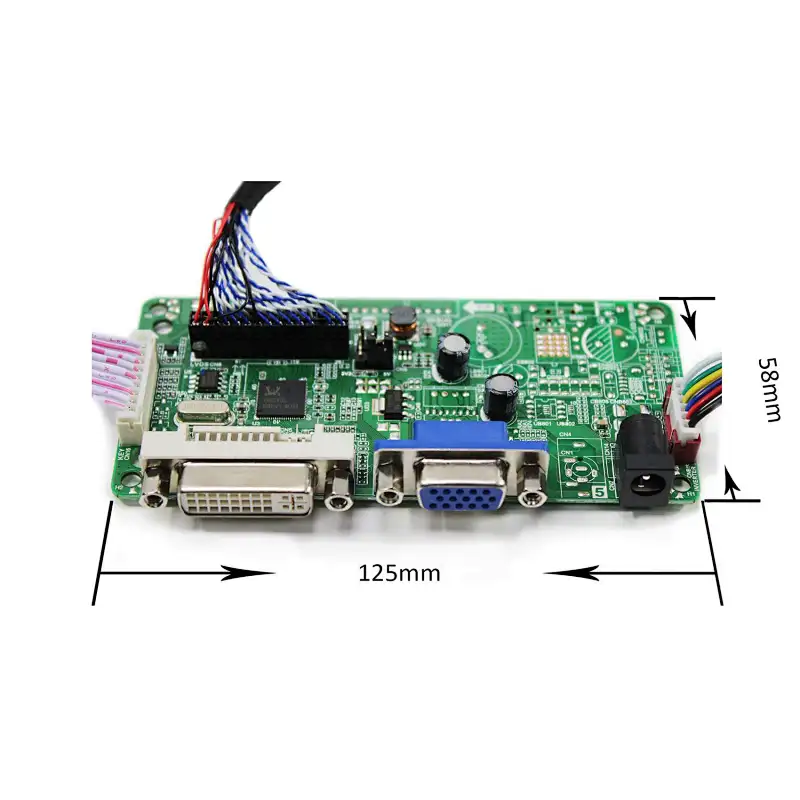

Board Size: 125mm x 58mm x 17mm
15.6"G156HTN02.1 1000nit 1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI
Outline Size 363.8(W)×215.9(H)×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness 1000 cd/m²(Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)

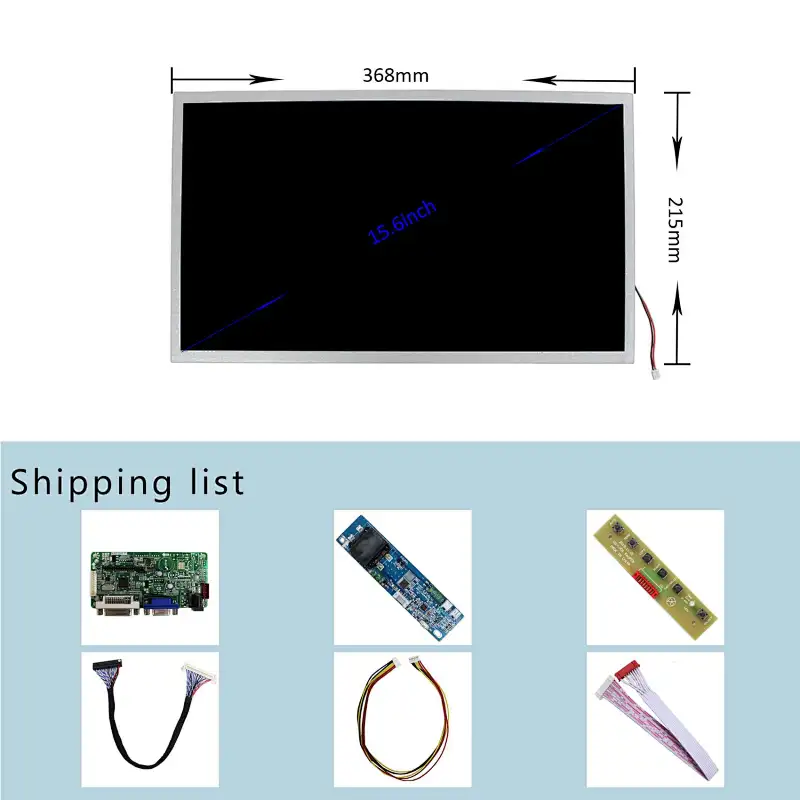

Packing list:
1× VGA+DVI LCD Controller Board RT2281
1×15.6"G156HTN02.1 1000nit 1920X1080 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
