15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF
15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF

15.6inch B156HAN01.2 1920X1080 IPS LCD Screen with Driver Board HDM I VGA AV USB RF

Model NO.
K001563-VST056+B156HAN01.2
Quantity:

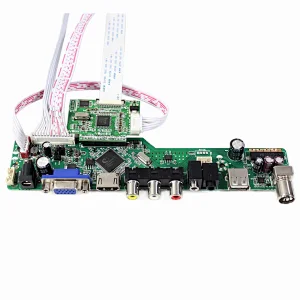

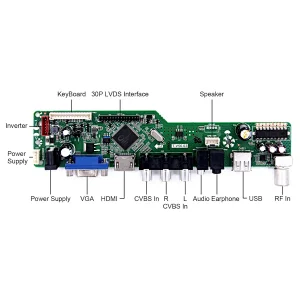

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:188mm x 43mm x 17mm
15.6"LCD Screen B156HAN01.2:
Display Mode N, ADS, Normally Black, Transmissive

Resolution 1920RGB)×1080
Outline Size 359.5 × 223.8 × 3 (H×V×D)
Display Area 344.16 × 193.59 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)

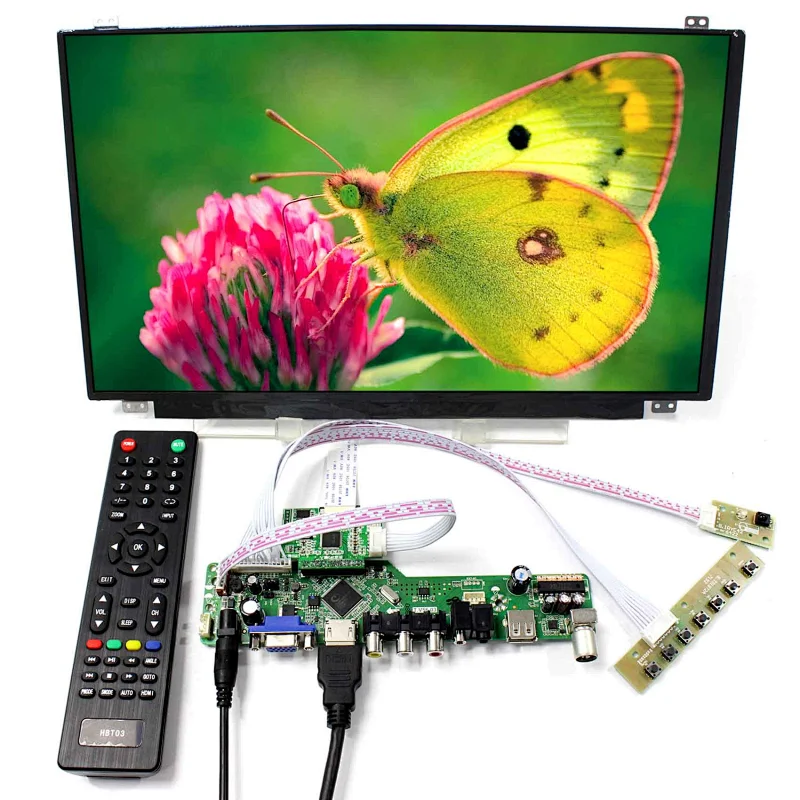

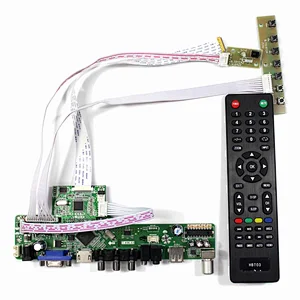

Packing list :
1× HDMI VGA AV USB RF LCD Controller Board T.V56.03

1× 15.6inch B156HAN01.2 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
