Model NO.
K002722-VS-TY2660HU-823+DV150X0M-N10 1024x768
Quantity:
LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

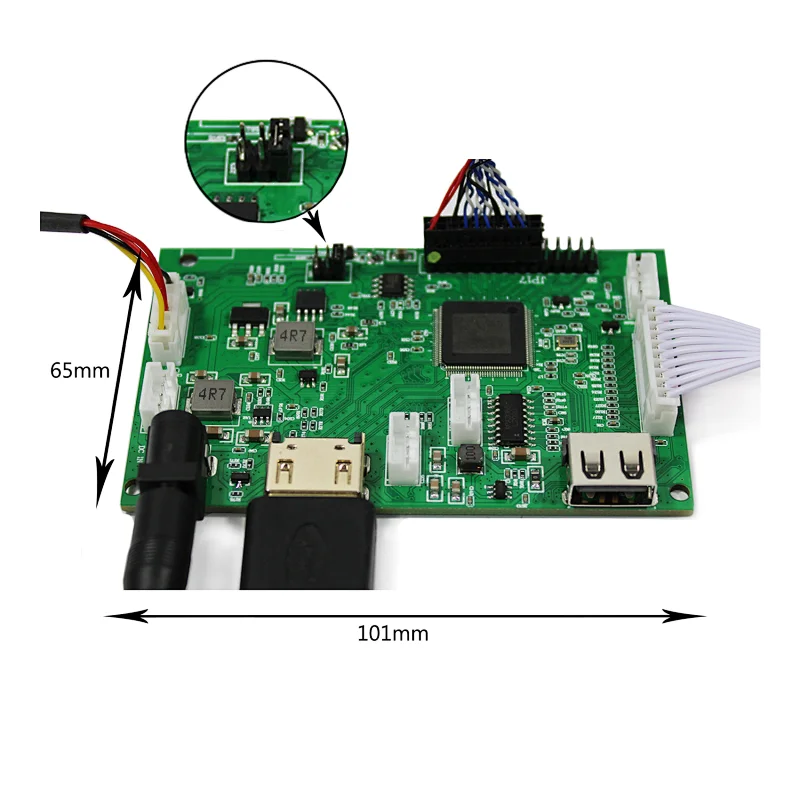

Board Size: 90mm x 51mm x 14mm
15"DV150X0M-N10 1024x768 LCD Screen:
Pixel Format 1024(RGB)×768  [XGA]  85PPI
Outline Size 326.5(H)×253.5(V) ×9.7(D) mm
Bezel Area 306.5(H)×230.1(V) m
Brightness350 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Signal Interface 20 pins LVDS (1 ch, 8-bit)
Backlight  WLED  [12S4P] , 50K hours , With LED Driver
Input Voltage 3.3V (Typ.)

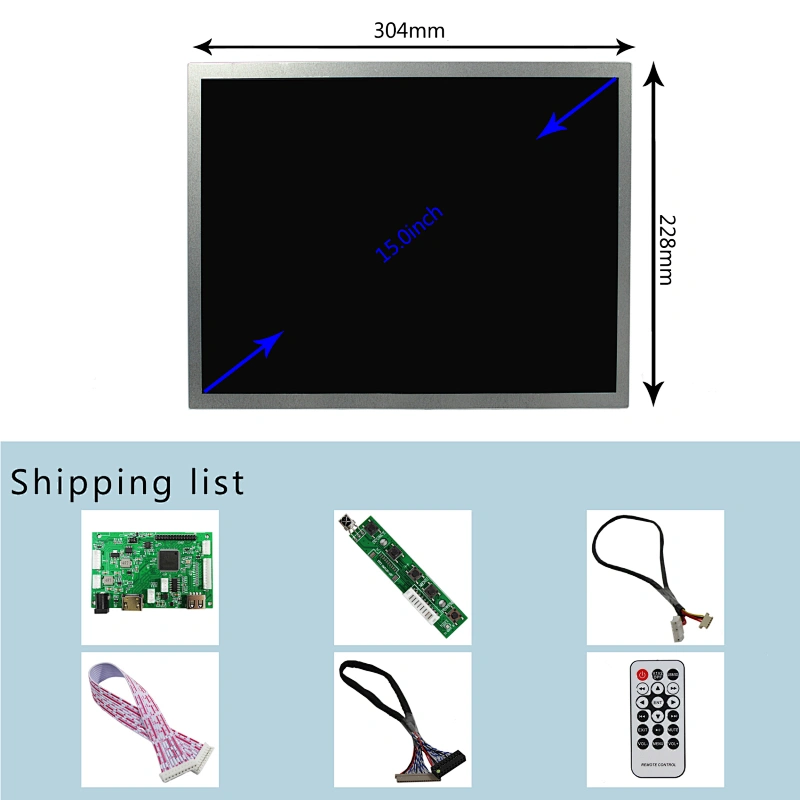

Packing list:
1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1×15"DV150X0M-N10 1024x768 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
