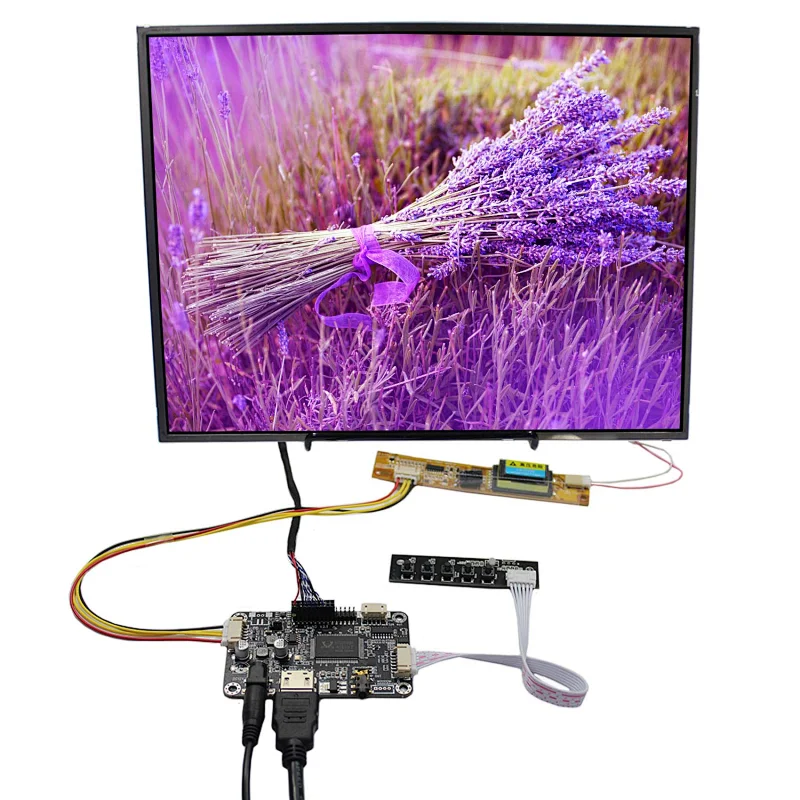

15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board
15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board

15inch 1024X768 TFT-LCD Screen with HDMI Audio LCD Controller Board

Model NO.
K002764-VS-N5V3.1H+15inch 1024x768
Quantity:
LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

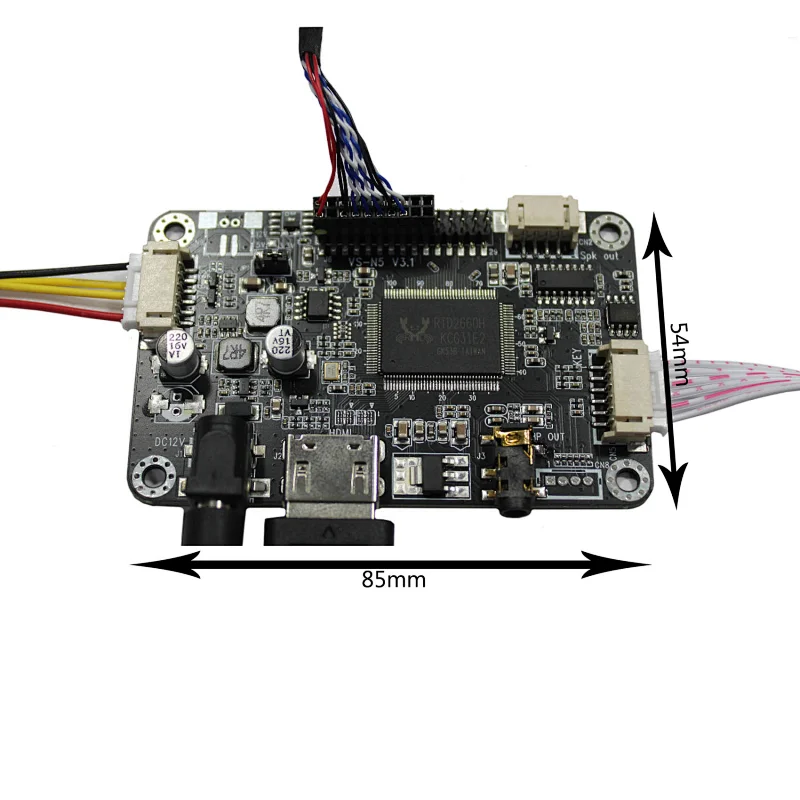

Board Size: 85mm x 54mm x 14mm
15"1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 317.3 × 241.5× 6(H×V×D)
Display Area 304.128× 228.096 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 350:1 (Typ.) (TM)
Viewing Angle 45/45/60/50 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

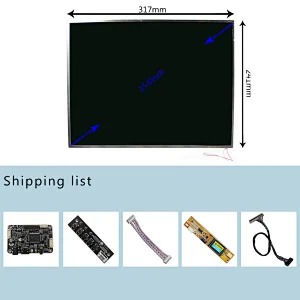

Packing list :
1× HDMI Audio LCD Controller Board
1× 15inch 1024X768 LCD Screen (One of these Mode No LP150X09 LP150XG08 LTN150XB B150XG01 B150XG02 B150XG03 B150XG05 B150XG09 N150XB QD15XL06)
1× Converter Board

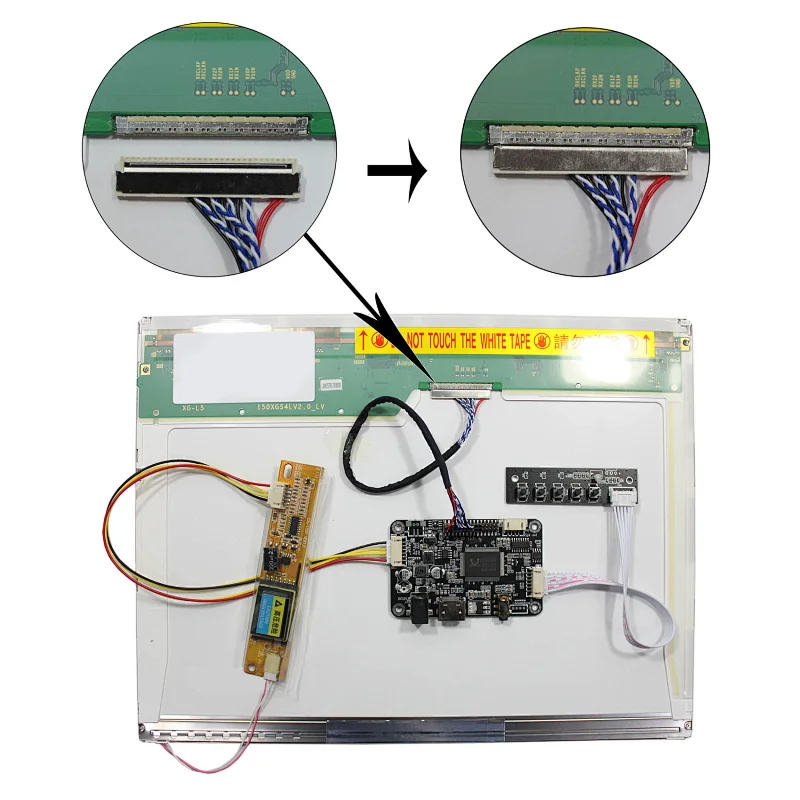

1× LVDS Cable
1× Keyboard With Cable
