15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board
15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board

15inch LQ150X1LW94 1024X768 LCD Screen with HDMI LCD Controller Board

Model NO.
K002816-VS-TY2660HU-823+DF14+15 LQ150X1LW94
Quantity:
LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HDMI: Support HDMI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm

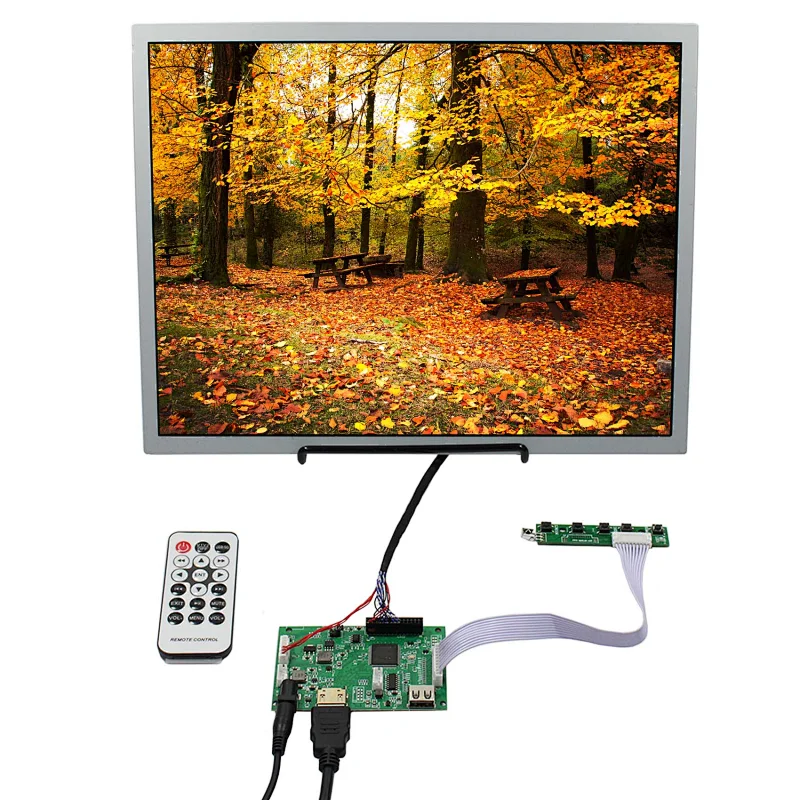

15" LQ150X1LW94 1024X768 LCD Screen:
Display Mode  ASV, Normally Black, Transmissive
Resolution1024RGB)×768
Outline Size 326.5×253.5×10(H×V×D)
Display Area 304.1×228.1 (H×V)
Brightness300 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

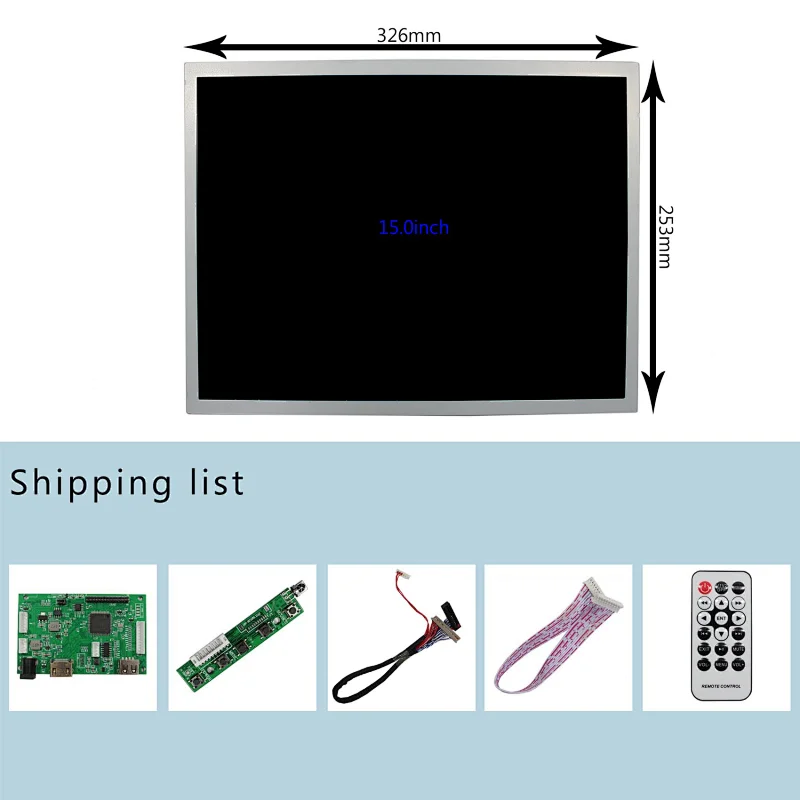

Packing list :
1× HDMI LCD Board for 30Pin VS-TY2660HU-823
1× 15inch LQ150X1LW94 1024X768 LCD Screen

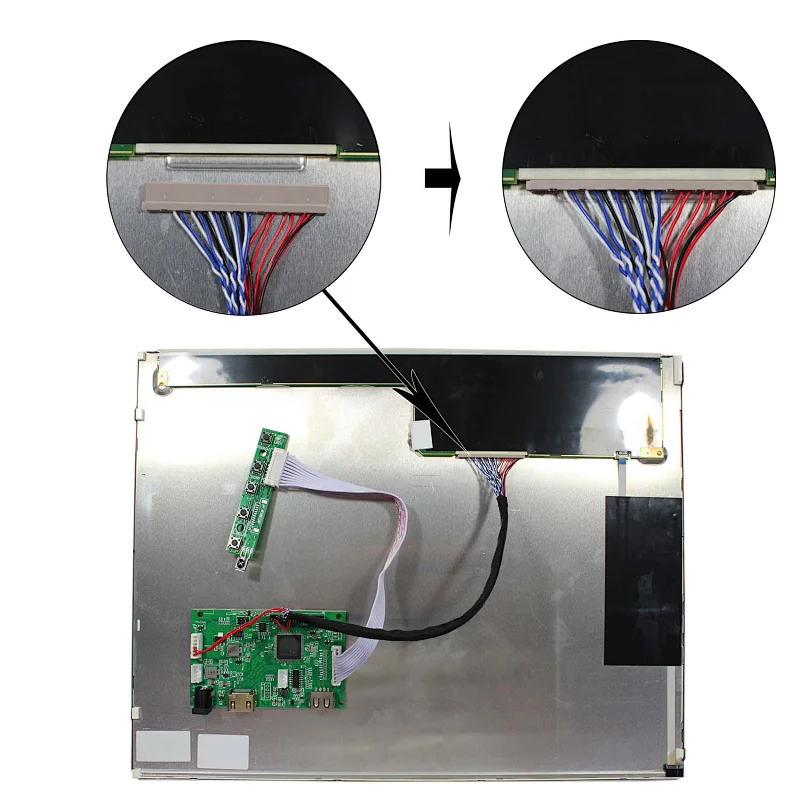

1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
