Model NO.: K002280-VS-RTD2556HC30-V1 30pin+N173HCE-E31 1920X1080
Delivery: EXW or FOB ShenZhen
Minimum order quantity: 1 piece
Country of Origin: CHINA
Stock Time: 3-7 Days

Quantity:

Product Description

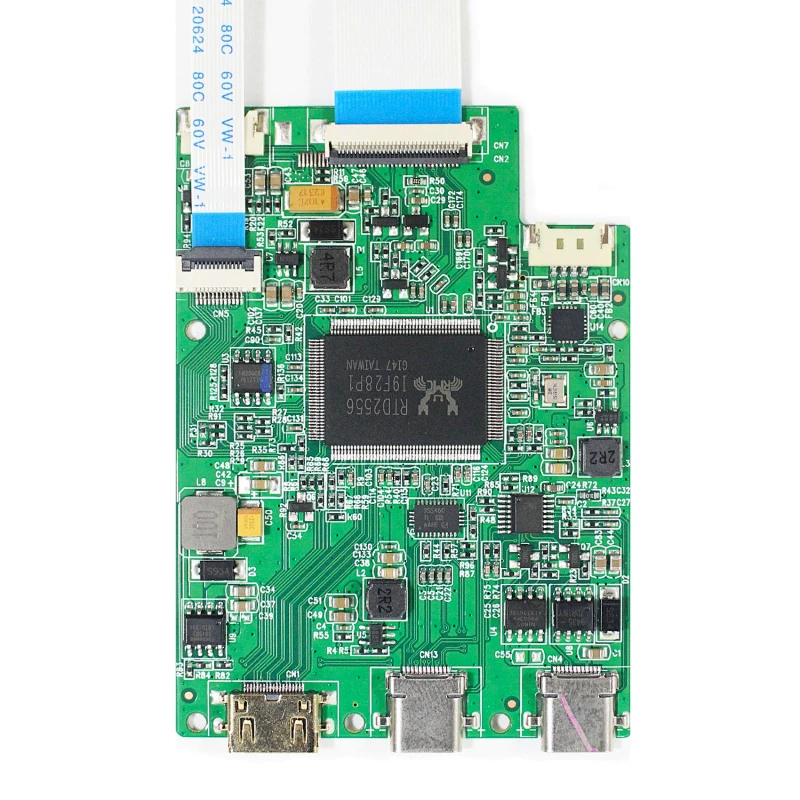

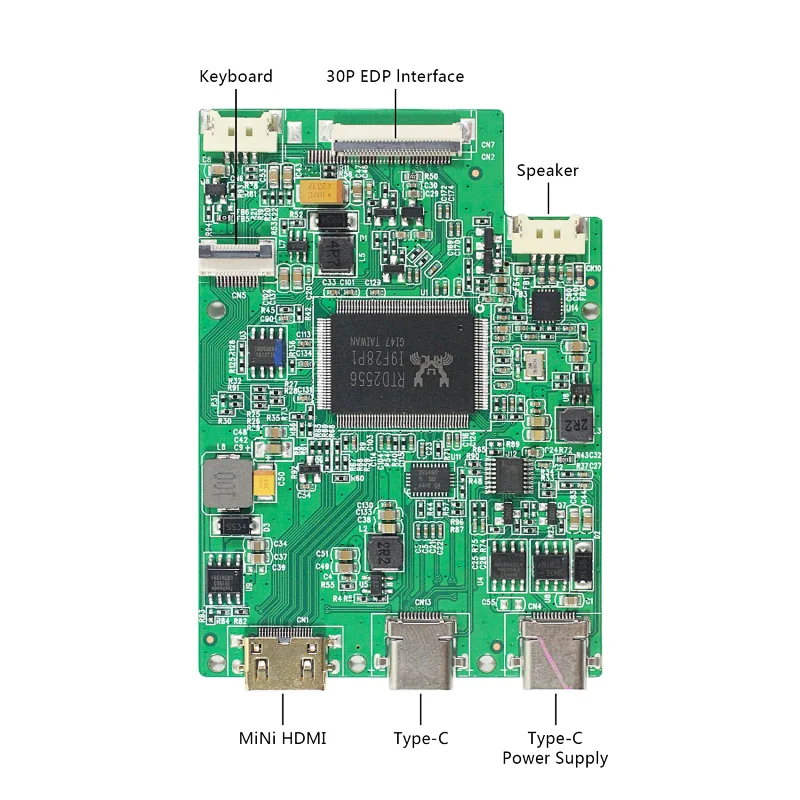

LCD Controller Board:

HDMI Type C Control Board Work for 30Pin EDP LCD Screen
Input Power Adapter: HDMIType-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Audio Speaker
Standby Model <0.3W
Input: Type-C Mini HDMI
Output:Type C USB (max 500mA)
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski Nederlands Korean Japanese
Board Size: 80mm x 51mm x 8mm

17.3"LCD Screen N173HCE-E31:
Display Mode AHVA, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 399.5(W)×230.45(H) ×4(D) mm
Display Area 381.88 (W)×214.81 (H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

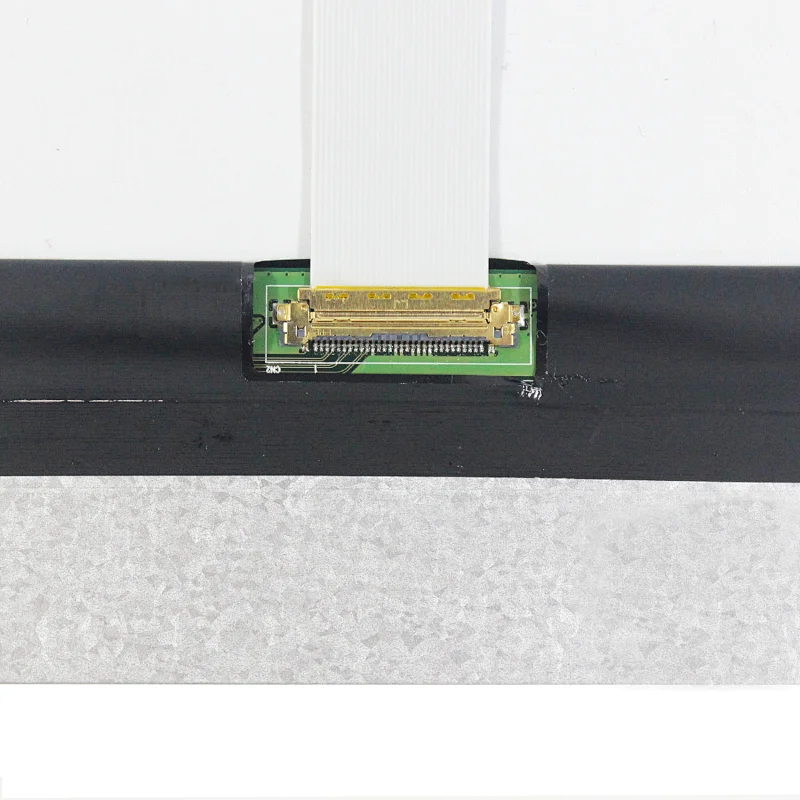

Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

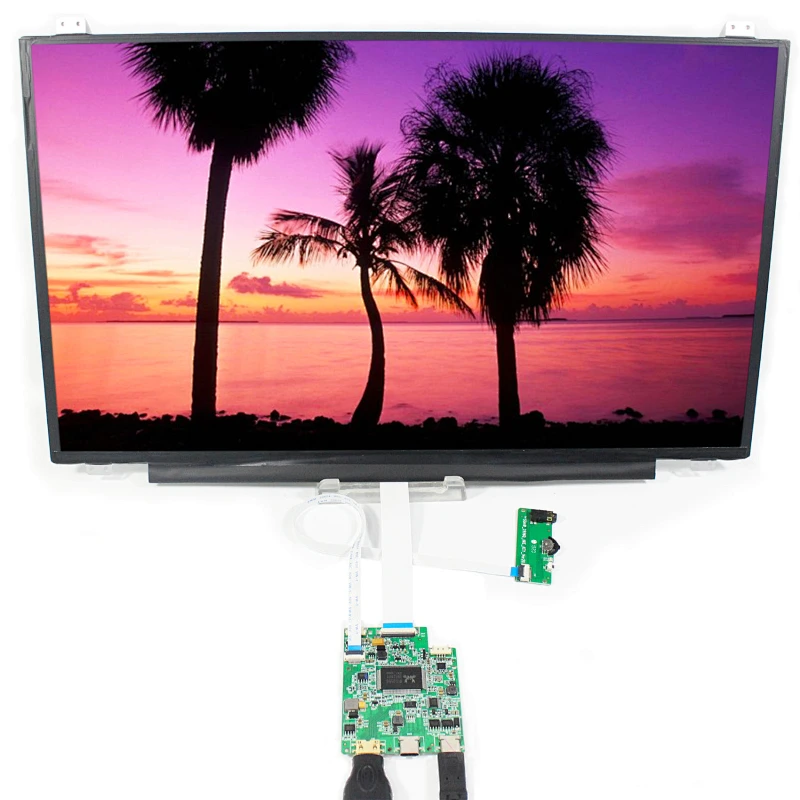

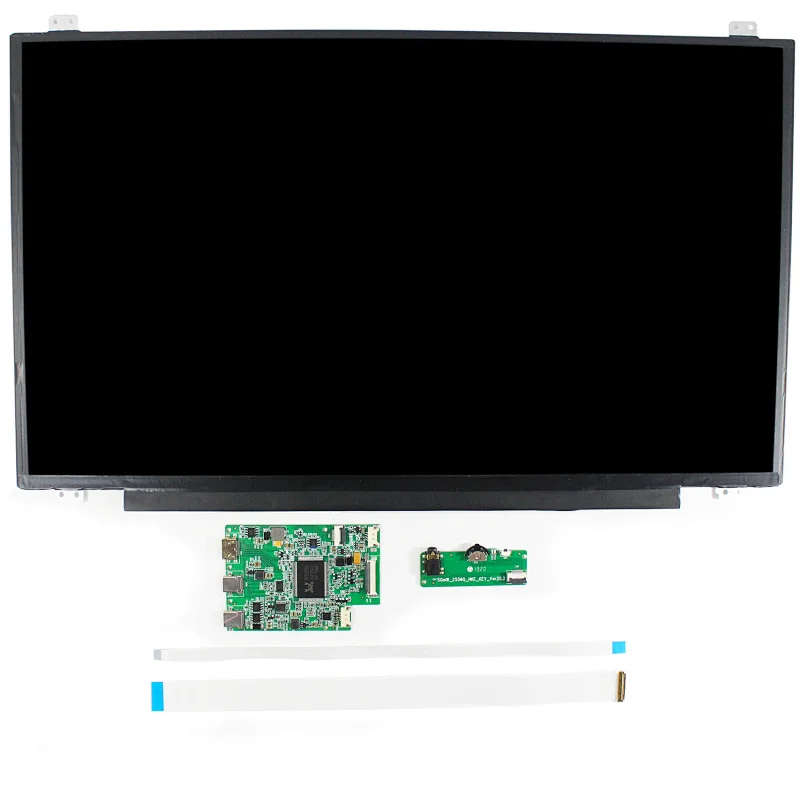

Packing list :
1× HDMI TYPE-C LCD Controller Board VS-RTD2556HC30-V1
1×17.3inch N173HCE-E31 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
