Model NO.
K001640-T.SK105A.03+A000078 17.1inch 1920x1200
Quantity:

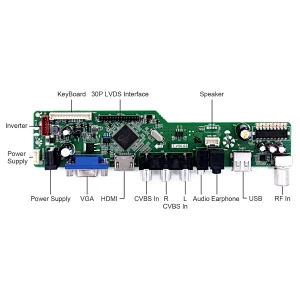

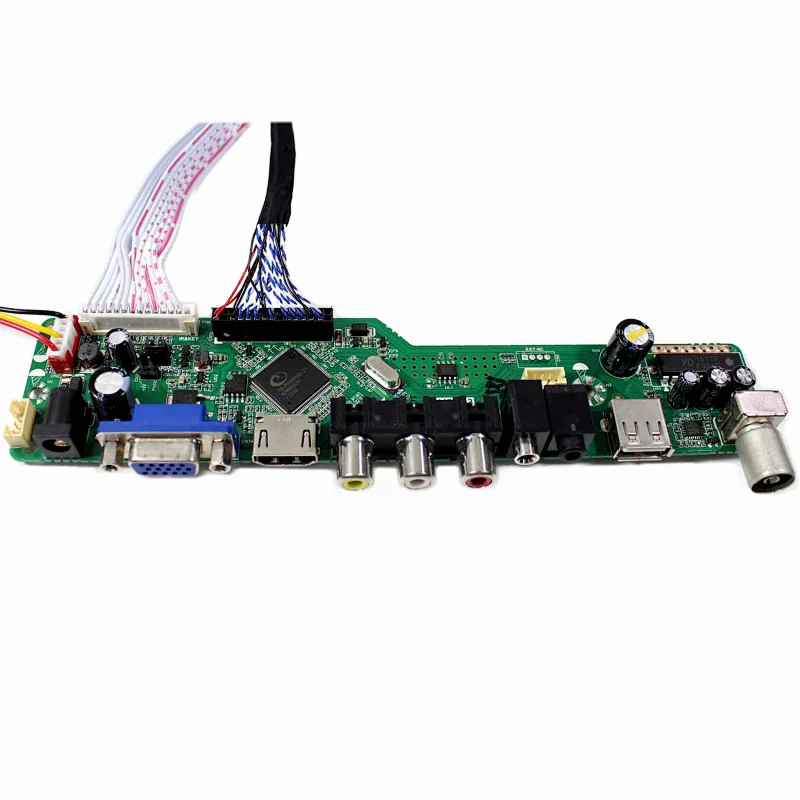

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 188mm x 43mm x 17mm
17" 1920X1200 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution1920RGB)×1200
Outline Size 382.2 ×243.3×6.6(H×V×D)
Display Area 367.2 × 233.5 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

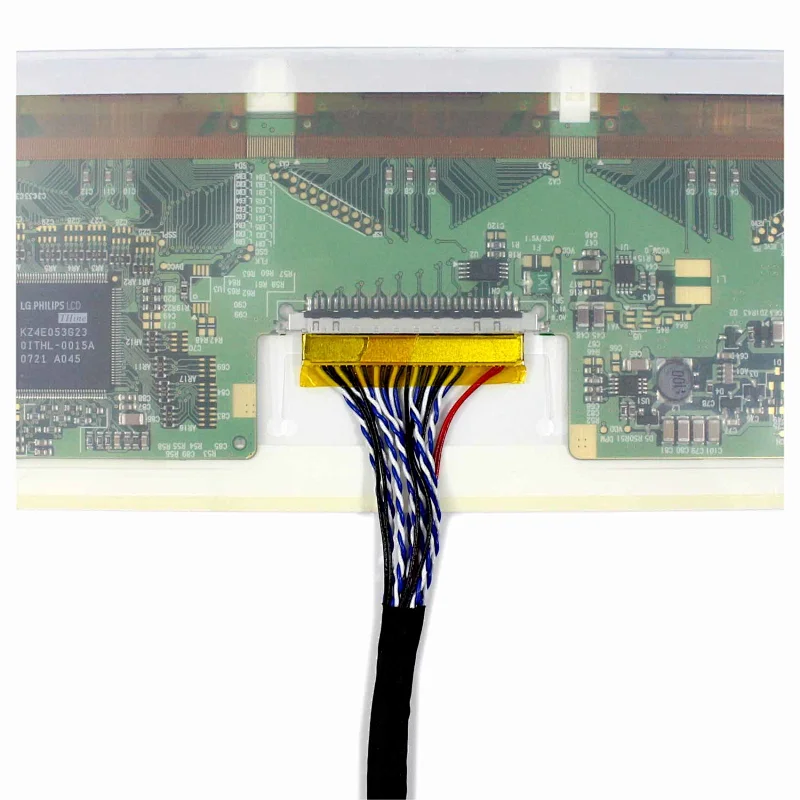

Signal Interface LVDS (2 ch, 6-bit) , Connector , 30 pins
Backlight  1 CCFL
Input Voltage 3.3V (Typ.)

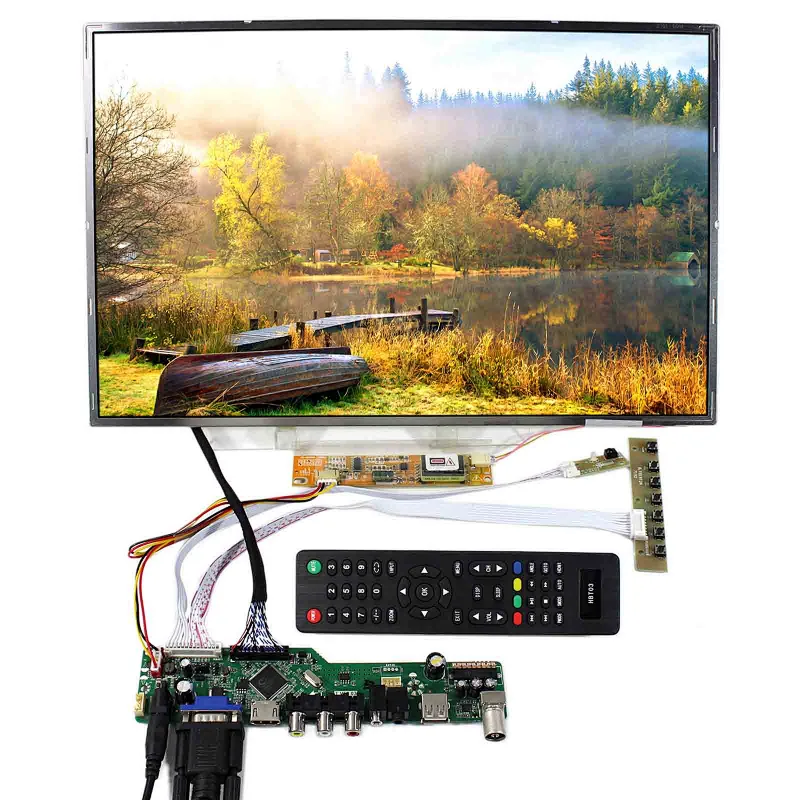

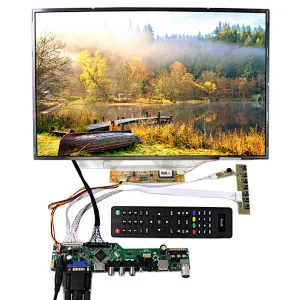

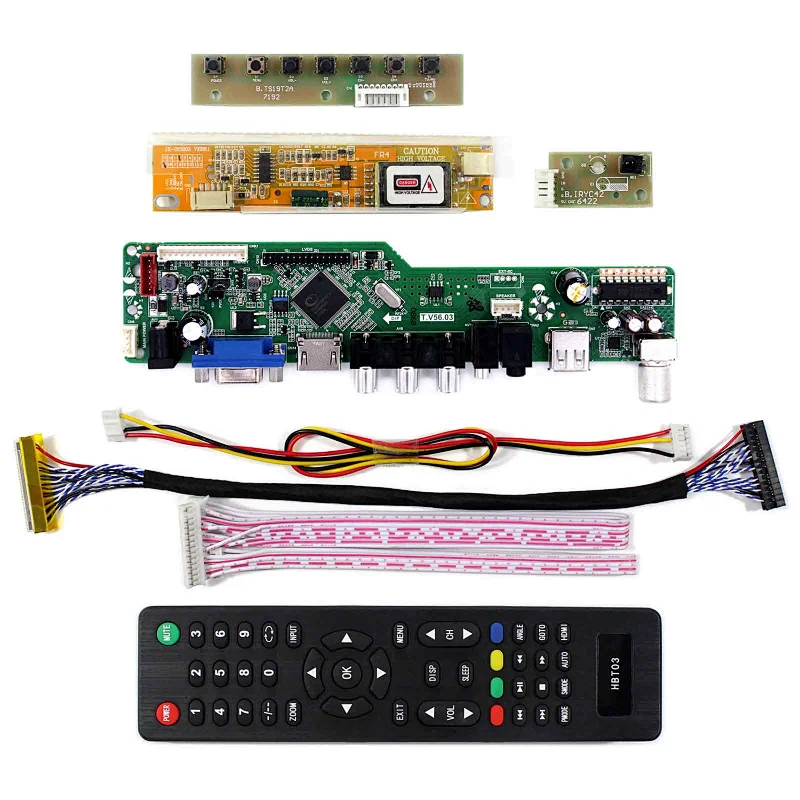

Packing list :
1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
1× 17inch 1920X1200 LCD Screen (One of LP171WU1 LP171WU2 LP171WU3 LTN170WU LTN170U1 LTN170U2 LTN170CT01 B170UW01 LTN170CT07)
 Inverter Board
 LVDS Cable
 Keyboard With Cable
1× Remote Control(Battery Not included)
