17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board
17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board

17inch LTN170TC10 LP171WU6 1920X1200 LCD Screen with HD-MI DVI VGA AUDIO LCD Board

Model NO.
K002006-M.NT68676+17inch 1920x1200 LTN170CT10 LP171WU6
Quantity:

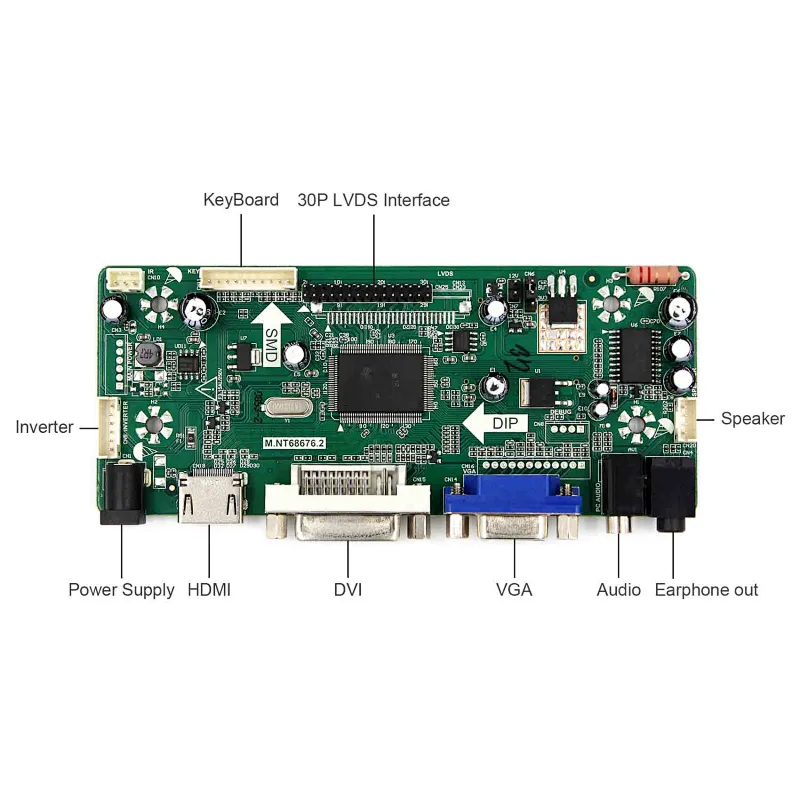

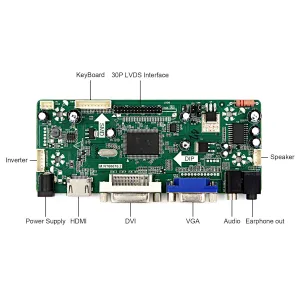

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
17"1920X1200 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920RGB)×1200
Outline Size 383.97 ×256.35×4.2 (H×V×D)
Display Area 367.2×229.5 (H×V)
Brightness 250 cd/m² (Typ.
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

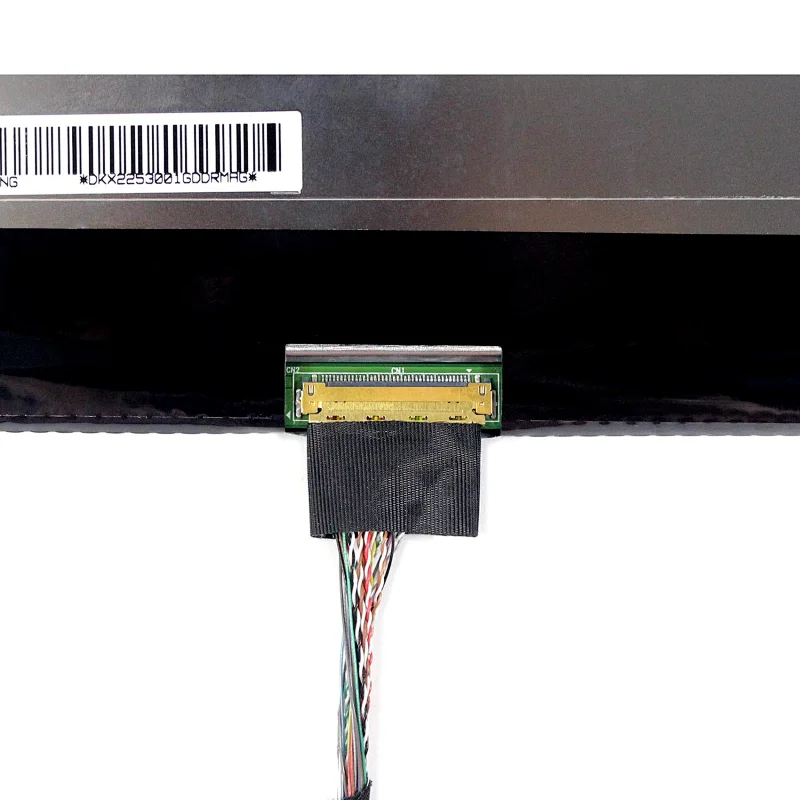

Signal Interface LVDS (2 ch, 6-bit) , 40 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

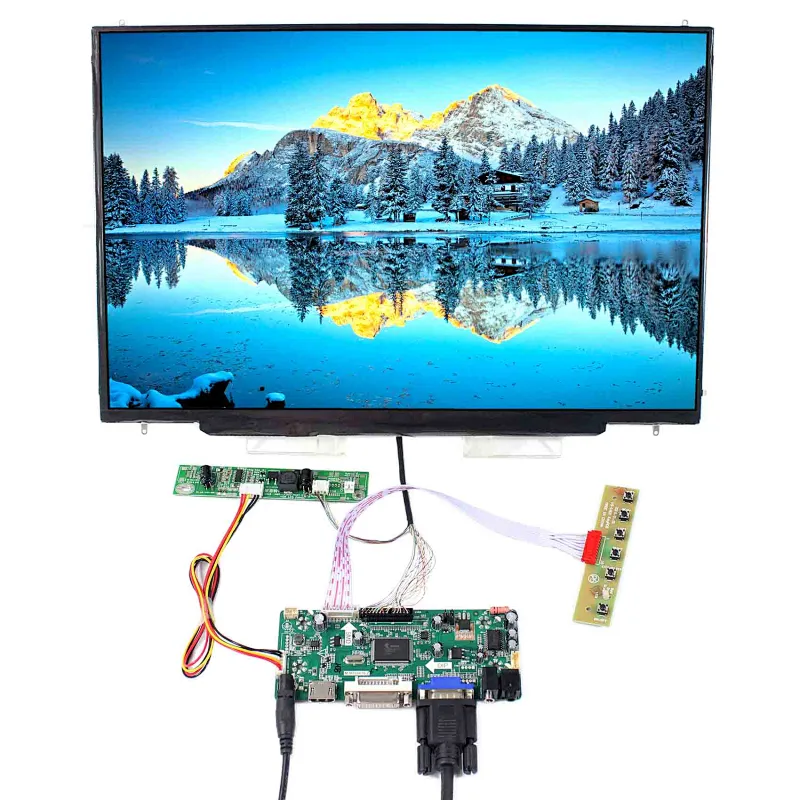

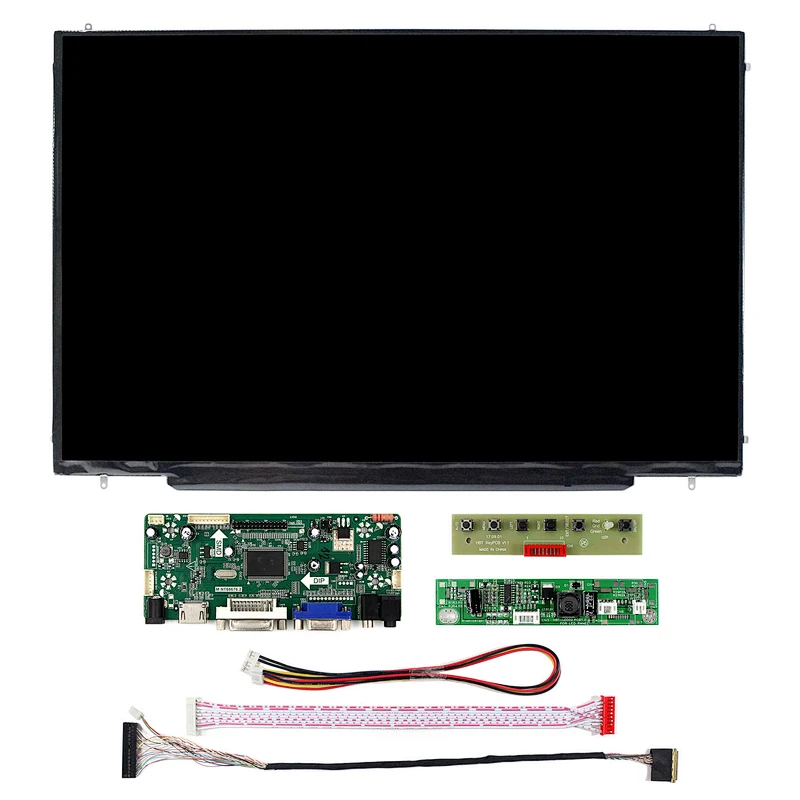

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
17inch LTN170TC10/LP171WU6 1920X1200LCD Screen
 Inverter Board
 LVDS Cable
 Keyboard With Cable
