Model NO.
K002365-VS-W58CDT9-AV7 +G190ETN01.0 1280x1024
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

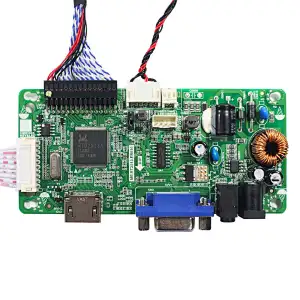

LCD Controller Board:
HDMI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 123mm x 63mm x 15mm

19"G190ETN01.0 1280X1024 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024
Outline Size 396×324 ×11.7(H×V×D)
Display Area 376.32×301.056 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

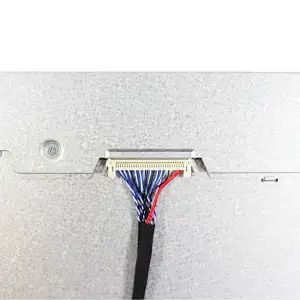

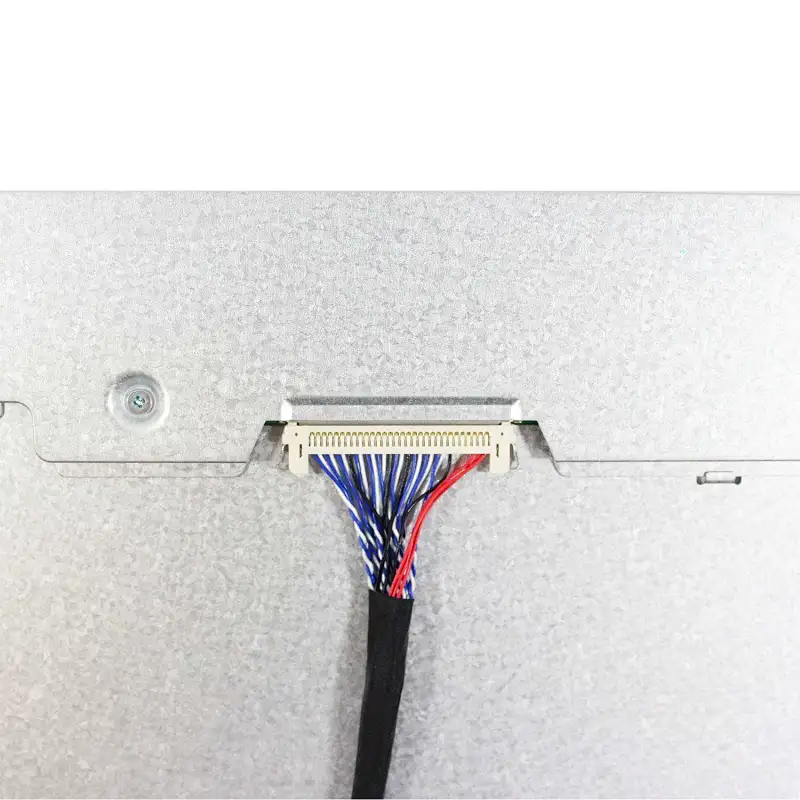

Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector 30Pins
Backlight  WLED
Input Voltage  5.0V (Typ.)

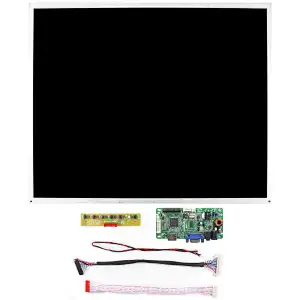

Packing list :
1× HDMI VGA LCD Controller Board VS-W58CDT9-AV7
1× 19inch G190ETN01.0 1280X1024 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
