19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd
19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd

19 inch M190CGE-L20 1440x900 LCD Screen with HDMI USB LCD Controller Board 19 inch M190CGE-L20 1440x900 M190CGE-L20 1440x900 M190CGE-L20 1440x900 lcd

Model NO.
K002900-VS-M5V4.1 HDMI +19inch 1440x900 M190CGE-L20
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

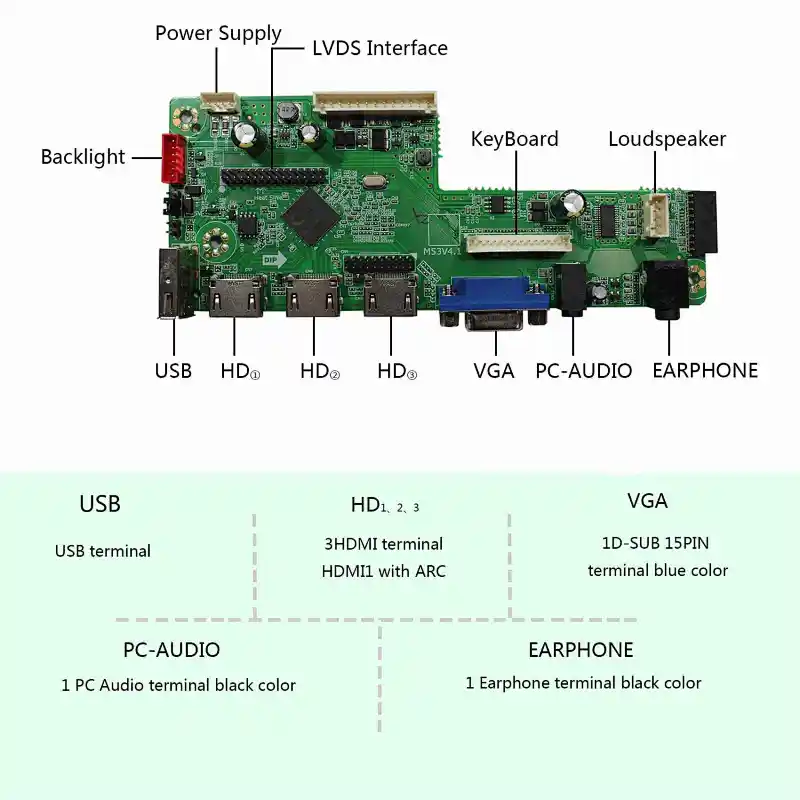

LCD Controller Board:
3X HD-MI VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI USB VGA
Audio Input: HD-MI
Audio Output: Speaker Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English Chinese French German Spanish Italian Russian Portuguese

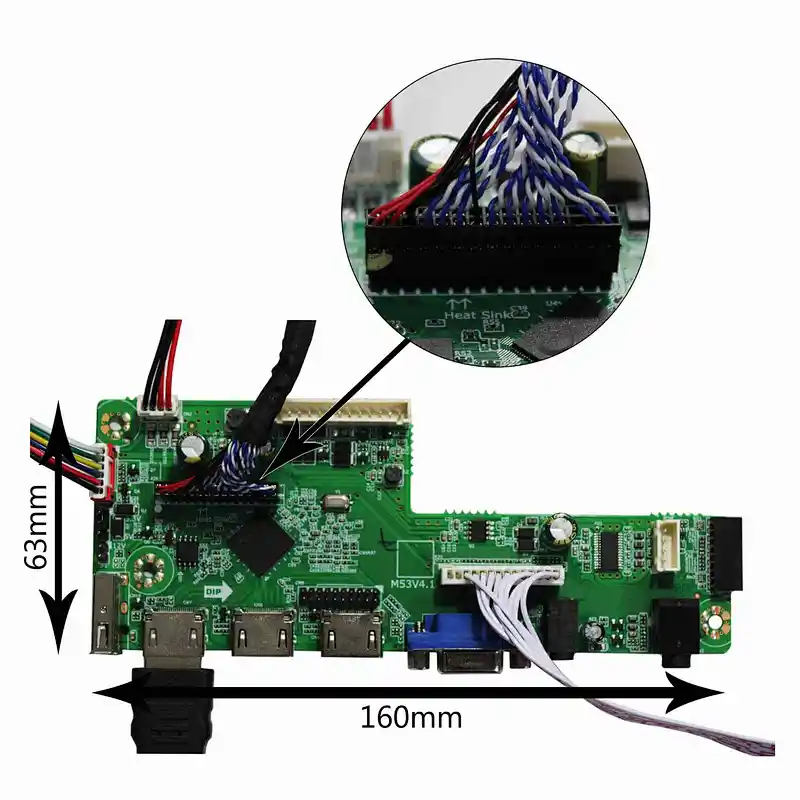

Board Size: 160mm x 63mm x 17mm

19" 1440X900 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1440RGB)×900
Outline Size 428 × 278×11 (H×V×D)
Display Area 408.2 × 255.1 (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) , 30 pins , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

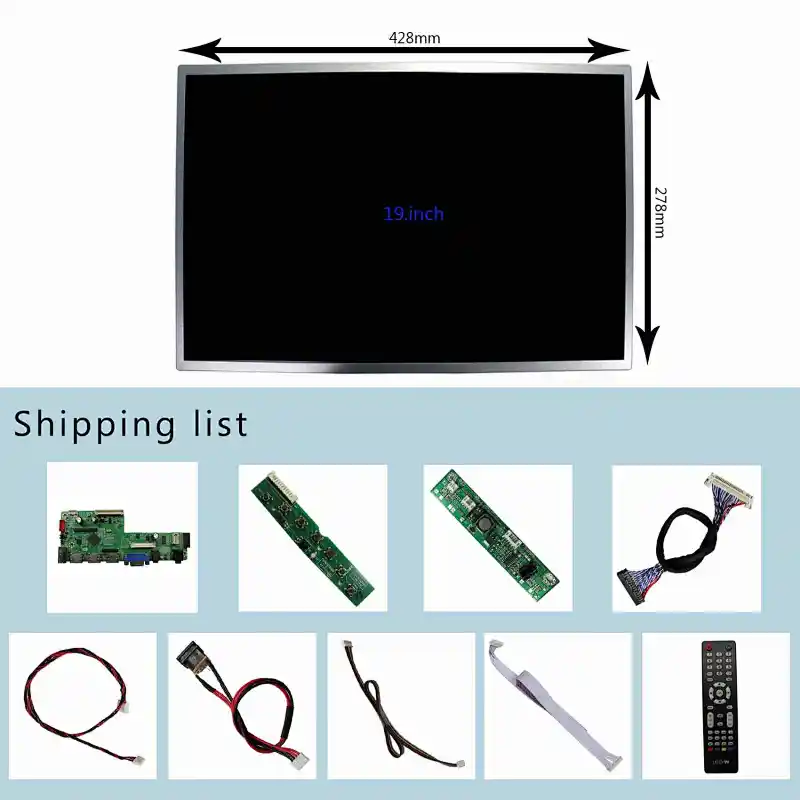

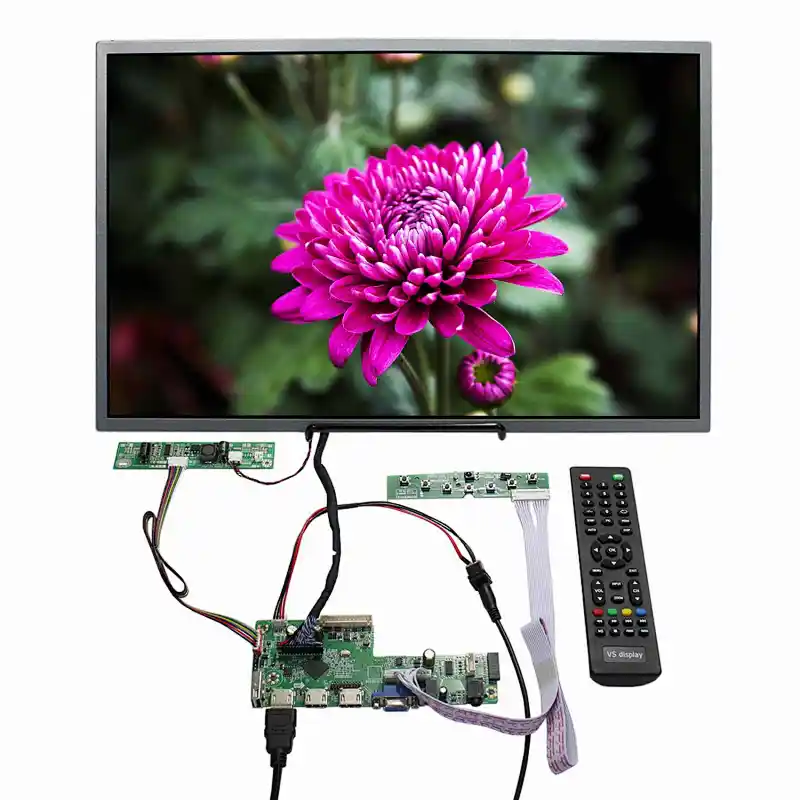

Packing list :
1× HD-MI USB VAG AUDIO LCD Board VS-M53V4.1
1×19inch 1440X900 LCD Screen

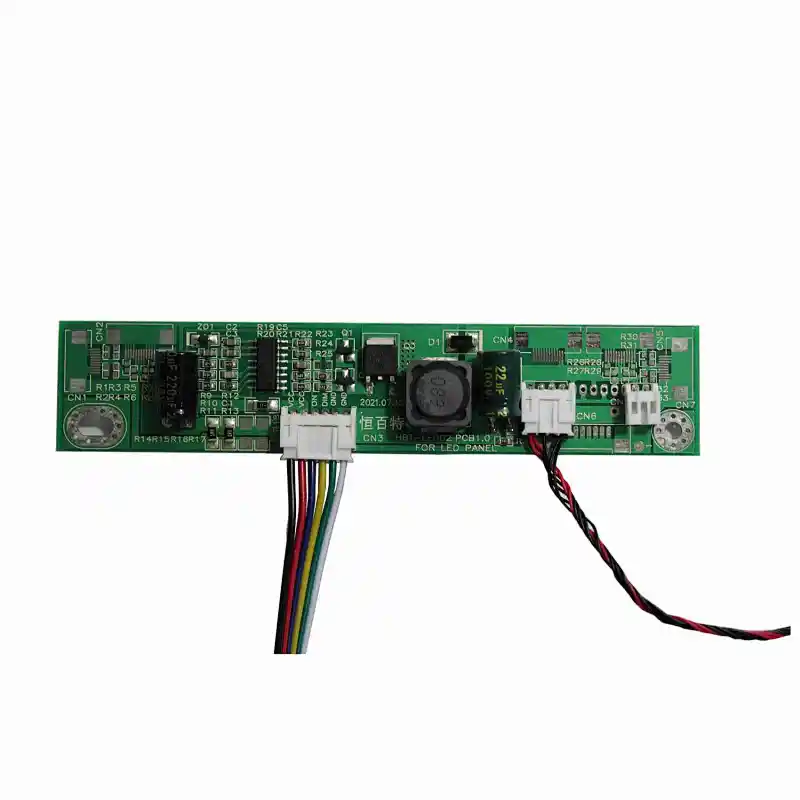

1× Inverter Board

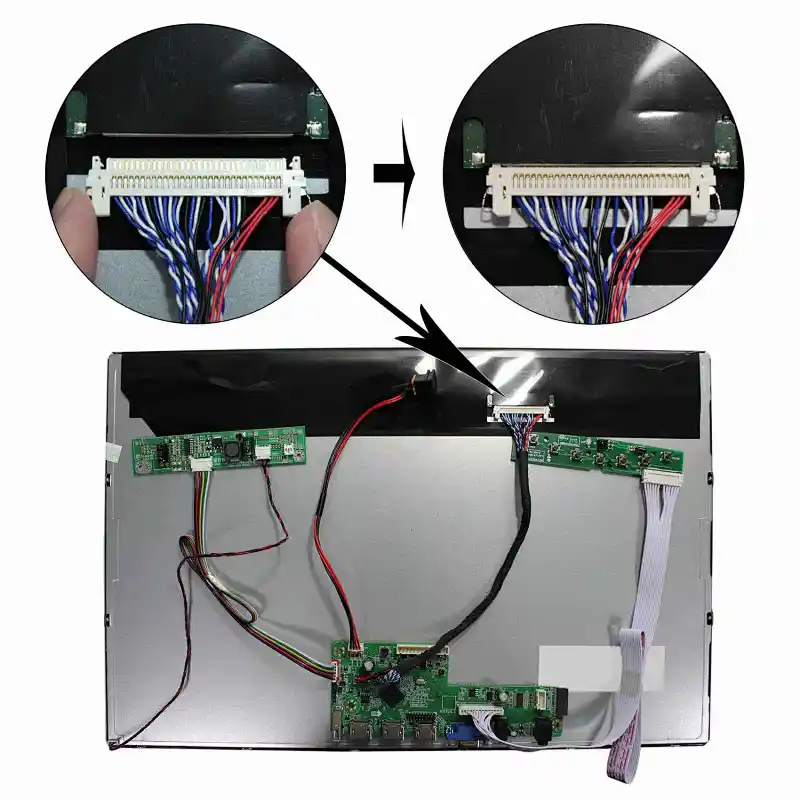

1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)


Send Message

* clear input
*

Related Products

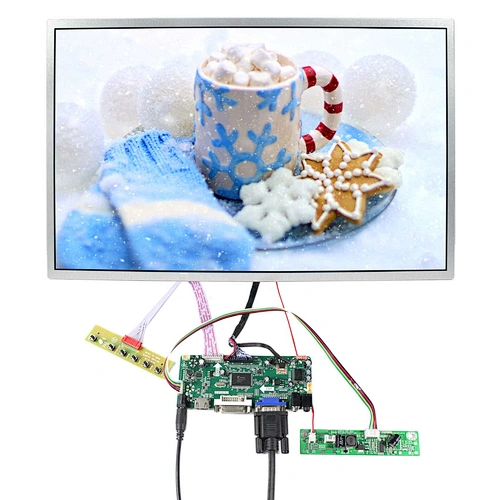

LCD Screen for 19inch M190CGE 1440X900 with HDMI DVI VGA AUDIO LCD Board Work for game
